Product Description

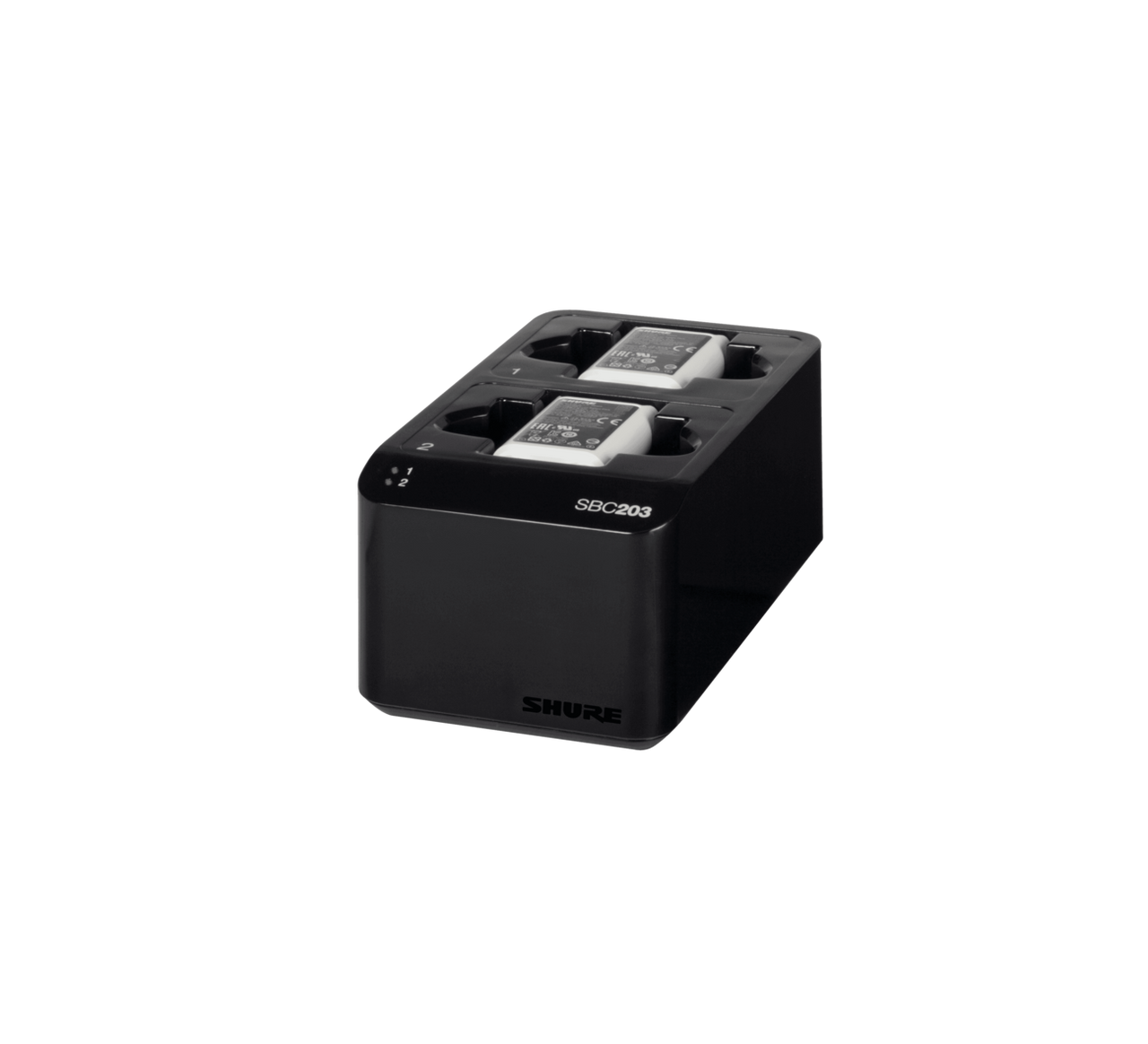

Shure SBC203-US Dual Docking Recharging Station for SB903 Lithium-Ion Battery
Dual docking recharging station charges two SB903 lithium-ion batteries in or out of their transmitters. Built to charge two batteries, two body pack transmitters, two handheld transmitters or any pairing of two SLX-D transmitters or SB903 batteries.
Features
- Charge up to two SB903 batteries or compatible transmitters
- Securely connect multiple chargers
- LED icons for battery status
Included Components
- SBC203 Charger
- 15W USB Power Supply
- USB-C cable
- Bottom plate and screws (4) for attaching additional units
Specs
- Charge Current
- 625 mA or 250 mA
- Lower current used when using another power source, or operating between 0℃ and 10℃
- Charge Time
- 50% = 1 hour : 15 minutes; 100% = 2 hours : 30 minutes
- External Power Supply
- SBC10-USB15W or SBC10-USB15WS
- Power Requirements
- 5 V DC, 3 A max.
- Charging Temperature Range for Battery
- 0 °C to 45 °C (32 °F to 113 °F)
- Dimensions
- 66 x 99 x 165 mm (2.6 x 3.9 x 6.5 in.), H x W x D
- Weight
- 284 g
- Housing
- ABS
- Power Supply
- Input Voltage Range
- 100 to 240 V AC
- Operating Frequency
- 50 Hz to 60 Hz
- Maximum Input Power
- 0.6 A
- at 100 V AC full load
- Output Voltage
- 4.75 to 5.25 V DC
- Maximum Output Power
- 3.0 A
- at 5 V
- Operating Temperature Range
- 0 °C to 60 °C (32 °F to 140 °F)
