Product Description

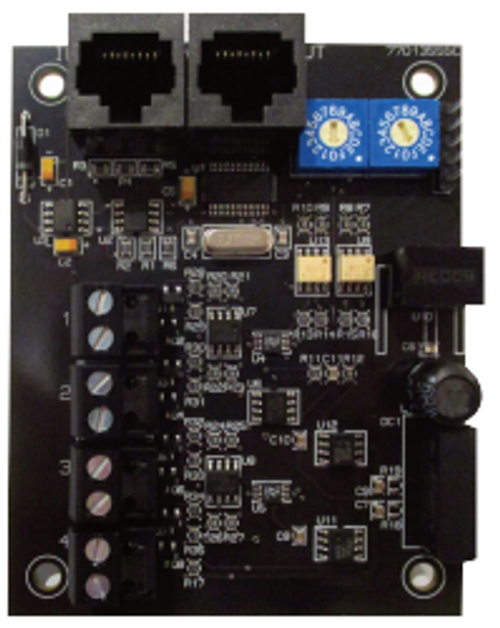

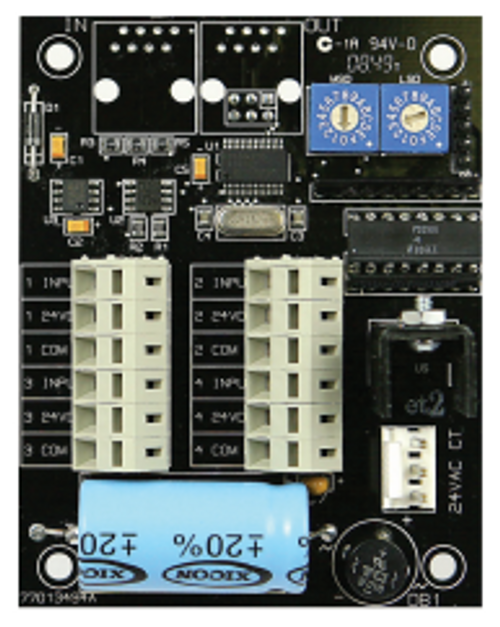

ILC LightSync 4 Input Module, Remote Mount (LSIM-R)

The LightSync Digital Input Module is designed to accept up to 4 hardwired switch inputs. Each input accepts a 2 or 3 wire dry contact switch closure or an equivalent open collect signal from any source. Each input module can also be configured to accept a 12-24 VDC signal from security or BAS systems. Any input can be programmed to control any relay(s), group(s), or preset(s) in any or all panels. Each input has an associated pilot status LED output that indicates the true status of any relay, group, or preset. It may also be programmed to a reverse status (LED is ON if the relay is OFF) or ON always. Inputs have a time-of-day or open/close time of action function which could disable the input or change the input type.

Features:

• Made in the USA

• Digital CAT-5 Ready

• 4 hardwire inputs and status outputs per module

• Installs directly onto the output board

• Digitally addressable device for a unique address

• Remote mounting option for LightSync network • RJ45 connectors for remote mounting module

• Terminals are an easy non-screw push-to-connect type

• Optically isolated inputs that protect the electronics

• Accepts dry contact closures or open collector outputs

• Configurable to accept 12-24 VDC signals

• Accepts 2 or 3 wire momentary or maintained switches

• Associated LED pilot output is provided for each input

• True status pilot for relay, group, or presets

Remote Mounting Option:

• Remote mount anywhere on the LightSync network

• Self powered from the network

• RJ45 connectors provided for easy connection

• Mounting plate available

• Great choice for a central switch control station. Eliminates wiring individual switches to panels - only a data line required

Warranty:

• Six year limited warranty

Specifications:

• Safeguards: • Optically isolated inputs eliminate connection issues
• Physical: • 2.75”Wide X 3.5”High • Easy non-screw push-to-connect terminals • Digital addressing switches • RJ45 connectors for remote mounting options • Remote mount option includes mounting plate
• Electrical: • Powered from the panel or from the LightSync network
• Operating Environment: • Location: Interiorspace • Operating Temp.: 0° to 50° C • Humidity: 10% - 90% Non-condensing • Atmosphere: Non-explosive/corrosive • Vibration: Stationary
• Certifications and Approvals: • FCC Part 15
