Product Description

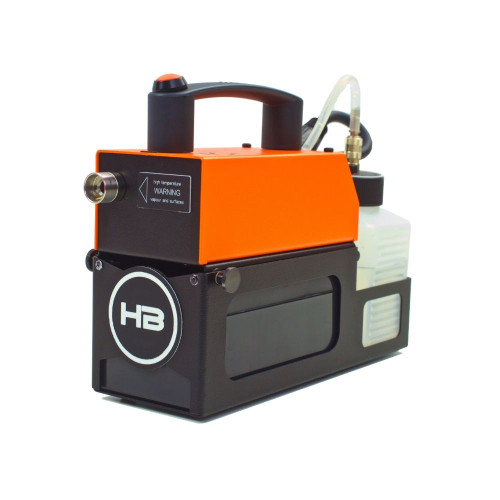

HazeBase HB-0841 The Cube Hazer² 350W Water-Based Haze Machine
Overview
The Hazer2 is a latest generation haze generator. It offers a variety of possibilities to show your light effects even better.
The Hazer2 is used to generate haze. Thus, the atmospheric effect can be created, which is necessary for an appealing light show.
Due to the adjustability of pump power, fan speed and blow-out angle, almost any desired haze density can be generated.
A newly developed vegan, highly concentrated fluid is used. This produces the finest droplets with maximum lifetime in the air.
The extremely quiet and adjustable fan allow the use in areas where ambient noise is disturbing.
The Hazer2 also offers several control options. In addition to the direct operation at the device by means of a membrane keypad, the haze generator can be controlled via DMX512/RDM, as well as via wired and wireless remote controls (optionally available).
The 1 liter fluid bottle lasts from approximately 80 hours at minimum settings to 5 hours at maximum output.
The Hazer2's directly heated vaporizer is up to operating temperature in less than 10 seconds and requires only 350W despite extremely high output.
It's wide range input (100V-240V AC) allows it to be used anywhere in the world.
Features
- Hazer without compressor
- Haze density adjustable from 1-100%.
- 1.3" OLED display with membrane keypad
- air leading metals, +/- 45 ° swiveling
Specifications
| Operating principle | Dunster generator without compressor |
| Connection data | 90-240 V~, 50-60 Hz, 350 W (PowerCON TRUE1) |
| Heating time | Approx. 10 seconds |
| Haze density | 1-100% adjustable |
| Fluid tank | 1000ml |
| Consumption | 4-187ml / hr |
| Operation | 1.3″ OLED display, membrane keypad |
| Supported protocols | DMX512, RDM, JT Remote |
| DMX control | 2 channels (pump, fan speed) |
| Control | DMX/RDM, cable remote control, standalone |
| Integrated fans | Axial fan with 170m³/h, 0-100 adjustable, |
| Air leading metal | Air baffles, 0-45° adjustable |
| Integrated sensors | Fan speed, temperature sensor |
| Supported fluids | Base*V |
| Dimensions (LxWxH) | 305 x 205 x 300 (L x W x H) |
| Weight (kg) | Ca 7 kg |
