Product Description

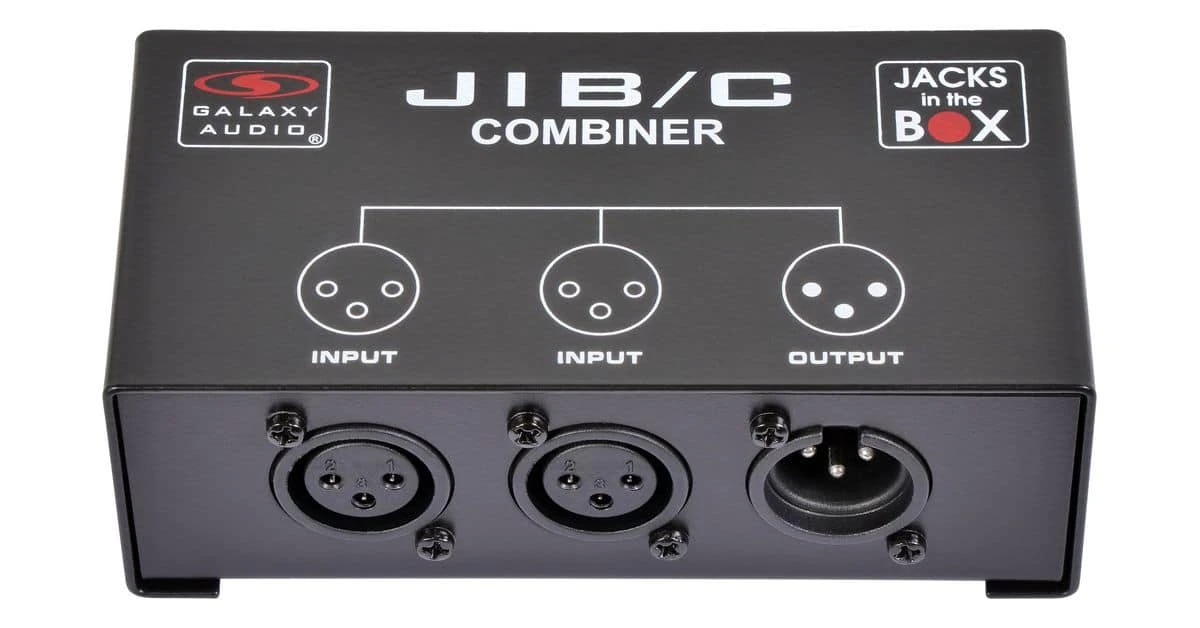

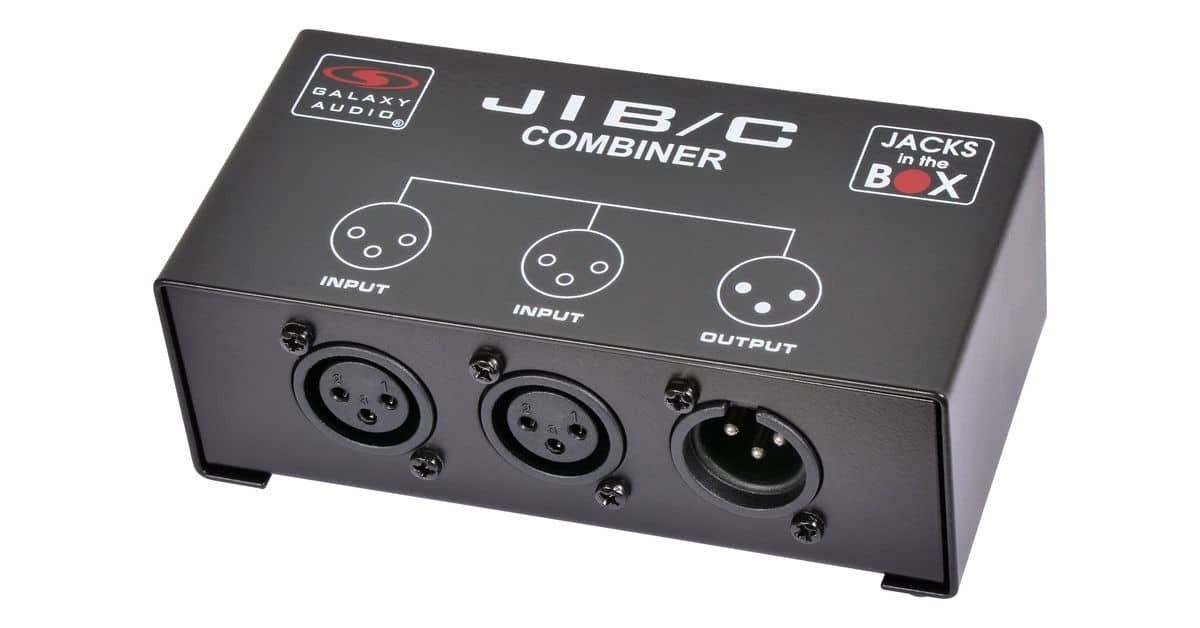

Galaxy Audio JIBC XLR And Microphone Combiner
JIB/C – Need more inputs?
Combines two XLR inputs to one XLR output, allowing for phantom power to pass to both XLR inputs.
The Galaxy Audio JIB/C is designed for those situations when you need one extra channel to plug a microphone into your mixer. Simply plug a microphone (wired or wireless) into each input and connect the output of the JIB/C to the input of your mixer. Another great feature of the JIB/C XLR and microphone combiner is that it will also allow the
phantom power (supplied from the mixing console) to go to both microphones.
Keep in mind, there is a 10dB loss to summing. It would be best to sum microphones in the same sound field such as combining two microphones suspended over a choir.
- Add an additional microphone to the POWERED HOT SPOT (or other portable powered speakers) when all inputs are in use.
- Permits phantom power to go to both microphones if available from the console.
Input | Two Male XLR |
---|---|
Output | One Female XLR |
Construction | Metal |
Dimensions | 5" x 2.5" x 1.75" (127 x 63.5 x 44.45 mm) |
Weight | 12 oz (340.2 g) |
