Product Description

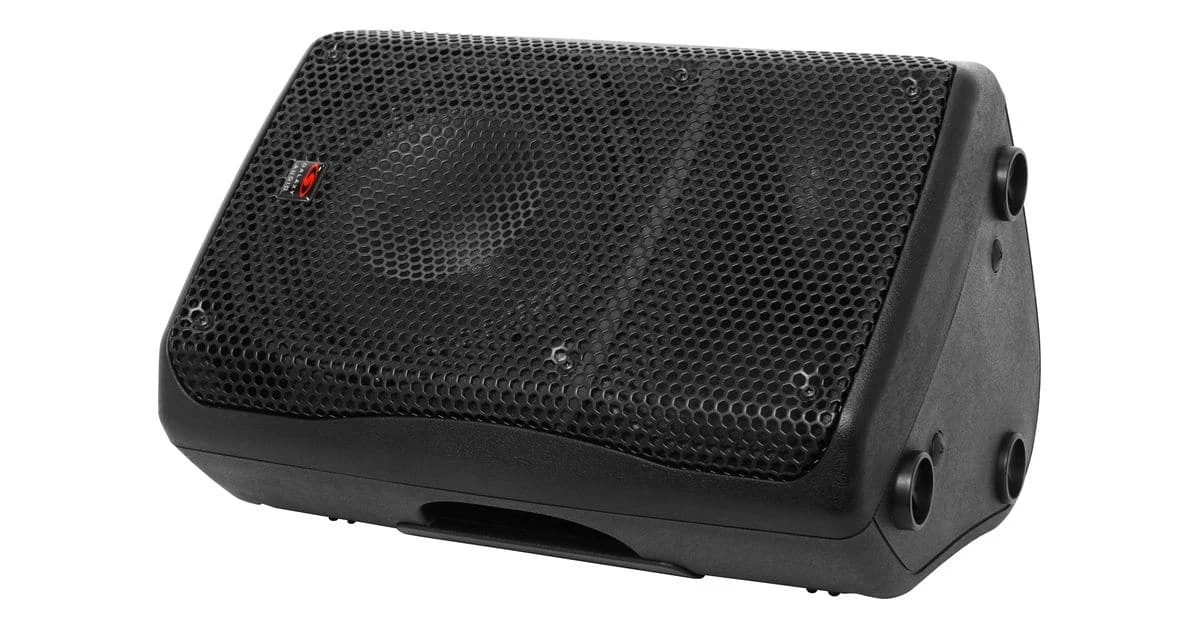

Galaxy Audio GPS-8 Powered 200 Watt Speaker And Monitor
The Galaxy Audio GPS-8 full range personal monitor PA system packs huge sound while remaining compact and versatile. The GPS-8 is a full range powered, 200 watt, two-way, compact PA speaker system with a unique asymmetrical shape which allows for wedge placement or pole mounting. Lack of low end response is a major drawback of most compact PA speakers. The Galaxy Audio GPS-8 addresses this need with a push button Bass Boost feature which enhances low end.

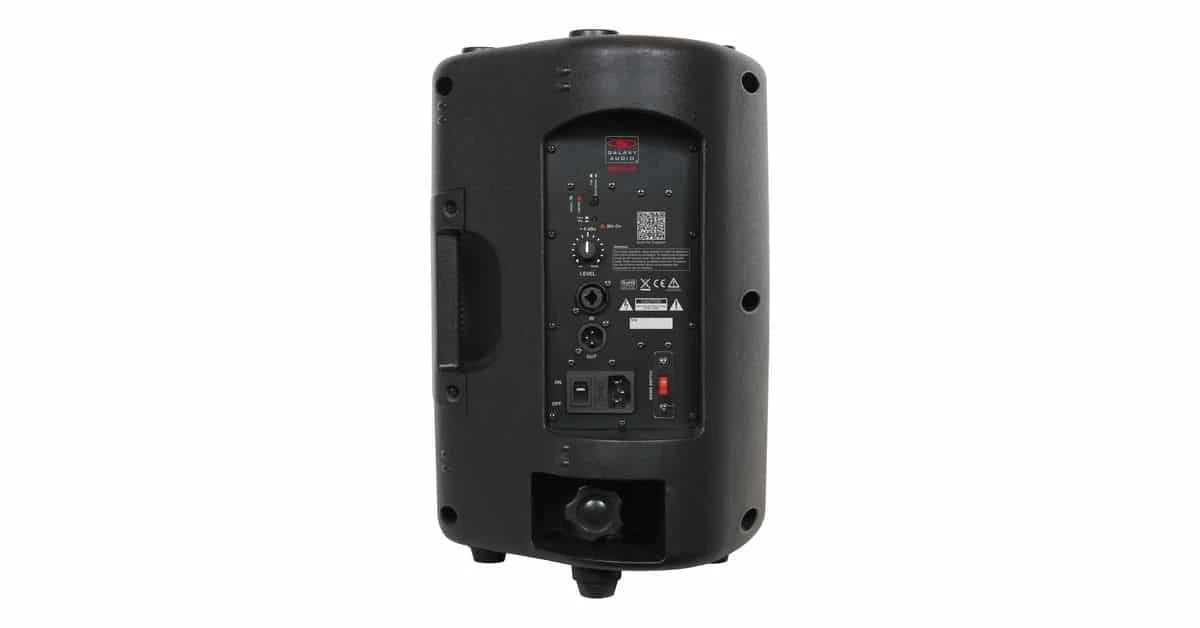

The Galaxy Audio GPS-8 has a mic/line switch, as well as a variable gain control, giving it the capability of accepting most any input level. The handy XLR/1/4″ combo input jack accepts balanced and unbalanced signals. There is an LED to indicate when switched into mic level position. You can tell at a glance your input status via the green LED for signal input, and the red LED indicating the on board limiter is functioning and that the level should be reduced.
To make linking of units a breeze, an XLR pass-through jack is included. This is unaffected by the input level control, to make it simple to adjust levels of units independently. Other features of GPS-8 include: Lighted power switch, switchable 110V/220V mains power, integrated carry handle and a lightweight, durable, compact, attractive, housing. Four M8 threaded suspension points are also accessible for permanent mounting of the unit.
- 200 Watts

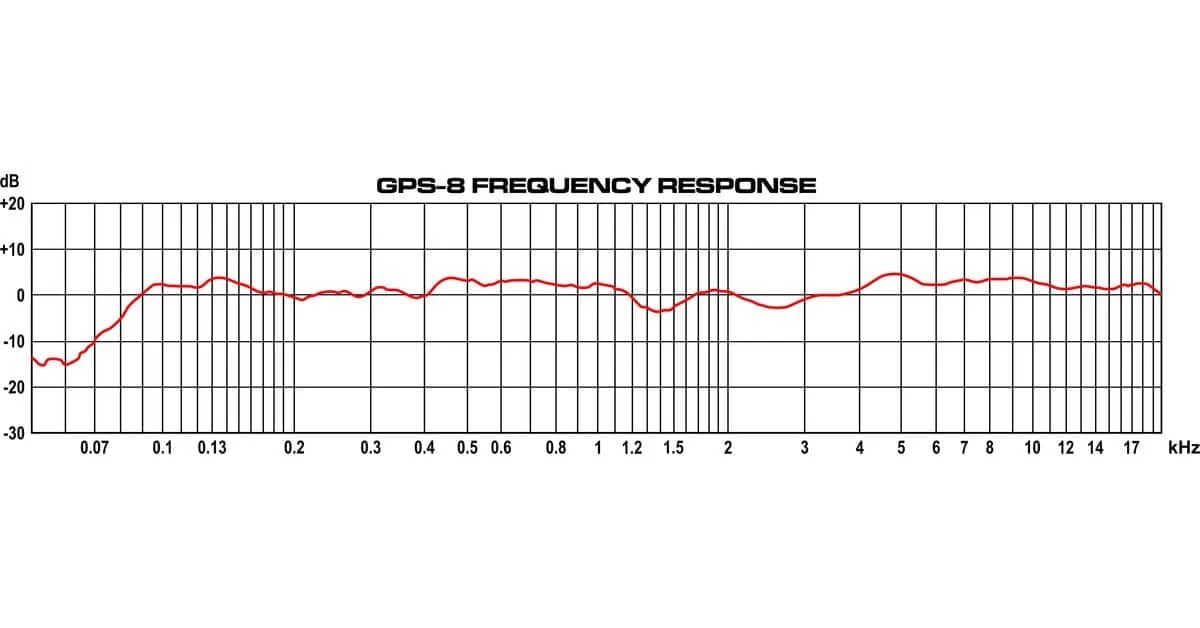

- Freq. Response (±3dB) 75Hz – 17.5kHz
- Sensitivity: 100dB, 1 W @ 1 m
- 8″ Diameter Woofer, 1″ Compression Driver
- Built-in Limiter
- Switchable Mic/Line Input (XLR/1/4″ Combo)
- Bass Boost
- ABS Plastic, Steel Grill

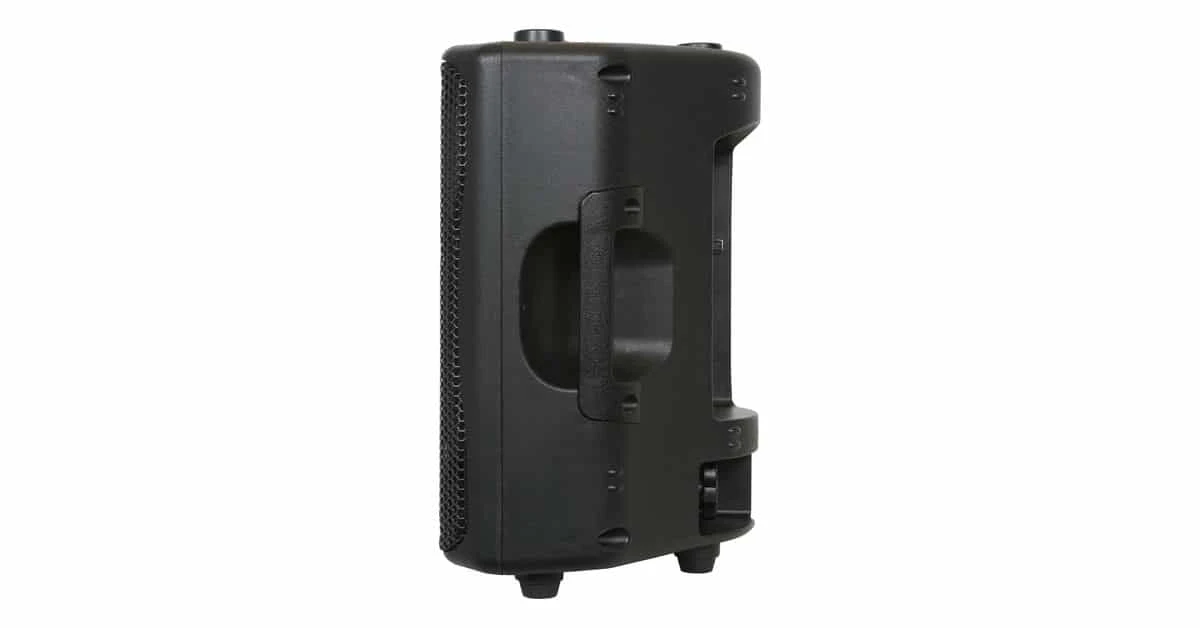

- Integrated Handle
- Wedge Shape Design

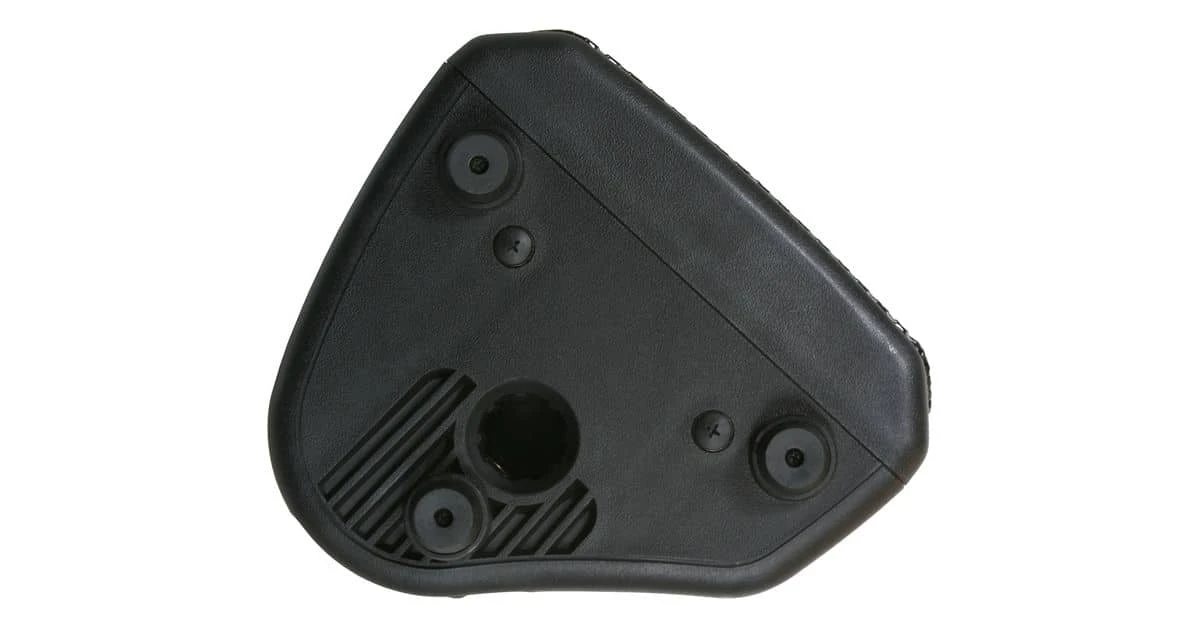

- Speaker Pole Mount
- Fly Points
- Pass Thru Allows for Connection of Multiple Units
SPECIFICATIONS
| Frequency Response | (±3dB) 75Hz - 17.5kHz |
|---|---|
| Output/Peak | 200 Watts |
| Sensitivity | 100dB, 1 W @ 1 m |
| Max SPL | 123dB |
| Speaker Compliment | 8" Diameter Woofer, 1" Compression Driver |
| Nominal Impedance | 4 Ohms |
| Input Connection | One - XLR/1/4" Combo, Balanced/Unbalanced |
| Output Connection | One - XLR Balanced |
| Controls | Level, Mic/Line, Power, Bass Boost +3dB @ 90Hz |
| Indicators | Power LED, Signal LED, Limit LED, Mic LED |
| Protection | Limit, Thermal, Over-Excursion |
| Power Requirements | 110/220 VAC, 2A |
| Splowt | 7 |
| Enclosure Materials | ABS Plastic, Steel Grill |
| Mounting/Rigging | 1-3/8" (35 mm) Pole Socket, Four M8 T-nut Mounting Points |
| Color | Black |
| Accessories | IEC Power Cable |
| Dimensions | 16.34" x 11.6" x 8.66" (415 x 295 x 220 mm) (HxWxD) |
| Weight | 17 lbs (7.7 kg) |
