Product Description

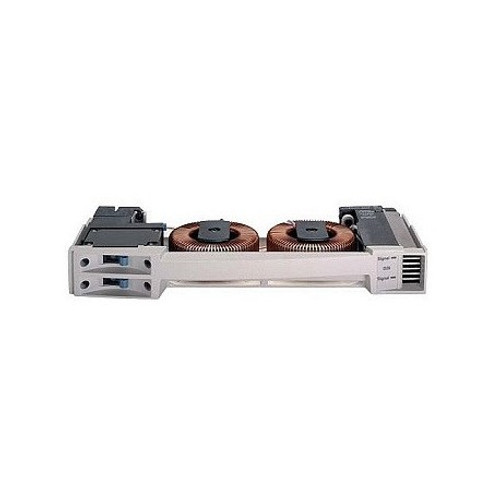

ETC D20HR Single 20A Dimmer Module 1000µS Advanced Features
Sensor High Rise Time modules provide the highest rise time to reduce fixture hum and also support Advanced Features dimmer circuit feedback in AF-capable Sensor Racks and Portable Packs.
APPLICATIONS
Digital dimming applications requiring the highest available rise-time
- TV studios
- Sound stages
- Video production
FEATURES
- 800µS toroidal filters
- Die-cast aluminum chassis
- Voltage, current and temperature sensors in each dimmer
- 10k AIC tolerance
- One 2.4 or 6.0kW dimmer per module
- Die-cast aluminum chassis
- Tool-free installation and removal
- Dual back-to-back SCRs for each circuit
- Fully magnetic circuit breakers 100% duty cycle at full rating
- Breakers will not derate over product life cycle UL and cUL listed
SPECS
DIMMER MODULES
- Dimmers are UL and cUL listed for continuous duty at 100% of rated load
- D20HR – 2.4kW
- D50HR – 6.0kW
PHYSICAL
- Dimmer modules are plug-in, and may be replaced without tools
- Cast aluminum chassis, finished with textured epoxy paint
- Includes circuit breaker(s), toroidal filter(s), SCR modules, power and control connectors
- Keyed to prevent insertion in inappropriately rated rack positions
CIRCUIT BREAKERS
- Fully magnetic to eliminate nuisance tripping
- 20 x inrush current rating
- 125%, 10-120 seconds, must- trip rating
- Rated for 100% switching duty applications
SCR ASSEMBLY
- Sealed, patented assembly
- Field replaceable with screwdriver
- Two back-to-back SCRs per circuit
- One Control and Output LED per circuit 4000V isolation between control and power components
- Integral bonded heatsink
- Integral temperature sensor
- Built-in voltage and current sensors
ORDERING INFORMATION
High Rise Dimmer Module
Model# Description
- D20HR Single 20A dimmer module with 800µS chokes and Advanced Features
- D50HR Double height 50A dimmer module with 800µS chokes and Advanced Features
Compatible Systems
Model# Description
Sensor Dimming Racks
- SR6 6 slot Installation Rack
- SR12 12 slot Installation Rack
- SR24 24 slot Installation Rack
- SR48 48 slot Installation Rack
- SR6AF 6 slot Advanced Features Installation Rack
- SR12AF 12 slot Advanced Features Installation Rack
- SR24AF 24 slot Advanced Features Installation Rack
- SR48AF 48 slot Advanced FeaturesInstallation Rack
Sensor Portable Packs
- SP6 6 slot Portable Pack with MPE module
- SP12 12 slot Portable Pack with MPE module
- SP6AF 6 slot Advanced Features Portable Pack with CEM module
- SP12AF 12 slot Advanced Features Portable Pack with CEM module
Sensor Touring Racks
- SP24 24 slot Advanced Features Touring Rack
- SP36 36 slot Advanced Features Touring Rack
- SP48 48 slot Advanced Features Touring Rack
