Product Description

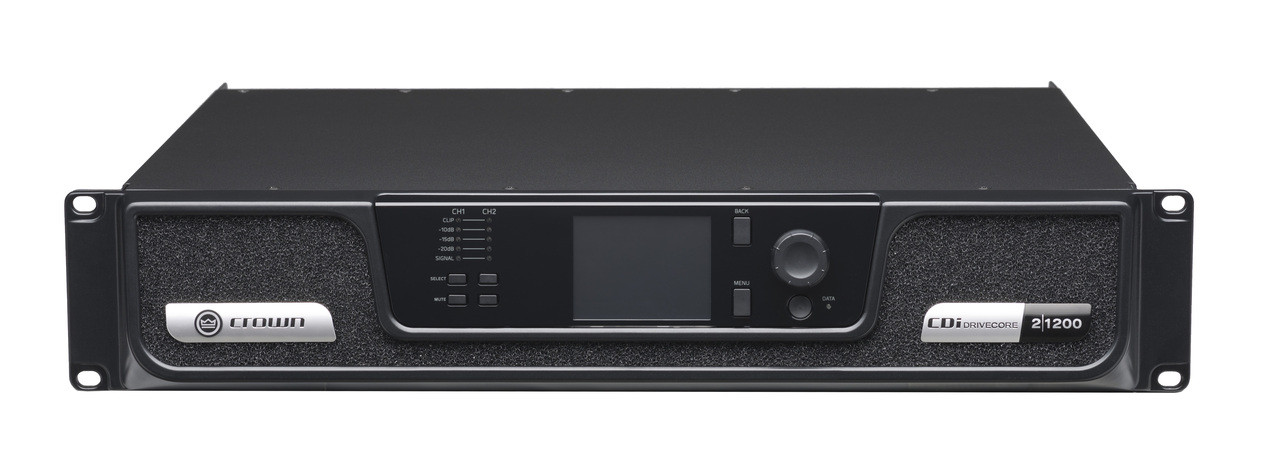

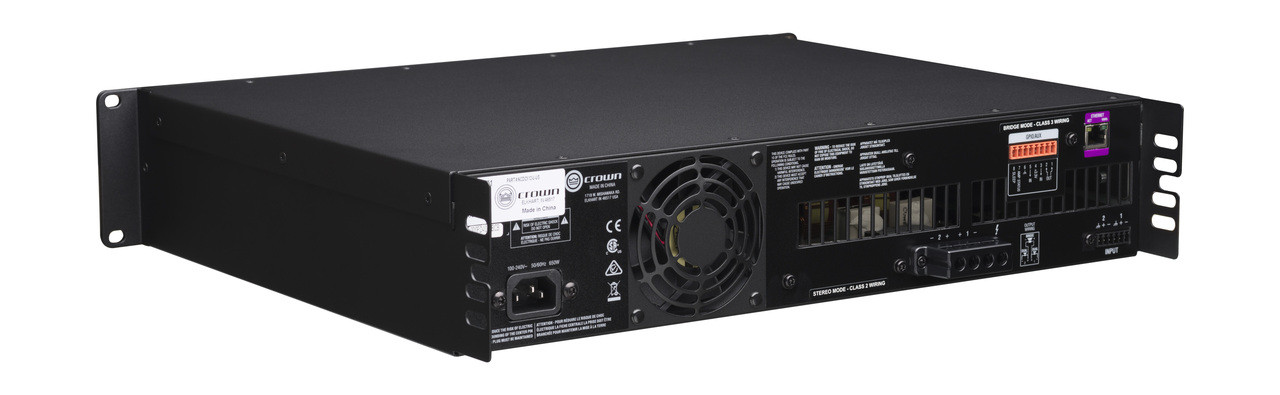

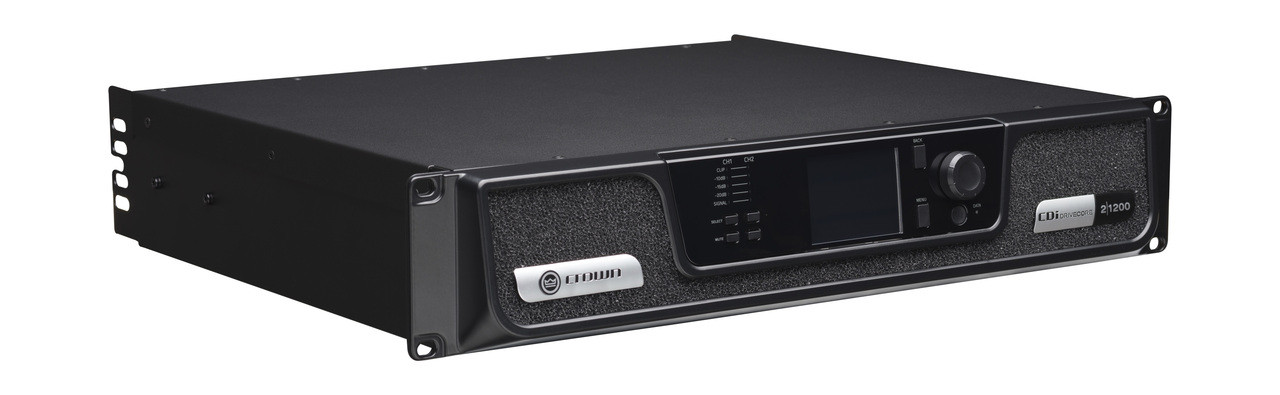

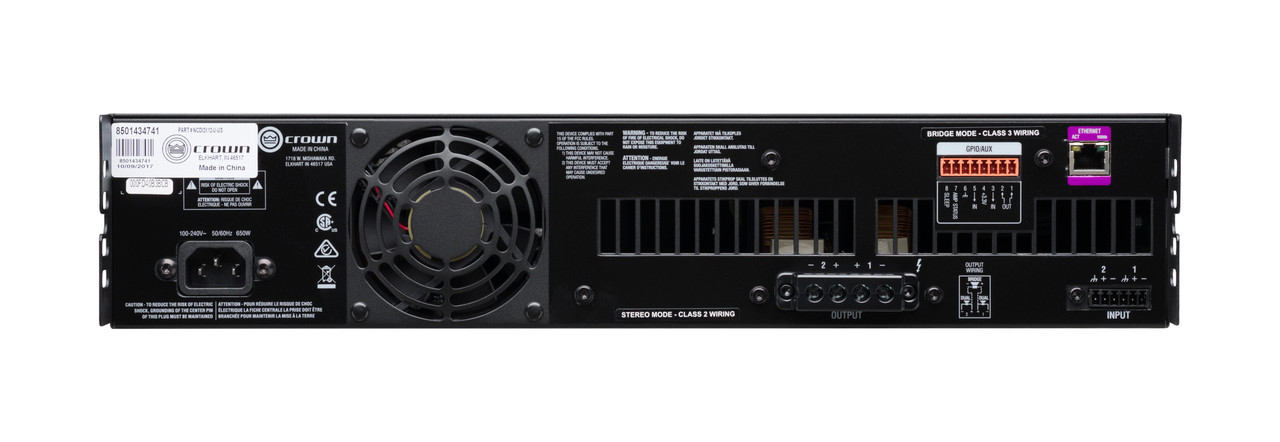

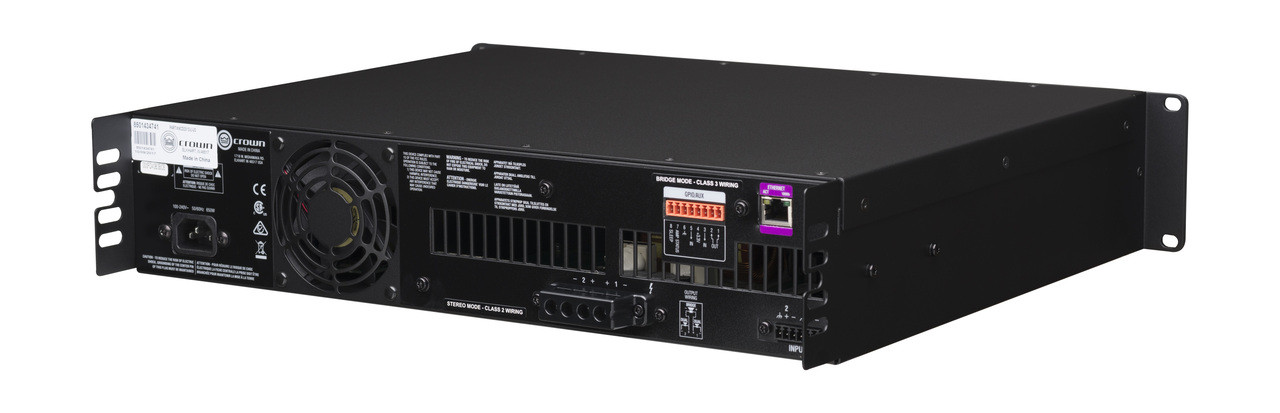

Crown CDi2x1200 Power Amplifier 2x1200
The CDi DriveCore Series is an evolution in amplification, providing an impressive mix of high-performance; rich feature set, and competitive cost. Using technology derived from our flagship Installed Sound amplifier (Crown DriveCore Install series), the CDi DriveCore 2|1200 offers streamlined functionality to work in almost any large sized installation such as cinema, houses of worship, hotels, cruise lines, and more. Designed for ease-of-use in a variety of applications, the 2|1200 is a 2-channel amp that includes network control/monitoring, high-level DSP, front-panel interface, and support for driving up to 100Vrms speaker loads without requiring a transformer. The entire CDi DriveCore line comes pre-loaded with JBL speaker tunings to help make installations quicker and easier.
Specifications
BLU link | |
Channels | 2 |
Sensitivity (for full rated power at 8 ohms) | 0.7V RMS |
Rated Power Output (per channel @ 4 ohms) | 1200W |
Analog Input Signal to Noise Ratio (ref. rated power, 100V, 20Hz - 20kHz) at 8 ohms) | > 104dB |
THD (full rated power, 20 Hz - 20 kHz) | 0.35% |
Damping Factor (20 Hz to 100 Hz) | > 1000 |
Frequency Response (8Ω, 20 Hz - 20 kHz) | +/-0.25dB |
Crosstalk (below rated power) 20 Hz to 1 kHz | > 80dB |
Input Impedance (nominally balanced, nominally unbalanced) | 20 kΩ balanced, 10 kΩ unblanced |
Dimensions (inches) (W x H x D) (depth not including 1.3 inch front panel protrusion) | 19 x 3.5 x 14.71 |
Weight | 17.2 lbs (7.8 kg) |
Power Supply Connector | "15A IEC connector, 100 – 240V " |
