Product Description
Astera FP6-SET-1 HydraPanel LED Light with Case

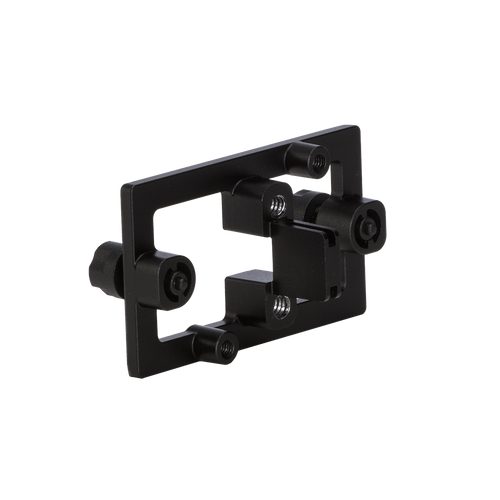

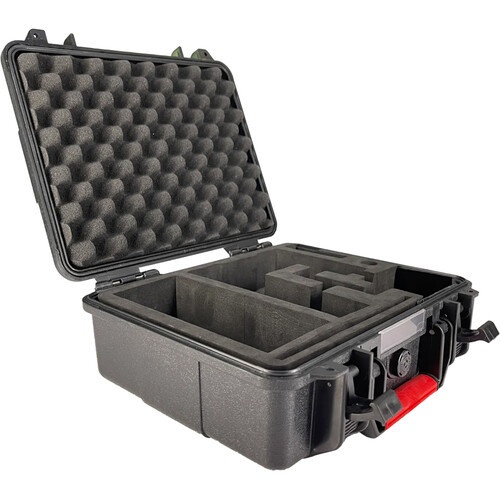

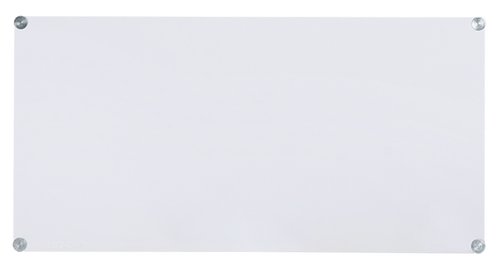

Hydra Panel Single Unit Kit: Battery-powered LED panel for film, studio and stage lighting. Includes a Diffusor Sheet 100, Intensifier 80, Soft Frame100, Egg Crates 40 & 60, Gel Holder, Flexbase, Connector Plate, Babypin 1/4”. and case.
Overview
The FP6 HydraPanel LED Light with Case from Astera features the compact 6.5 x 3.3 x 1.7" panel designed for in the studio or on location. It suits film, studio, and stage applications for direct or indirect illumination of people, objects, or scenery. The adjustable color temperature ranges from 3200 to 6500K and it has a high CRI/TLCI of 96 for color accuracy. Its full-spectrum titan LED engine generates an impressive 1300 lumens output and it has a runtime of an hour and 45 minutes at maximum brightness on its built-in battery power.
Included is a lightweight panel and various modifiers including a diffuser, eggcrates, and a gel holder. The HydraPanel can be mounted via its included FlexBase accessory, Baby pin, or rear magnet. It has a built-in battery, so you can use it on location. The panel comes with a power supply for Helios or Titan tube lights and a case for convenient storage and transportation.
Multiple Light Modifiers
- Diffuser sheet 100 softens the beam and can be combined with eggcrates
- Intensifier 80 creates soft shadows while maintaining brightness and can also be combined with eggcrates
- Eggcrate 40 and eggcrate 60 narrow the beam spread and reduce spill light on the side
- Soft frame 100 creates soft shadows and gives the HydraPanel a consistent surface
Unique Features
- Talkback+ detects, sets, and checks the status of your light and configures DMX addresses and profiles.
- Seamless runtime sets the length of your production
- TruColor calibrates the light for color consistency and exact color reproduction of color temperature and filter gels
- Effects quickly build programs from colors and effects
- Flicker free so there will be no flickering while filming
- Green/magenta correction adjusts green/magenta during content creation to reduce postproduction work
- Scheduled standby sets the light to wake up when the production starts
- Dynamic PowerBoost displays maximum brightness at all times and intensifies non-white colors
- Emergency lights switch to white light when AC power is cut to keep your event safe
- Anti-theft feature where the light produces visual and audible alarms and sends a notification to the app if it is being moved during an event
- DJ feature analyzes and matches the beat
Smart Control System
Features
- Panel Measures 6.5 x 3.3 x 1.7"
- Up to 1300 Lumens Output
- 3200-6500K Color Temperature Range
- 96/96 CRI/TLCI
- Full-Spectrum Titan LED Engine
- Infrared Remote and DMX, App Control
- IP65 Rating
- Multiple Mounting Options
- Modifiers Included
Specifications
| Item Type | 1 x LED Light Panel |
| Included Light Modifier | 2 x Grid/Louver 1 x Intensifier |
| Included Filters | Diffusion |
| Included Storage Case | 1 x Case |
| Lumens | 1102 (at 3200K) 1287 (at 4000K) 1298 (at 5500K) |
| Photometrics | 3200K 41 fc / 443 Lux at 3.3' / 1 m* 4000K 47 fc / 512 Lux at 3.3' / 1 m* 5500K 47 fc / 516 Lux at 3.3' / 1 m* *Standardized Measurement Supplied by the Manufacturer |
| Color Temperature | 3200 to 6500K |
| Color Modes | RGB |
| Color Accuracy Standard | CRI 96 TLCI 96 |
| Beam Angle | Vertical: 100° Horizontal: 110° |
| Front Accessory Mount | Proprietary |
| Wireless Remote Control Type | Bluetooth Wireless CRMX IR |
| Power Source | Battery (Built-In) AC to DC Adapter (Included) |
| Inputs/Outputs | 1 x Barrel / Coax (2.1 x 5.5 mm) Power Input (24 VDC) 1 x Barrel / Coax (2.1 x 5.5 mm) Power Output 1 x XLR 5-Pin DMX Input 1 x XLR 5-Pin DMX Output |
| Battery | 1 x Rechargeable (Built-In) • Up to 20-Hour Runtime • 3-Hour Charge Time |
| Battery Charging | 1 x AC to DC Adapter (Included) |
| AC Input Power | 90 to 240 VAC, 50 / 60 Hz |
| DC Input Power | 24 VDC at 0.8 A |
| Included Adapter / Cable | 1 x Edison Plug to Barrel / Coax AC to DC Adapter |
| Inline Switch | No |
| Power Pass-Thru | Yes |
| Power Consumption | 17 W |
| Fixture Mounting | 3 x M5 Female Thread 2 x 1/4"-20 Female Thread (Via Hardware) 1 x 3/8"-16 Female Thread (Via Hardware) 1 x M5 Female Thread (Via Hardware) Magnetic |
| Included Adapter | 1 x 5/8" Stud with 1/4"-20 Male Screw |
| Environmental Protection | Advertised as Weather Resistant *Manufacturer Testing: IP65 |
| IP Rating | IP65 |
| Materials | Metal, Polymer (Housing) |
| Dimensions | 6.5 x 3.3 x 1.7" / 16.51 x 8.38 x 4.32 cm (Fixture) |
| Weight | 1.3 lb / 0.6 kg |
