Product Description

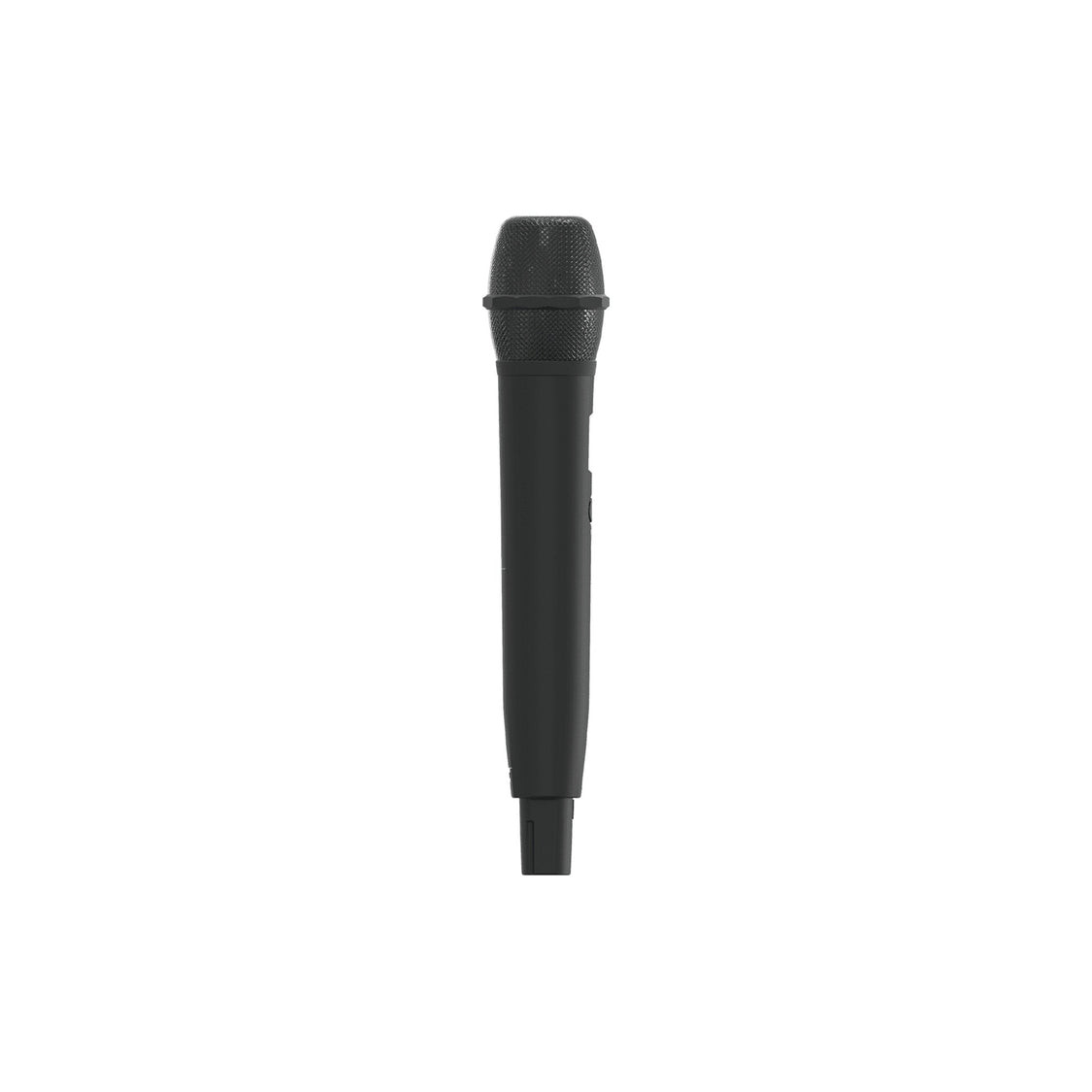

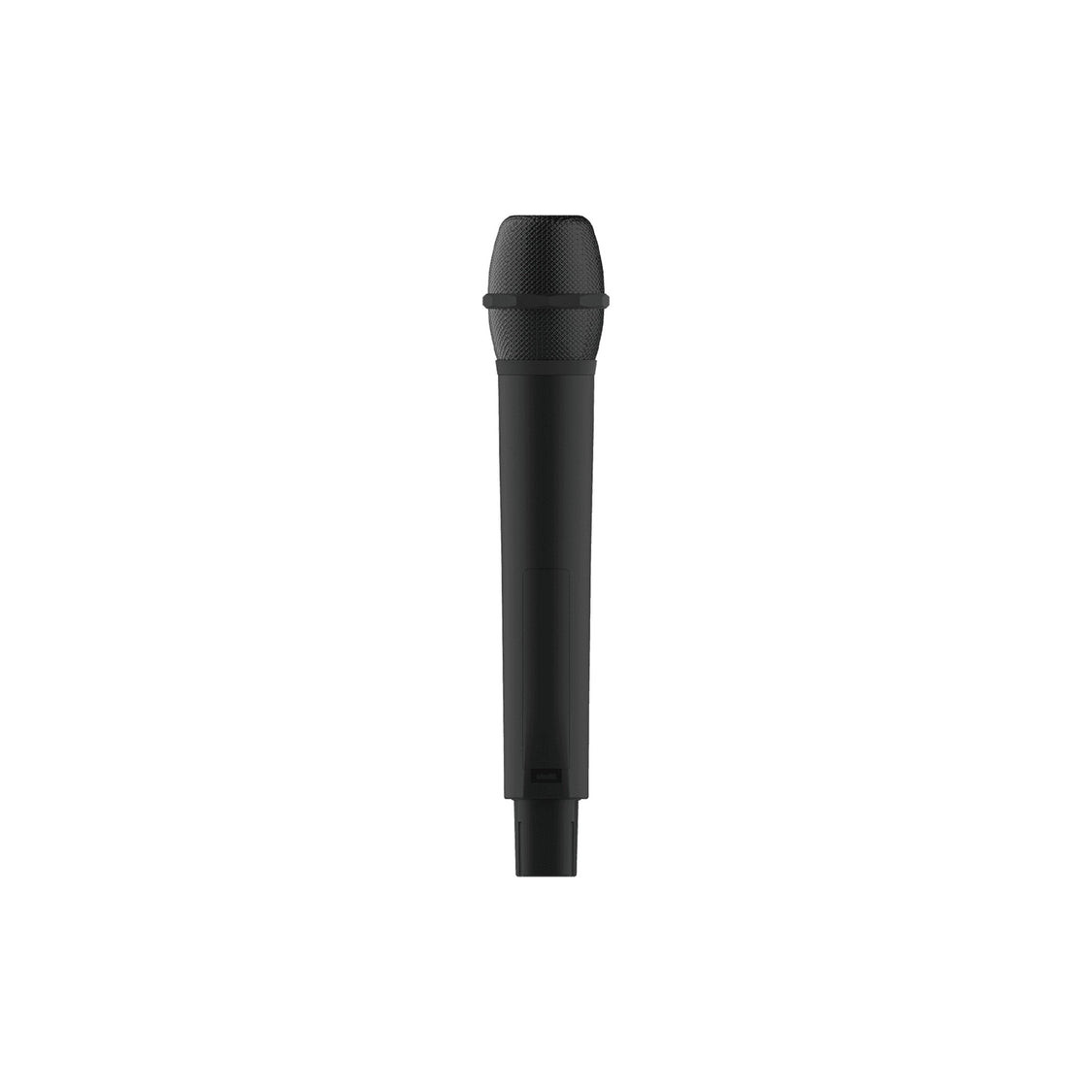

Williams Sound OM-20 Ovation Handheld Microphone

Overview

The Williams AV OM-20 is a student-friendly wireless handheld microphone for the Ovation classroom audio system. Using secure DECT 6.0 at 1.92–1.93 GHz, it provides clear, reliable voice transmission with dynamic frequency hopping for interference avoidance and up to 300 ft (91 m) line-of-sight range. Pair it with the OA-50 receiver/amplifier for consistent, intelligible sound throughout the room.

Built for daily pass-around use, OM-20 features a cardioid capsule tuned for speech, an anti-roll bezel, and a matte/satin black finish that wipes clean. A switchable Push-to-Talk (PTT) mode prevents “open-mic” chatter; auto power-off conserves the rechargeable battery; and a front LED window indicates pairing, battery, and charge status. Charging is via USB-C or the OC-20 drop-in charger (both available separately).

Features

• Wireless: DECT 6.0 (1.92–1.93 GHz) with dynamic frequency hopping; 60 talk channels; diversity antenna system.
• Range: Up to 300 ft (91 m) line-of-sight; 15 ms fixed latency.
• Speech-tuned pickup: Cardioid (unidirectional) capsule with built-in wind/pop filter for natural vocal clarity.
• PTT mode: Switchable Push-to-Talk; mic mutes except while the PTT button is pressed.
• User indicators: LED window shows pairing state and battery/charging status.
• Battery: Rechargeable Li-ion (14500, 3.7 V); about 8 hours runtime; on-mic battery management.
• Build for classrooms: Anti-roll bezel; rugged construction; easy wipe-clean finish.
• Charging options: USB-C direct or OC-20 drop-in charger (sold separately).
• Compatibility: Pairs 1:1 with Williams AV OA-50 (Mic A or Mic B); auto-reconnect on power-up.
• Compliance: Contains transmitter module FCC ID Y82-DA14AVD / IC ID 9576A-DA14AVD.

Specifications

• Wireless Technology: DECT 6.0; 1.92–1.93 GHz (USA/Canada); dynamic frequency hopping; 60 talk channels; diversity antenna system.
• Max RF Power: 20 dBm (100 mW).
• Operating Range: 300 ft (91 m) open space.
• Latency: 15 ms (fixed).
• Pairing: 1:1 fixed; auto-reconnect to paired receiver.
• Frequency Response: 50 Hz–12,280 Hz.
• THD: <0.5%.
• Battery: Lithium-ion 14500, 3.7 V; ~8 hours; on-mic management.
• Charging: USB-C (5 VDC) or OC-20 charger (sold separately).
• Dimensions: 10.2" L × 1.9" max Ø (25.9 × 4.8 cm); mid-section Ø 1.4" (3.5 cm).
• Weight: 0.44 lbs (0.204 kg) with battery.
