Product Description

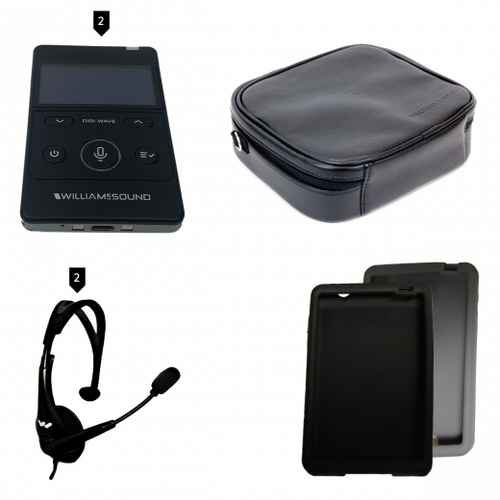

Williams Sound Digi-Wave 400 Version Includes Battery and DW ACC PAC4 Single-unit Power Supply
Description
The Digi-Wave™ system is a digital spread-spectrum (DSS), simultaneous two-way wireless listening system. Using it’s frequency-hopping algorithm, it avoids interference and is a very secure method of communication. The Digi-Wave communication system allows users to listen and talk to one another wirelessly in a variety of scenarios.

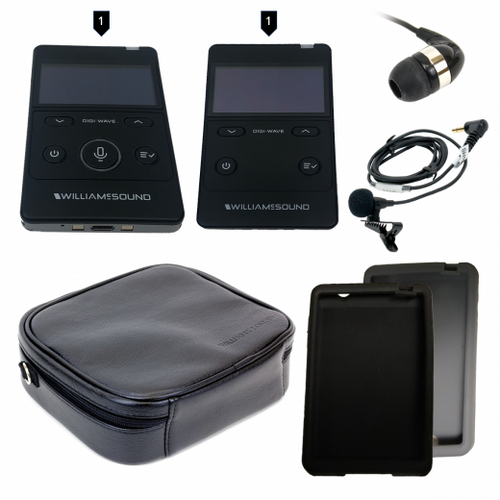

A Digi-Wave system consists of at least one transceiver (DLT 400) and various combinations of transceivers and receivers (DLR 400 RCH or DLR 400 ALK). Combinations of one or more DLT’s and DLR’s can be used to facilitate different events, depending on what needs to be spoken and what needs to be heard. Typical scenarios include:
- Guided Tours - with one or more tour guides (2-way), with audience participation (2-way), or without audience participation (1-way)
- Language Interpretation - one or more interpreted languages transmitted to audience (1-way)
- Intercom - with up to six people able to speak simultaneously, and even more listening
- Hearing Assistance - featuring boosted audio for improved comprehension
Need a compatible headset microphone, check out the Williams Sound MIC 144 Headset microphone with TRRS 3.5 mm plug for use with Digi-Wave DLT 400 transceiver only
Specifications
Dlt 400
Dimensions | 4.22"W x 2.60"H x 0.50"D (107.3 mm x 66 mm x 12.6 mm) |
Weight | 3.3 oz (94 g) including battery |
Color | Black/Silver (Front/Back) |
Case Material | Black ABS plastic |
Battery type | Lithium Polymer with smart charge built into transceiver; 1800 mAH |
Battery life | Up to 16 hrs talk time per charge@ 1ch Tx and 1ch Rx |
Power Save | Auto Sleep Mode after 5 minutes of no RF signal from compatible devices |
Charge time | 5 hrs. approx. |
Operating frequencies | 2.4 GHz (ISM band); 2402 – 2476 MHz FHSS |
Audio Frequency response (-3dB Level) |
Intercom Mode: 100 - 7,200 Hz Other Modes: 100 - 11,500 Hz |
SNR | 73 dB (A-weighted, default Rx volume with mic input ) |
THD | 0.1 % (Default Volume, 1kHz) |
Microphone input | Internal microphone (disabled when MIC jack engaged) and 3.5 mm phone jack (sleeve) with electret microphone bias, adjustable gain with 63dB range. |
Line Input | USB-C, Adjustable level |
Audio Output | Headphone: 3.5 mm TRRS headphone jack; 25 mW, R 32 ohms Line: USB-C, Adjustable level |
Audio Output | Max SSPL 90 111.8dB (EAR 013), 116.8dB (EAR 041) |
Range | Up to 900 ft (274 m) (depending upon environmental conditions) |
Modulation | FSK |
RF Output | 19 dBm Typical |
Security | 87 bit encryption (300 Series Compatiable), 87+128 bit Encryption, Encrpytion PIN, Lock for settings |
Side tone | -6 dB below volume, tone variation (Off, Low and High settings available) |
Indicators | OLED |
LEDs | Red LED around Talk button when enabled; Bi-color, changing green and red LED at top |
Charging Connectors | USB-C; Two contacts for use with CHG 412 |
Compatible Receiver | DLR 400 RCH, DLR 400 ALK, DLT 300 with some limitations and DLR 360 with some limitations |
Operating Tempurature Range | 14º to 113ºF (-10º to 45ºC) |
Approvals | FCC, Industry Canada, CE, RoHS 3, WEEE, RCM, ANATEL, KC, Giteki |
Warranty | 2 years parts and labor (90 days on accessories); 6 months on internal battery |
