Product Description

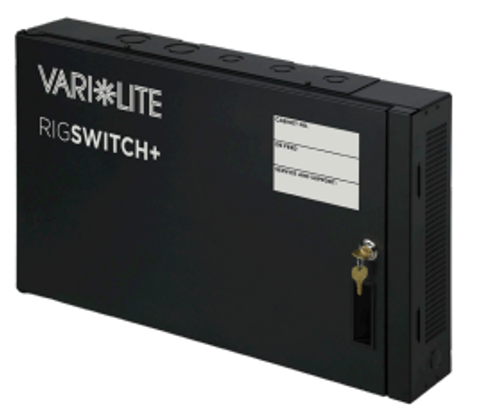

Vari-Lite 53818-016 12ch RigSwitch+ Performance, Plus 4ch Architectural (branch-fed)
Overview
The Vari-Lite RigSwitch+ Performance Power Platform, 12 Channel Branch-Fed, is a customizable all-in-one power control solution for small to mid-sized entertainment lighting installations. A single global power platform with 120V/277V and 230V power options, the RigSwitch+ offers affordable rig power, including relay switching with configurable propagation delay and onboard current monitoring. And thanks to the optional 0/1V-10V and DALI dimming module, it’s easy to control house and work light power from the same device.
In addition to the integrated power control, RigSwitch+ also includes space to customize the cabinet by adding a variety of modules to add features and capabilities. Integrators can add an interface to connect to a variety of Vari-Lite and third-party devices and systems, including DMX, RS232, digital I/O, and more.
Features
- Intelligent relay-based power control – Latching relays designed for lighting loads, with inrush resistance, configurable propagation delay (“sequencing”), and manual override switches. Individually addressable for control, or automatically switch on/off when a DMX/RDM signal is detected.
- Wide range of control inputs available – control your lighting power how and where you need using DMX/ RDM, sACN, Art-Net, Vision.Net, OSC, Contact Closure, Web Interface, and REST API.
- Optional 0/1-10V or DALI Dimming Control module– add dimming control of house and work lights.
- Optional expansion with prewired Vision.Net modules – optional prewired expansion modules to connect to your wider network using DMX/RDM, RS232, or digital I/O, as well as the opportunity to add timeclock and a webbased On-the-Go lighting control interface.
- Dedicated control interfaces available in Vari-Lite FLX S Series and Neo X Series consoles – control and monitor fixture power directly from the console.
- Built in Dual Gateway function – convert 1 universe of sACN or Art-Net into DMX/RDM, and all Vision.Net messages between RS485 & Ethernet
- Easy to commission – Self-commissionable via RDM or Web Interface. Also includes core configuration of other Vision.Net modules and button stations straight from the Web Interface.
- RigSync Support in Vari-Lite FLX S Series consoles – use RigSync 2.0 to automatically commission RigSwitch+ along with any connected RDM luminaires, automatically addressing and patching the whole system, and pairing each relay circuit with the associated luminaires.
- Current monitoring per-relay – status reported back over RDM, Vision.Net, OSC, Web Interface or REST API
- Convection cooled, wall-mounted, steel enclosure – easyto-mount cabinet with standard wiring. Locking door, removable cable knockout plate, removable front-plate and 6x universal D- Series knockouts.
