Product Description

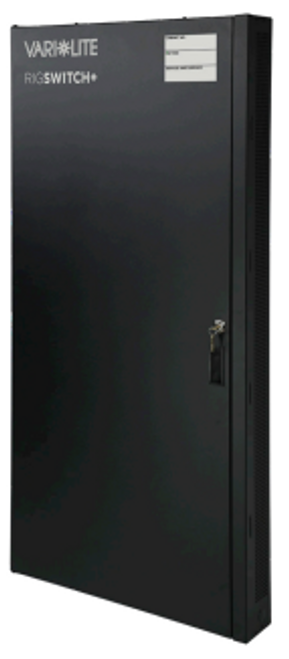

Vari-Lite 24ch RigSwitch+ Performance (UL, mains feed)
Overview
The Vari-Lite RigSwitch+ Performance Power Platform, 12, 24, & 48 Channel Mains-Fed, is a customizable all-in-one power control solution for entertainment lighting installations. RigSwitch+ offers affordable rig power, including relay switching with configurable propagation delay and onboard current monitoring. And thanks to optional 0/1V-10V and DALI dimming modules, it’s easy to control house and work light power from the same device.
In addition to the integrated power control, RigSwitch+ also includes space to customize the cabinet by adding a variety of modules to add features and capabilities. Integrators can add interfaces to connect to a variety of Vari-Lite and third-party devices and systems, including DMX, RS232, digital I/O, and more.
Features
- Intelligent relay-based power control – Latching relays designed for lighting loads, with inrush resistance, configurable propagation delay (“sequencing”), and manual override switches. Individually addressable for control, or automatically switch on/off when a DMX/RDM signal is detected.
- Worldwide variants – includes mains-fed options for either CE-certified (220-240V 50Hz with RCBOs per circuit) or UL-certified (100-127V 60Hz or 277V 60Hz) applications.
- Wide range of control inputs available – control your lighting power how and where you need using local UI, DMX/RDM, sACN, Art-Net, Vision.Net, OSC, Contact Closure, Web Interface, and REST API.
- Optional 0/1-10V or DALI Dimming Control module– add dimming control of house and work lights.
- Current monitoring per-relay – status reported back over RDM, Vision.Net, local UI, OSC, Web Interface or REST API.
- Optional expansion with prewired Vision.Net modules – optional prewired expansion modules to connect to your wider network using DMX/RDM, RS232, or digital I/O, as well as the opportunity to add timeclock and a webbased On-the-Go lighting control interface.
- Dedicated control interfaces available in Vari-Lite FLX S Series and Neo X Series consoles – control and monitor fixture power directly from the console.
- Built in Dual Gateway function – convert 1 universe of sACN or Art-Net into DMX/RDM, and all Vision.Net messages between RS485 & Ethernet
- Easy to commission – Self-commissionable via local UI, RDM or Web Interface. Also includes core configuration of other Vision.Net modules and button stations straight from the Web Interface.
- RigSync Support in Vari-Lite FLX S Series consoles – use RigSync 2.0 to automatically commission RigSwitch+ along with any connected RDM luminaires, automatically addressing and patching the whole system, and pairing each relay circuit with the associated luminaires.
- Convection cooled, wall-mounted, steel enclosure – easyto-mount cabinet with standard wiring. Locking door, removable cable knockout plate, removable front-plate and 6x universal D- Series knockouts.
Specifications

Other Details
Vari-Lite Warranty:
Vari-Lite (a Signify Holding company), warrants to the original, registered owner that this fully assembled product is free of defects in materials and workmanship for a period of two years from the later of the date of manufacture or purchase order if the registered owner presents, at time of warranty request, proof of purchase. The warranty period for replacement assemblies or components is only thirty days from the date the item shipped (unless the item is a replacement item provided pursuant to this warranty, in which case the warranty period is the later of thirty days from the date shipped or the unexpired portion of the underlying fully-assembled-product warranty period). Our only obligation and the owner's sole and exclusive remedy under this warranty is for repair at our facility or, at our option, replacement of defective items, without charge for factory applied labor or materials. We reserve the right to replace defective components or assemblies with factory refurbished equivalents. If we furnish replacement parts under warranty, the defective item(s) become our property. All glass, including but not limited to, dichroic filters, gobos, lenses, etc., are not warranted against breakage or scratches to coating. LAMPS AND LAMP HOLDERS ARE NOT COVERED BY THIS WARRANTY AND ARE SOLD BY US "AS IS."
This warranty does not apply to defects or problems resulting from improper or inadequate maintenance, unauthorized modification, misapplication, misuse (including use in a manner inconsistent with its intended function), operation outside of the product's environmental specifications, abuse, abnormal strain, improper site preparation, improper installation or use of this product with other products not manufactured by us.
You are responsible for the cost of removing and crating any allegedly defective product and for all freight, i.e., freight for both returning the product to (prepaid, FOB an Authorized Vari-Lite Service Center) and receiving return shipment of the repaired or replacement product from - an Authorized Vari-Lite Service Center for warranty service. Before returning any product for warranty service, you must obtain, in writing, a Return Goods Authorization (RGA) to qualify for warranty service.
WE ARE NOT LIABLE WHETHER IN CONTRACT, WARRANTY, TORT INCLUDING NEGLIGENCE), STRICT LIABILITY OR ANY OTHER LEGAL THEORY FOR ANY DIRECT, INDIRECT, SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES, INCLUDING, BUT NOT LIMITED TO, LOSS OF PROFITS, DAMAGE TO FACILITIES OR ASSOCIATED EQUIPMENT, LOSS OF INFORMATION, LOSS OF SALABLE PRODUCTS, DOWN TIME. LABOR AT SITE, OR BUSINESS INTERRUPTION COSTS OR OTHER ECONOMIC LOSS, OR ANY CLAIMS BY YOUR CUSTOMERS OR OTHERS FOR ANY SUCH LOSSES OR CLAIMS. OUR LIABILITY AND THE OWNER'S SOLE AND EXCLUSIVE REMEDY WITH RESPECT TO ANY VARI-LITE PRODUCTS SOLD BY US YOU, WHETHER IN CONTRACT, TORT, STRICT LIABILITY OR OTHERWISE, SHALL BE AS SET FORTH ABOVE AND IN ANY EVENT SHALL NOT EXCEED THE PURCHASE PRICE PAID BY YOU FOR SUCH PRODUCT. EXCEPT AS PROVIDED HEREIN, ANY VARI-LITE PRODUCT IS PROVIDED ON AN "AS IS" BASIS. WE MAKE NO OTHER WARRANTIES EXPRESSED OR IMPLIED AND WE SPECIFICALLY DISCLAIM ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE.
Any warranty or similar rights provided by any local law shall be waived to the extent such rights contradict this warranty or to the extent such rights are greater than those provided herein. If any such rights cannot be waived, then they will be applicable to the narrowest extent possible, but not in excess of the rights granted herein, and, in any event, any damages, whether direct, indirect, special, incidental or consequential shall be waived to the extent such damages exceed U.S. $100.00, regardless of where this product is located.
This warranty is governed by the laws of the State of Texas and any dispute under this warranty must be adjudicated in a forum located in Dallas, Texas. The Convention on the International Sales of Goods shall not apply to any sale of Vari-Lite Products.
No agent, employee or representative of Vari-Lite (a Signify Holding company) has any authority to bindVari-Lite to any affirmation, representation or warranty concerning Products sold by Vari-Lite except to the extent such affirmation, representation or warranty is specially set forth above, or is otherwise expressly contained in writing in a document specific to the owner's individual transaction, states that it is waiving the above warranty and remedies, and is personally signed by an authorized Officer of Vari-Lite.
For complete terms, conditions, and additional information related to Vari-Lite warranty, please contact Vari-Lite Customer Service at 10911 Petal Street, Dallas, Texas 75238, 1-877-VARI-LITE (1-877-827-4548) or 1-214-647-7880.
