Product Description

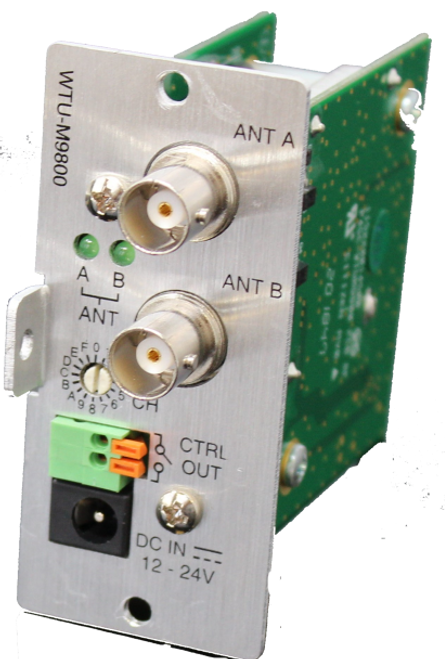

TOA WTU-4800-H01 5000 Series Wireless Tuner Module Frequency Band H01
The WTU-M9800 tuner may be used in any TOA mixer that accepts a 900 series module. Each module is a diversity UHF receiver with 16 user selectable frequencies. Up to two modules may be used in a frame without the use of an external power supply. A wide range of M band transmitters is available, as all 5000 series microphones and belt packs are compatible with WTU-M9800. Two whip antennas on standard BNC connectors are included. Phantom power on the antenna inputs supports the use of TOA’s YW-4500 Q powered remote antennas.
*When ordering the WTU-M9800, use with WM-5xxx M1 (suffix AM RM1 D00) transmitters (microphones) only
- PLL synthesizer controlled double super heterodyne diversity tuner
- Use with any 5000 series hand-held or belt-pack transmitter
- Use up to two tuners in 900 or 9000 seriers without any external power ssupply
- Up to 16 channels
- Save on installation costs, rack space, and shelf space
- BNC connectors for local antennas or remote mounted antennas
