Product Description

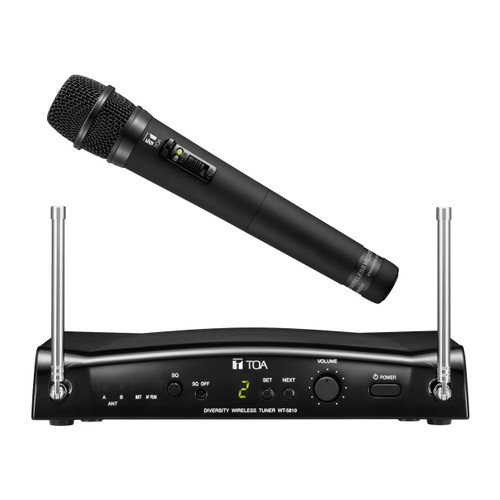

TOA WT-5810-AM-RM1D00 Portable Space Diversity Tuner Frequency Band M
The wireless tuner WT-5810 is designed to deliver outstanding performance levels, stability and overall reliability. A wide choice of channels realized by the use of the PLL-synthesized oscillator enables you to select channels freely to prevent any interference. In addition, TOA tuners provide significantly less potential for noise caused by changeovers between antennas, by employing true diversity and space diversity methods. A two-line LCD display enables faster meter reading. For further performance enhancement, a TOA diversity system eliminates dead spots and provides more stable signal reception. Noise reduction is improved with a squelch function (carrier, noise, tone), and a compander function minimizes ambient noise pickup. For easier operation, a Channel Check function simplifies channel setting operations on wireless microphones used on multiple channels simultaneously. A low battery indicator monitors and indicates microphone battery voltage status.
*When ordering, WT receivers and WM transmitters (microphones) must match in frequency group for proper operation. Available frequency groups are H01 (suffix H01 US) or M1 (suffix AM RM1 D00)
SPECIFICATIONS:
Power Source | AC mains (supplied AC adapter must be used) |
---|---|
Power Consumption | 130 mA (12 V DC) |
Receiving Frequency | 506 ~ 608 MHz (*2), UHF |
Channel Selectable | 16 channels |
Receiving System | Double super-heterodyne |
Diversity System | Space diversity |
Mixing Output | MIC: -60 dB (*1), 600 Ω, balanced, XLR-3-32 type connector LINE: -20 dB (*1), 600 Ω, unbalanced, phone jack |
Mixing Input | -20 dB (*1), 10 kΩ, unbalanced, phone jack |
Antenna | Whip antenna |
Receiving Sensitivity | 90 dB or more, Signal to Noise ratio (20 dBμV input, 40 kHz deviation) |
Squelch Sensitivity | 16 - 40 dBμV variable |
Squelch System | Using together of noise SQ, carrier SQ and tone SQ |
Tone Frequency | 32.768 kHz |
Indicator | ANT A/B, Audio (peak), Battery alarm, Channel number |
Channel Check | Usable frequencies scanning |
Signal to Noise Ratio | 104 dB or more (A-weight, unbalanced output) |
Harmonic Distortion | 1 % or less (typical) |
Frequency Response | 100 Hz - 15 kHz, ±3 dB |
Operating Temperature | -10 ℃ to +50 ℃ (14 ゜F to 122 ゜F) |
Operating Humidity | 30 % to 85 %RH |
Finish | Resin, black |
Dimensions | 206 (W) × 40.6 (H) × 152.7 (D) mm (8.11" × 1.6" × 6.01") (excluding antenna) |
Weight | 590 g (1.3 lb) |
Accessory | AC adapter (*3)…1 |
