Product Description

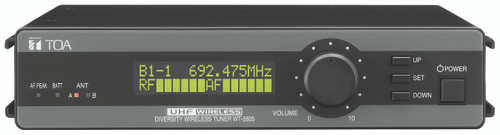

TOA WT-5805-H01US Wireless Space Diversity Tuner Frequency Band H01
The wireless tuner WT-5805 is rely on Phased Lock Loop(PLL)synthesis for excellent performance levels, stability and reliability. Oscillation frequency changes caused by changes in ambient temperature are kept to a minimum. For a dramatic reduction in noise during changeover between antennas, space diversity is now employed. A channel search function is incorporated in all tuners, and a two-line LCD display enables faster meter reading. Remaining battery power indication is also provided.
*When ordering, WT receivers and WM transmitters (microphones) must match in frequency group for proper operation. Available frequency groups are H01 (suffix H01 US) or M1 (suffix AM RM1 D00)
SPECIFICATIONS:
Power Source | AC mains (supplied AC adapter must be used) |
---|---|
Power Consumption | 200 mA (12 V DC) |
Receiving Frequency | 506 ~ 608 MHz (*2), UHF |
Channel Selectable | 64 selectable frequencies |
Receiving System | Double super-heterodyne |
Diversity System | Space diversity |
Mixing Output | MIC/LINE (selectable): -60 dB (*1) (MIC)/-20 dB (*1) (LINE), 600 Ω phone jack (unbalanced), 600 Ω XLR-3-32 type connector (balanced) |
Mixing Input | -20 dB (*1), 10 kΩ, unbalanced, phone jack |
Antenna Input | 75 Ω, BNC (phantom powering for antenna), 9 V DC, 30 mA (max) |
Receiving Sensitivity | 90 dB or more, Signal to Noise ratio (20 dBμV input, 40 kHz deviation) |
Squelch Sensitivity | 16 - 40 dBμV variable |
Squelch System | Using together of noise SQ, carrier SQ and tone SQ |
Tone Frequency | 32.768 kHz |
Indicator | Audio (6 steps), RF (6 steps), ANT A/B, Audio (peak), Battery alarm |
Channel Check | Usable frequencies scanning |
Signal to Noise Ratio | 110 dB or more (A-weight, unbalanced output) |
Harmonic Distortion | 1 % or less (typical) |
Frequency Response | 100 Hz - 15 kHz, ±3 dB |
Operating Temperature | -10 ℃ to +50 ℃ (14 ゜F to 122 ゜F) |
Operating Humidity | 30 % to 85 %RH (no condensation) |
Finish | Resin, black |
Dimensions | 210 (W) × 44 (H) × 205.1 (D) mm (8.27" × 1.73" × 8.07") |
Weight | 700 g (1.54 lb) |
Accessory | AC adapter (*3)…1, Whip antenna…2, Rubber foot…4 |
Option | Mounting bracket kit: MB-WT3 (for rack mounting one WT-5805 unit) |
