Product Description

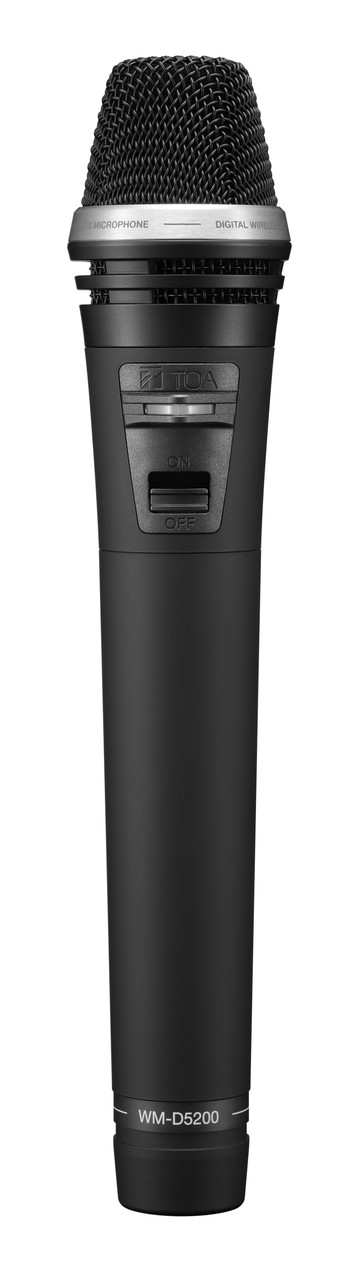

TOA WM-D5200-H1D00 Digital UHF Wireless Handheld Microphone Frequency Band H01
The WM-D5200 Digital wireless microphone employs an electret condenser microphone capsule and is suitable for any applications.
This wireless microphone employs a digital transmission system that is effectively immune to interference. Further, not only does TOA's unique information concealment technology (Encryption Setting function) ensure high confidentiality and security against eavesdropping, but their code setting and transmission output such as use of the same transmission channel between adjacent areas.
SPECIFICATIONS:
Microphone Element | Electret condenser unit: Unidirectional |
---|---|
Modulation type | FSK |
Frequency Range | H1: 576 - 606 MHz |
Channel Selectable | 160 channels (The number of channels may differ from country to country.) |
RF Carrier Power | Less than 50 mW |
Maximum Input Level | 132 dB SPL (Sensitivity: L)/122 dB SPL (Sensitivity: H) |
Audio Frequency Response | 100 Hz - 12 kHz |
Antenna | Built-in type |
Dynamic Range | Typ. 90 dB (when used with WT-D5800) |
ID Selectable | 10 patterns |
Battery | WB-2000 rechargeable battery (option) or AA Alkaline dry cell battery |
Battery Life | Approx. 8 hours |
Operating Temperature | -10 ℃ to +50 ℃ (14 ゜F to 122 ゜F) (except battery) |
Operating Humidity | 30 % to 85 %RH (no condensation) |
Finish | Body: ABS resin, black, coating Head: Steel, black, paint |
Dimensions | φ47 × 239.5 mm (φ1.85 × 9.43 in) |
Weight | 220 g (0.49 lb) (with battery) |
Accessory | Storage case …1, Screw driver (for setting) …1, Microphone holder …1 |
