Product Description
TOA V-01S Remote Master Volume Control Module
The V-01S is a plug-in type VCA module designed to be used in conjunction with TOA's 900 Series and BG-2000 Series amplifiers. Its 3P terminal block is equipped with a 24 V output that supplies power to an external controller, and a control input. The gain between IN and OUT is set within the range of –100 to 0 dB referenced to the 0 – 10 V control voltage.
SPECIFICATIONS:
| Power Source | 24 V DC |
|---|---|
| Current Consumption | Under 25 mA |
| Maximum Allowable Input | +14 dB* |
| Noise Output (20 Hz - 20 kHz BPF) | Under 50 μV |
| Distortion (1 kHz, 1 V) | Under 0.03 % |
| Frequency Response | 20 - 20,000 Hz (±1 dB) |
| Input Connector | RCA pin jack |
| Output Connector | RCA pin jack |
| Dimensions | 35 (W) × 78 (H) × 88 (D) mm |
| Weight | 51 g |
APPLICATIONS:
Airports
Audio/Visual
Auditoriums / Theatres
Banks
Bars / Lounges / Nightclubs
Boardrooms
Business Music
Conference Facilities
Convenience Stores
Educational Facilities
Fitness Clubs / Gymnasiums
Hotels / Hospitality
Houses of Worship
Industrial / Warehouses
Museums
Music Distribution
Offices
Public Address
Restaurants
Retail Stores
Theme Parks
Training Rooms

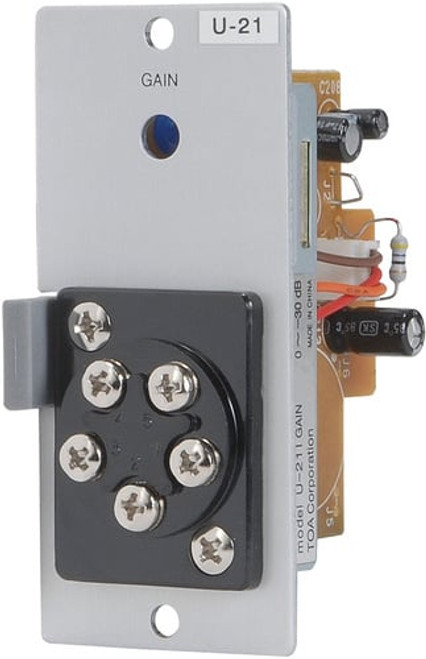

APPEARANCE:
