Product Description

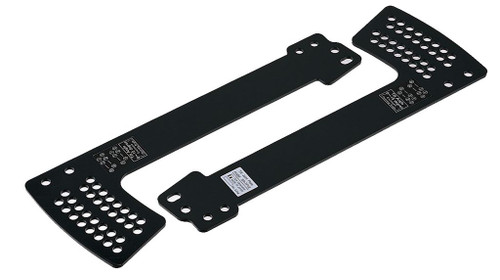

TOA SR-TP8 Tilt Joint Mounting Bracket
The SR-TP8 Tilt Joint Bracket is designed to tilt the line array speaker in the lowermost position downward when stacked. It comes in a set of 2 brackets.
- TOA's unique wave front control technology creates a uniform sound distribution field with interference-free high frequency output, realizing high-clarity acoustic characteristics and long sound transmission capabilities.
- The line array speakers are designed to allow easy rear access for maintenance work.
- Overlap angles between individual speakers can be set in 1 degree units between 0 and 5 degrees when constructing the line array speaker, making it possible to flexibly control speaker directivity.
SPECIFICATIONS:
Applicable Speaker | SR-C8L, SR-C8S |
---|---|
Variable Angle Range to be Mounted | 5゜ - 15゜ |
Finish | Steel plate, black, paint |
Weight | 1.7 kg (3.75 lb) (1 pair) |
TOA Type C speakers are module-type 2-way line array speaker systems featuring a 20-cm (8") low-frequency Neodymium woofer and two 2.5 cm (1") Neodymium drivers. They are designed to take advantage of original TOA phase wave front control technology, enabling creation of a sound field combining clear audio reproduction and uniform sound dispersion. Type C speakers consist of six models: one with a 15° vertical sound dispersion angle, making it ideal for shorter distance applications, another with a 5° vertical dispersion angle, intended for longer range sound dispersion applications, and a 38-cm (15") subwoofer model. Each of these three models is also available in a splash-proof (IPX4) variation. Combining different types of speakers enables creation of an optimal sound delivery system to specified areas. Type C speaker are designed to provide superior audio even in such often inhospitable applications as stadiums, arenas and airports.
Models available: SR-C8L, SR-C8LWP (weather proof), SR-C8S, SR-C8SWP (weather proof)
Type C speakers feature TOA proprietary "Sync-Drive" wave guide technology, to provide a uniform, high frequency sound field offering excellent sound clarity and minimal interference. Thanks to the well thought-out design of the speaker's phase wave-front control technology, high-fidelity sound is produced without causing attenuation of high-frequency sound. By changing the position of an internal connector, Type C series speakers can be used in single or bi-amp mode. SR-C8LWP/SR-C8SWP/SR-C15BWP are available to widen the range of potential applications. More flexible installation options are made possible thanks to a selection of available mounting brackets.
