Product Description

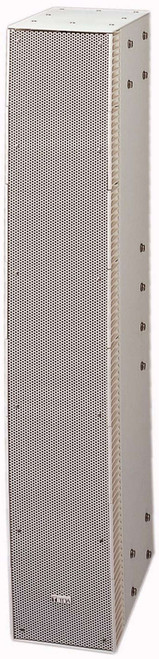

TOA SR-S4LWP Weather Proof Straight Long Throw 2-Way Line Array Speaker System
The SR-S4LWP is a two-way line array speaker ideal for long distance sound transmission and configures a line array by arranging speaker elements vertically close to each other. It satisfies the water protection requirements set down in the IPX4 Standard. It can be converted into the bi-amplifier drive system by changing the internal connection. It can be used for high-impedance applications with the installation of the optional MT-S0601 Matching Transformer.
SPECIFICATIONS:
Enclosure | Sealed type |
---|---|
Power Handling Capacity | Continuous program: 600 W (single-amp mode) Low 240 W, High 240 W (bi-amp mode) |
Rated Impedance | 8 Ω (single-amp mode) Low 8 Ω, High 8 Ω (bi-amp mode) |
Sensitivity | 94 dB (1 W, 1 m) |
Frequency Response | 70 - 20,000 Hz (when using DP-0206* (option)) |
Crossover Frequency | 3,500 Hz |
Directivity Angle | Horizontal: 90゜, Vertical: 0゜ (within the range of speaker height) |
Speaker Component | Low frequency: 10 cm cone-type × 8 High frequency: 2.5 cm balanced dome-type × 24 |
Connected Cable | Direct cable withdrawal from internal speaker: φ8.6 mm, conductor cross section: 1.25 m㎡, 4-core cable, 3 m |
Operating Temperature | -10℃ to +50℃ |
Water Protection | IPX4 |
Finish | Enclosure: Plywood, white, urethane coating Front grille: Punched stainless steel (SUS304), white, paint |
Dimensions | 160 (W) × 895 (H) × 255 (D) mm (excluding connected cable) |
Weight | 16 kg |
Accessory | Bi-amplifier drive rating label …1, Bi-amplifier drive input indication label …1 |
Option |
Matching transformer: MT-S0601, Extension plate: SR-EP4WP, |
The compact SR-S Series Slim Line Arrays are the ideal choice for applications requiring clear speech intelligibility such as houses of worship, AV presentation and educational facilities. Models include the SR-S4L (long-throw) and the SR-S4S (short-throw) speakers, each with eight 4" cone drivers and twenty-four 1" balanced dome tweeters, all aligned to form a continuous linear sound source. Options include weather resistant models, multiple mounting hardware options and 70V transformer. The SR-S Series are backed with a five year warranty.
Models available: SR-S4L, SR-S4LWP (weather proof), SR-S4S, SR-S4SWP (weather proof)
* Note: For outdoor installation, it is recommended that they are installed under roofs, eaves, or in other locations not directly exposed to rain or snow.
