Product Description

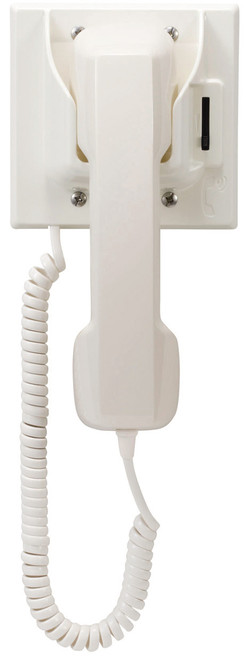

TOA RS-141 IP Intercom Option Handset
The RS-141 is the handset option for the RS-140, RS-142, RS-143 and RS-144 call panel substations. It provides for automatic call-in when the handset is lifted from its cradle. The volume control provides an adjustment range of 6dB for local level control. Wall mounting is achieved using a standard US 2-gang flush or wall mount box.
SPECIFICATIONS:
Handset Transmitter | Electret condenser type |
---|---|
Wiring | Two-core shielded cable |
Handset receiver volume control | Slide volume, Maximum control level: 12 - 18 dB |
---|---|
Operating Temperature | 0 %%dC to +40 %%dC (32 ゜F to 104 ゜F) |
Finish | ABS resin, pale white |
Dimensions | 116 (W) × 220 (H) × 71 (D) mm (4.57" × 8.66" × 2.8") |
Weight | 350 g (0.77 lb) |
Accessory | Box mounting screw (No.6-32UNC × 18) ……4, Box mounting screw (M4 × 25) ……4 |
Applicable Box | For flush-mount: 2-gang electrical box YC-302 (option) For surface-mount: Indoor wall-mount box YC-822 (option) |
Handset Receiver | Dynamic type |
---|
