Product Description

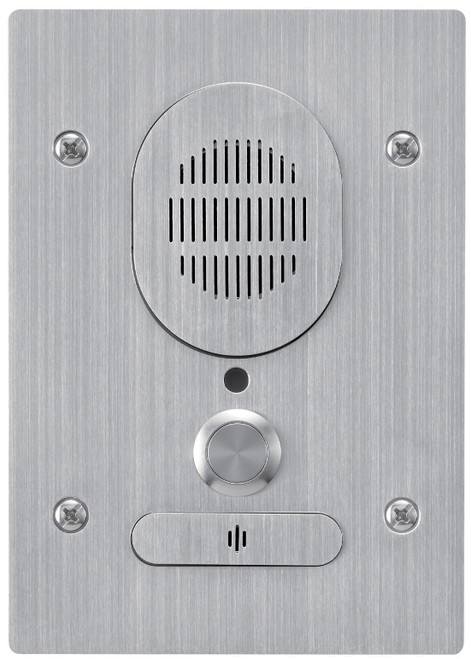

TOA Q-N8050WP Outdoor Weather Resistant Door Station
The Q-N8050WP is a weather resistant door station designed to connect to an N-8000EX or N-8010EX intercom exchange. It provides high quality, hands-free conversation with a master station on an N-8000 system. The Q-N8050WP is IP54 rated with additional protection for the PCB It includes a remote controllable open collector control output (momentary 1-9 seconds). The Q-N8050WP supports the audio trigger function. Requires 3-gang back box.
SPECIFICATIONS:
| Power Source | 48 V DC (Supplied from the IP Intercom exchange (option)) |
| Power Consumption | 1.8 W (at rated), 2.4 W (max.) |
| Wiring Method | Non-polar one pair straned wire system |
| Transmission System | 2 wire 160 kbps echo canceller transmission system |
| Signal Level | Under 0 dB* |
| Speech Method | Hands-free conversation |
| Audio Frequency Range | 300 - 7,000 Hz |
| Transmission Range | Max. 1500 m (⌀0.65 mm. Loop resistance 170Ω) |
| Hands-free | Speaker: 3.5cm cone-type, 1W, 8 Ω Microphone: Omni-directional electret condenser microphone |
| Contact Output | Open collector output, withstand voltage: Max. 30 V DC, control current: Max. 50 mA, one shot: can be set from 1 to 9 s, scre terminal (polarized) |
| Line Connecting Terminal | 2 wire, scre terminal (non-polar) |
| Settting Method | Flush-mount / Surface-mount |
| Operating Temperature | -10° to +50°C (14° to 122°F) |
| Operating Humidity | Under 90% RH (no condensation) |
| Housing Protection | BS EN62262: 2002: IK02 equivalent |
| Dust / Water Protection | IP 54 (note that panel edges must be sealed at installation.) |
| Resistance to Environment | Pass our gas corrosion test and neutral salt spray test |
| Finish | Plate: Stainless steel (SUS304), hairline Call button: Metal Circuit board: Silicone sealing agent-coated board |
| Dimensions | 115 (W) x 162 (H) x 54 (D) mm (4.53" x 6.38" x 2.13") |
| Weight | 680g (1.5 lbs) |
| Accessory | Box mounting screw (No. 6 - 32 UNC x 18)...4, Box mounting screw (M4 x 25)...4 |
| Applicable Box (Option) | For flush mount: 3-gang electrical box or Back Box YC-150 For wll mount: Wall-mount Box YS-13A |
