Product Description

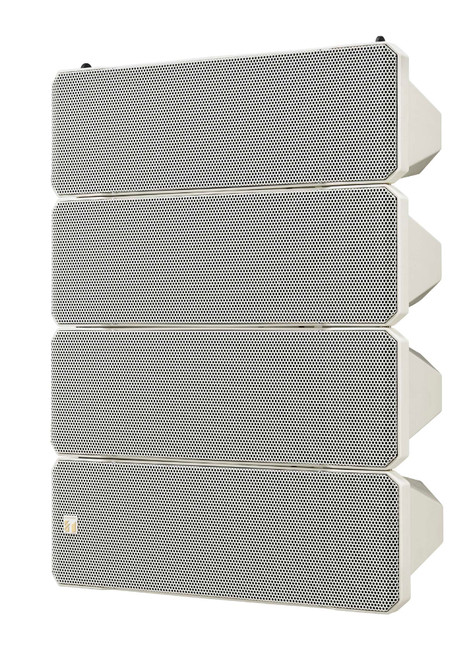

TOA HX-5W White 600W Variable Dispersion Speaker
The HX-5W is a 2-way compact speaker system that permits both constant directivity control over a wide frequency range and changes in directivity. It is ideal for reproducing clear sound in spaces with long reverberation times or high background noises. The HX-5B is designed for indoor use.
Enclosure | Bass-reflex type |
---|---|
Power Handling Capacity | Continuous pink noise: 200 W, Continuous program: 600 W |
Rated Impedance | 8 Ω |
Sensitivity (1 W, 1 m) | 96 dB (60゜ mode), 97 dB (45゜ mode), 98 dB (30゜ mode), 99 dB (15゜ mode) |
Frequency Response | 70 Hz - 20 kHz (-10 dB) (60%%d mode), 75 Hz - 20 kHz (-10 dB) (45%%d mod]e), 80 Hz - 20 kHz (-10 dB) (30%%d mode), 85 Hz - 20 kHz (-10 dB) (15%%d mode) |
Crossover Frequency | 4 kHz |
Directivity Angle | Horizontal: 100゜ (2 kHz or more) Vertical: 60゜ (800 Hz or more), 45゜ (1.2 kHz or more), 30゜ (1.6 kHz or more), 15゜ (3.2 kHz or more) variable |
Speaker Component | Low frequency: 12 cm cone-type × 4, High frequency: Balanced dome-type × 12 |
Input Terminal | Speakon NL4MP × 2 and M4 screw terminal |
Finish | Enclosure: Polypropylene, white Punched net: Surface-treated steel plate, white |
Dimensions | 408 (W) × 546 (H) × 342 (D) mm |
Weight | 16 kg |
Accessory | Hanging bracket …2, Hex. wrench …1 |
Option | Matching transformer: MT-200 Speaker mounting bracket: HY-PF1W, HY-CW1W, HY-WM1W, HY-WM2W, HY-CN1W Speaker stand adapter: HY-ST1 |
If you design and install speaker systems using conventional two-way box speakers, you know that pattern control in the voice frequency range can be difficult to manage, especially in reverberant spaces. The TOA HX-5 Variable Dispersion Speaker offers a radically different approach to speaker design with four adjustable dispersion angles -- 60, 45, 30 and 15 degrees -- that you can change in seconds! Best of all, you get pattern control below 1kHz in a compact and lightweight enclosure that's perfect for a multitude of applications. Think of it as the most versatile "building block speaker" in your toolkit.
Features include high power handling (600 Watts continuous), lightweight polypropylene construction, available in black and white, plus Speakon and screw terminal connectors. The HX-5 can vertically or horizontally mounted with the built-in bracket or with optional wall, ceiling and stand-mount hardware. Other options include weather-resistant versions, FB-120 subwoofer and 70 volt matching transformer. The new HX-5 speakers are backed with a five year product warranty.
Models available: HX-5B, HX-5B-WP (weather proof), HX-5W, HX-5W-WP (weather proof)
* Note: For outdoor installation, it is recommended that they are installed under roofs, eaves, or in other locations not directly exposed to rain or snow.
Subwoofer
The FB-120B or FB-120W is a compact, indoor-use subwoofer system employing a high-power 12” (30cm) woofer. It is designed for use in conjunction with TOA’s HX-5 Series or other full range speakers, and is particularly ideal for reproducing dynamic low-frequency sound for both permanent and temporary installations. Click here for more information.
