Toa CX-RM1700 Touch Screen Remote Microphone
Overview
The CX-RM1700 is a Touch screen type remote microphone designed for the CX-1000 series IP communication system. By simply connecting this remote microphone to a network (LAN or WAN), audio broadcasts can be announced to the intercom stations, audio units, and amplifier units using the microphone or audio source devices connected to the audio input of this remote microphone. In addition, by registering audio files in the remote microphone's built-in memory, Chime broadcasts can be made with arbitrary content. The intuitive operation is available owing to the Touch screen LCD and the direct keys to which arbitrary functions can be assigned. Power can be supplied from a PoE-compatible switching hub (in this case, an optional AC adapter is not required). Images from the ONVIF®-Compatible IP cameras can be displayed.
Features
- 5-inch touch screen LCD and direct keys for intuitive operation
- Equipped with an electret condenser microphone
- Built-in dynamic speaker with 1 W max output
- Supports key audio codecs including G.722 and PCM
- 1 control input and 1 relay output for external device integration
- 2 control inputs, 1 control output and 1 mute control input
- Dual LAN ports with PoE support on LAN A
- PoE (IEEE802.3af compliant) or 12 V DC power

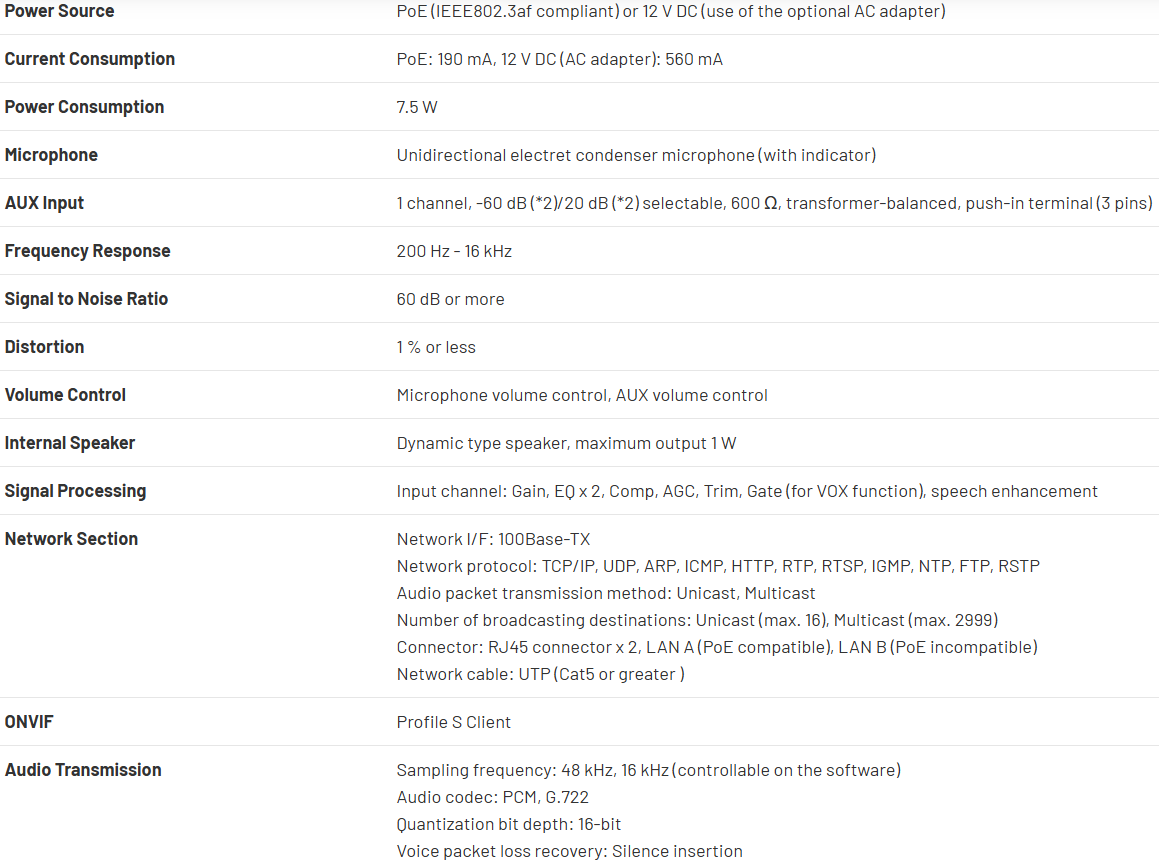

Specifications
