Product Description
Toa CX-CC1016 Control I/O Unit
Overview

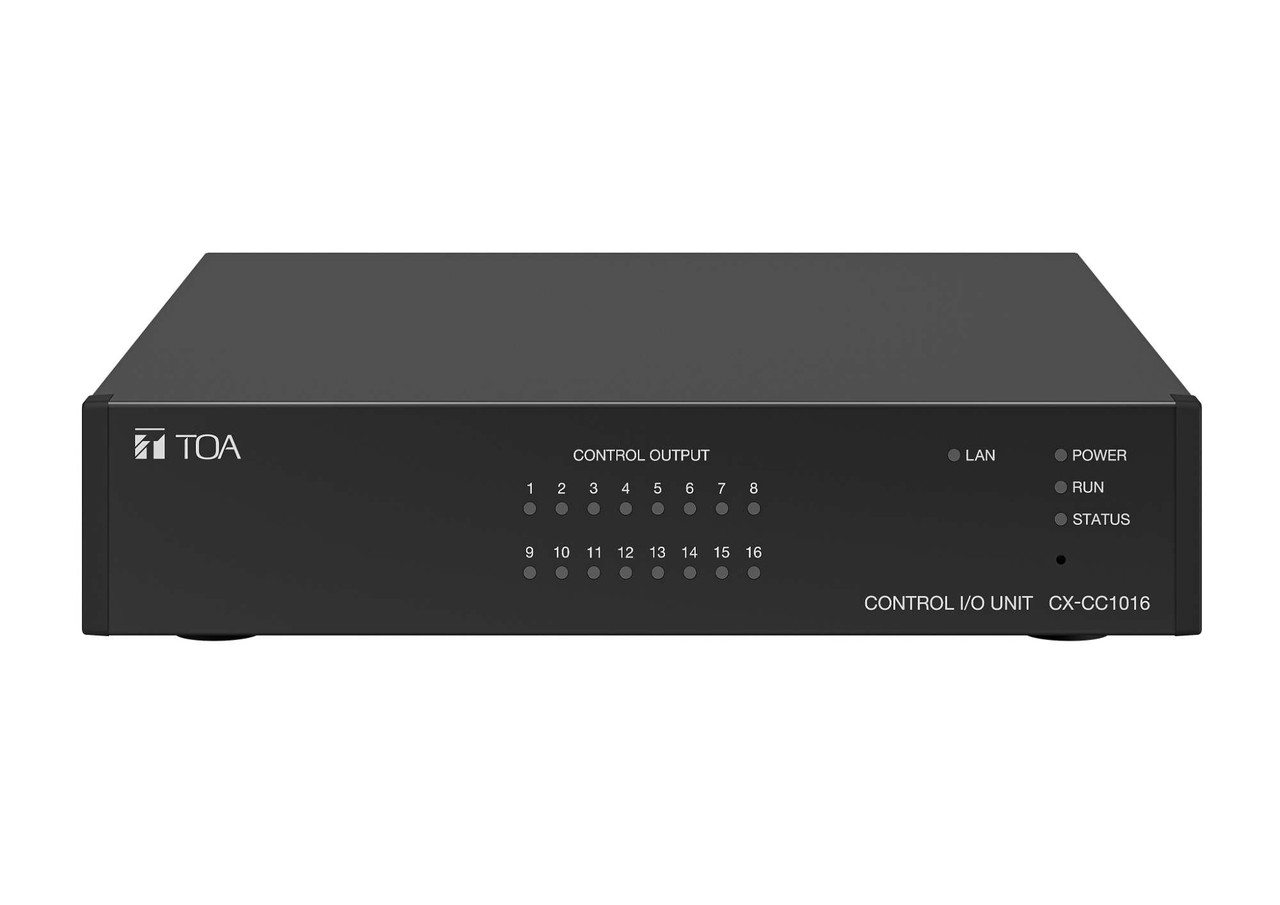

The CX-CC1016 is a Control input/output unit having 16 control inputs and 16 control outputs designed for the CX-1000 series IP Communication system. By connecting this unit to a network (LAN or WAN), you can control external devices connected to the units in the configured CX-1000 system, enable various types of calls, activate broadcasts, and set other functions as needed. The output status can be confirmed with the front panel-mounted indicators.
Features
- 16-channel relay inputs and outputs control unit for external device integration
- Supports no-voltage dry contact inputs with 24 V DC open voltage
- Maximum relay contact capacity of 30 V DC/1.0 A for outputs
- Single LAN port with 100Base-TX network interface
- Reset key for easy system reboot
- Compact design for desktop, rack, or wall mounting
- 24 V DC power input with removable terminal block

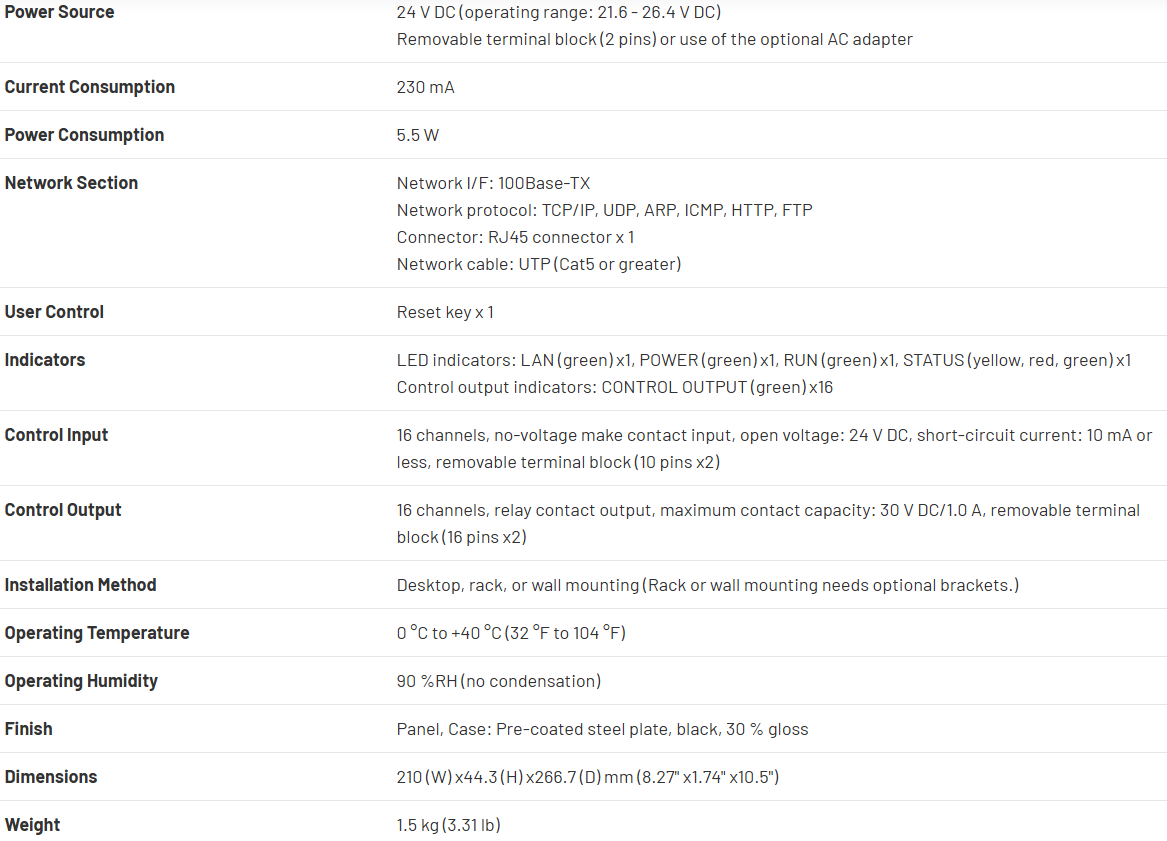

Specifications
