Product Description
Toa CX-AF1062 Audio Interface 6 in 2 Out
Overview
The CX-AF1062 is an Audio interface designed for the CX-1000 series IP communication system that features decentralized distribution configuration. By simply connecting to a network (LAN or WAN), it is possible to make audio announcements from the microphone or audio source devices connected to this unit to the intercom stations or amplifier units. By registering audio files in the unit's built-in memory, Chime broadcast and EV broadcast can be performed. It is equipped with 6 analog audio inputs and 2 analog audio outputs. You can adjust the volume for each audio input/output channel using the front panel-mounted volume knob or by software. In addition, the sound quality for each audio input/output channel can also be adjusted by software. Announcements and various functions can be started or stopped using the front panel-mounted direct keys.
Features
- Supports 6 balanced audio inputs and 2 balanced audio outputs
- Comprehensive volume control with 6 inputs and 2 outputs
- Signal processing with Gain, EQ, Comp, AGC, Trim, Gate (VOX)
- Network support with dual RJ45 connectors and key protocols
- Unicast and multicast audio packet transmission
- 10 direct keys and multiple LED indicators
- 10 control inputs and 10 control outputs for external device integration
- Desktop, rack, or wall mountable for flexible installation

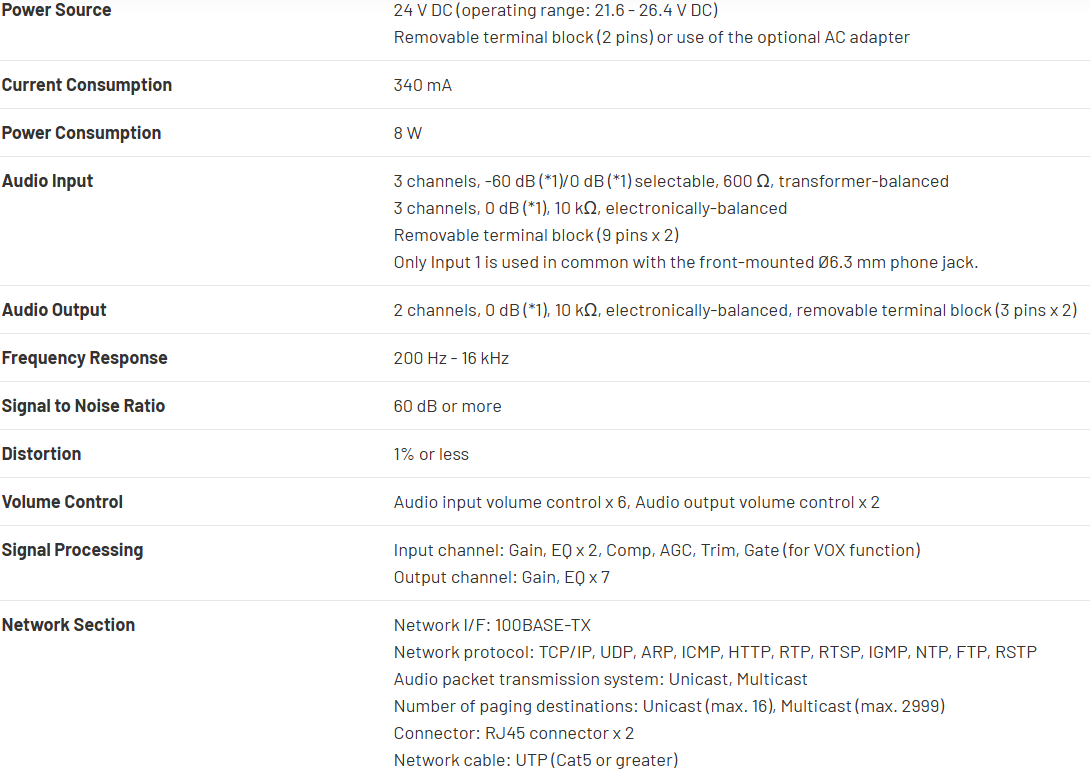

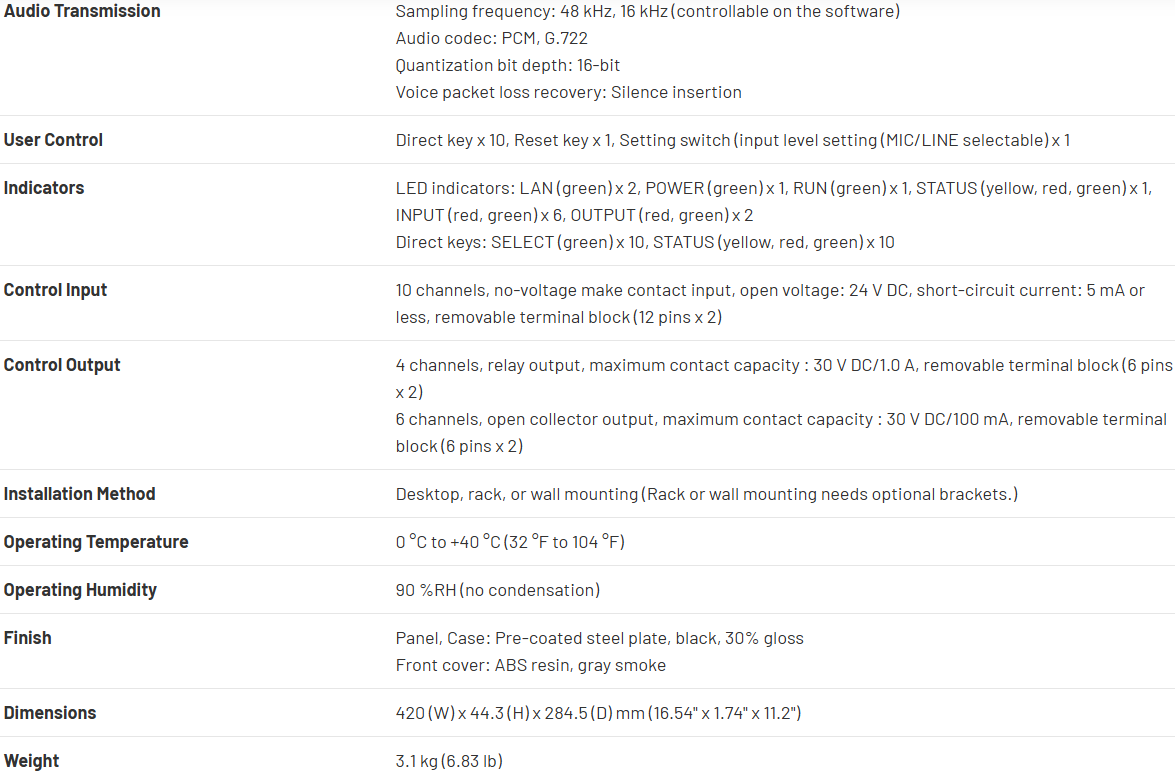

Specifications
