Product Description
TOA CA-115 Mobile Mixers & Amplifier
The CA-115 is a 1-DIN size unit 15 W car amplifier designed for use with a 12 V car battery.
Power Source | Standard voltage: 14 V DC Usable voltage: 10 - 16 V DC (12 V battery used) |
---|---|
Power Consumption | 3 A or less at rated output |
Rated Output | 15 W |
Output Impedance | 4 Ω (BRN), 8 Ω (ORG), Common (WHT) Changeable by changing lead wire connections |
Distortion | Less than 5% (at 1,000 Hz rated output) |
Frequency Response | 100 - 10,000 Hz |
Input | Mic1, 2: 600 Ω, 4 mV, phone jack Aux : 10 kΩ, 500 mV, phone jack |
Finish | Front panel: ABS resin, black Case : Zinc plated steel sheet |
Dimensions | 178 (W) × 50 (H) × 132 (D) mm (Mounting device excluded) |
Weight | 900 g |
Accessory | Microphone holder …… 1, Mounting bracket …… 1, Mounting screw …… 1set, Fuse (4 A) …… 1, Connection cord …… 1set |
Accessory Microphone | Unidirectional dynamic type with talk switch Impedance: 600 Ω Sensitivity : -53 dB (1 kHz, 0 dB = 1 V/Pa) |

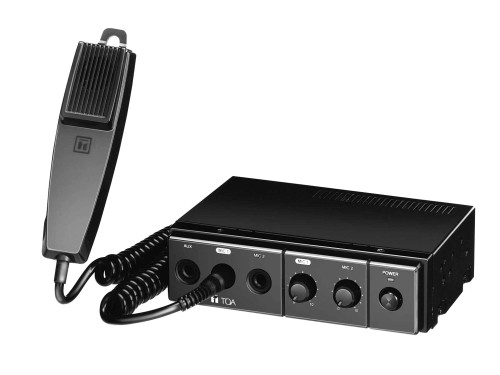

TOA CA SERIES MOBILE MIXER/amplifier are ideal for remote applications requiring a compact and powerful mixer/amplifier for public address or emergency paging. Three CA Series models, the CA-115 (15 W), CA-130 (30 W) and CA-160 (60 W) are each powered with a standard 12 Volt DC battery and operate into four or eight ohm speaker loads. All models include two microphone inputs with individual volume controls, a handheld microphone with talk switch, and an auxiliary input for connecting an external CD player, radio, tape deck or tone generator. All mounting hardware is included for easy installation under dashboard or into a standard console cutout. The CA Series Mobile Mixer/amplifier are backed with a five year warranty.
