Product Description
SoundTube DS31-EZ-CS Designer Sleeve Hanging Speaker
Overview
The Designer Sleeve DS31-EZ pendant speakers were developed to offer varying aesthetic options for open ceiling and near space applications that require a design element to meet décor needs. The speaker can be used with or without the sleeve based on the desired look with multiple contemporary slide-on sleeves to match any aesthetic. The speakers blend well with drop lighting and are available in silver (DS31-EZ-SL), black (DS31-EZ-BK), and white (DS31-EZ-WH).
What's included:
• Designer Sleeve Pendant Speaker

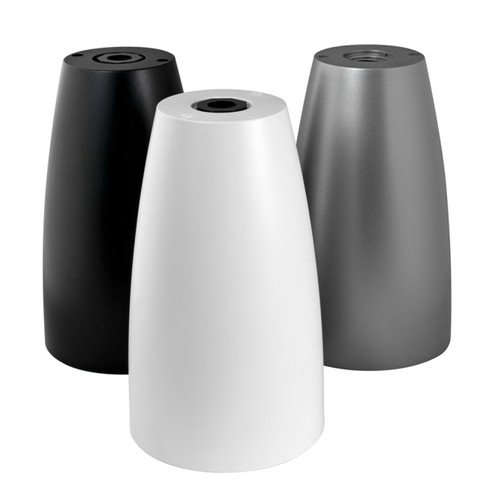

• Cylindrical Sleeve
• Magnetic Grille
• Surface-Mounting Bracket
Specifications
| Manufacturer | SoundTube |
|---|---|
| Manufacturer's Category | MM/DS Contemporary Pendants |
| Height | 8.5 in / 215.9 mm |
| Width/Diameter | 5.5 in / 139.7 mm |
| Shipping Weight | 6 lbs / 2.72 kg |
| Certifications | CE, RoHS |
| Enclosure Properties | ABS |
| Included Accessories | Grille, Hanging Hardware, Mounting Assembly, Wire Nuts, Designer Sleeve |
| Source Inputs | Wire Leads |
| IP Rating | IPX6 |
| Coverage Angle (±6dB @ 2kHz) | 90° |
| Directivity Factor (Q) (Averaged 100Hz - 10kHz, @ 2kHz) | 4.9 and 7.1 |
| Directivity Index (DI) dB (Averaged 100Hz - 10kHz, @ 2kHz) | 5.1 dB and 8.5 dB |
| Frequency Response (± 10 dB) | 80 Hz - 20 kHz |
| Frequency Response (± 3 dB) | 115 Hz - 14 kHz |
| Grille Properties | Magnetic, Powder-Coated, Steel |
| Max. Continuous Power RMS | 30 W |
| Max SPL @ 1M | 97.2 dB RMS, 112 dB Max |
| Max. Program Power | 60 W |
| Nominal Impedance (Ω Ohms) | 8 Ω |
| Fullrange Driver | 3" Polypropylene driver with butyl rubber surround |
| Sensitivity dB @ 1W/1M | 87 dB |
| Tap Selector | Rotary Switch |
| Transformer Options | 25 / 70.7 / 100 V, 8 Ohm direct |
| Transformer Taps Max. Setting (25V/70.7V/100V) | 5W/20W/20W |
