Product Description

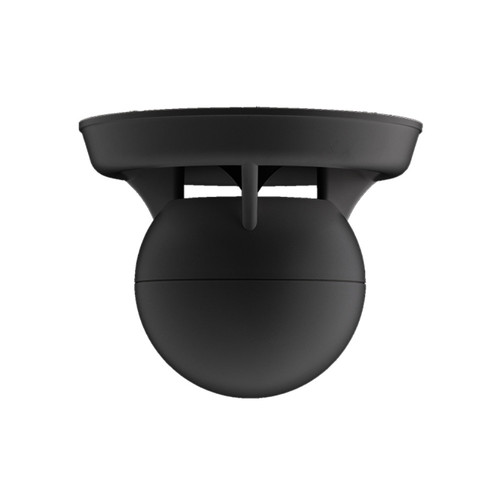

Soundsphere SS-110B Loudspeaker
Overview
The Soundsphere 110B is great for seamless background music & clear voice announcements at supermarkets & retail stores, factories, warehouses, courtrooms, classrooms & other educational facilities, stadium or arena concourses, gift shops & rest rooms, airports & transportation centers, office building reception areas, restaurants, casinos, shopping center common areas as well as food courts, and anywhere background music and articulate voice announcements are required. The Soundsphere Model 110B loudspeaker was designed to provide clear voice announcements, seamless background music and even, omnidirectional coverage. The Model 110B is a compact, unobtrusive speaker that is just 10" in diameter and offers fast distributed system installation. Accessories will be factory installed. If in doubt as to your application®'s requirements, please consult with Customer Service at the Soundsphere factory. The Model 110B is light weight which allows many mounting possibilities, using either our hanging kit or mounting bracket. Colors available in gloss black or textured white. Transformer sold separately.
Specifications
Manufacturer | Soundsphere |
---|---|
Manufacturer's Category | Spherical Loudspeakers |
Height | 11.89 in / 302 mm |
Width/Diameter | 14.88 in / 378 mm |
Shipping Weight | 11.02 lbs / 5 kg |
Carton Height | 13 in / 330.2 mm |
Carton Length | 16 in / 406.4 mm |
Carton Width | 16 in / 406.4 mm |
Certifications | CCC, RoHS |
Enclosure Properties | Sealed, Structural Foam Polystyrene |
Optional Accessories | Hanging Hardware |
Source Inputs | Wire Leads |
TAA Compliant (Trade America) | Yes |
BAA Compliant (Made in USA) | Yes |
Coverage Angle (±6dB @ 2kHz) | 155° |
Frequency Response (± 10 dB) | 100 Hz - 20 kHz |
Low Frequency Voice Coil | 1 in / 25.4 mm |
Max. Continuous Power RMS | 35 Watts |
Max SPL @ 1M | 108dB |
Minimum Impedance (Ω Ohms) | 4 Ω |
Nominal Impedance (Ω Ohms) | 4 Ω |
Fullrange Driver | 6.5" Treated pulp fiber |
Power for Max SPL | 35 W |
Sensitivity dB @ 1W/1M | 93 dB |
Sensitivity dB @ 2.83V/1M | 96 dB |
Tap Selector | Wire Leads |
Transformer Taps Max. Setting (25V/70.7V/100V) | 30W/30W/30W |
