Product Description

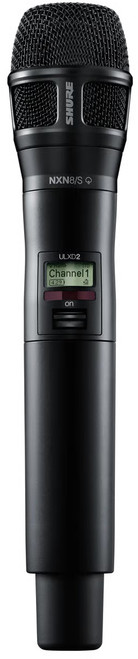

Shure ULXD2/N8SN HH Transmitter with Nexadyne 8/S Supercardioid Microphone, Nickel

Overview

Experience secure and reliable transmission with AES 256-bit encryption in the ULXD2/N8 Handheld Wireless Microphone Transmitter. This transmitter features proprietary Shure Gain Ranging, ensuring optimal dynamic range for any input source without the need for annoying adjustments. You can enjoy over 12 hours of battery life with the optional Shure SB900B lithium-ion rechargeable battery pack, plus precision metering and zero memory effect.

Equipped with patented Shure Revonic™ dual-engine transducer technology, the Nexadyne 8/S Dynamic capsule features two precisely calibrated transducers that work together flawlessly to deliver exceptional performance. Experience top-tier acoustic signal processing, uncanny polar pattern linearity, and best-in-class noise reduction. The focused and natural supercardioid polar pattern ensures that your vocals are front and center while rejecting noise from the back and sides.

The rugged metal construction, backlit LCD, and intuitive controls make this transmitter a versatile and user-friendly option. Additionally, features like transmitter mute mode, external charging contacts, and frequency and power lockout enhance functionality and convenience, making it ideal for use with ULX-D Wireless Systems.

Features

• AES 256-bit encryption for applications for which secure transmission is needed
• Proprietary Shure Gain Ranging optimizes the system’s dynamic range for any input source, eliminating the need for transmitter gain adjustments
• Optional Shure SB900B lithium-ion rechargeable battery pack provides over 12 hours of battery life, precision metering in hours and minutes, and zero memory effect
• External charging contacts for docked charging (with the SBC200 Dual Docking Charger)
• Transmitter Mute Mode repurposes the On/Off switch into a mute switch, enabling audio muting while preserving RF channel presence
• Backlit LCD with easy to navigate menu and controls
• Rugged metal construction
• Frequency and power lockout
• The ULXD2/N8 Handheld Wireless Microphone Transmitter works with ULX-D Wireless Systems, and features the Nexadyne™ 8/C cardioid dynamic microphone with Revonic™ Transducer Technology.

Includes

• 1 ULXD2/N8SB Handheld Wireless Microphone Transmitter
• 1 WA371 Mic Clip

Specifications

• Mic Offset Range: 0 to 21 dB (in 3 dB steps)
• Audio Frequency Response: Note: Dependent on microphone type
• Battery Type: Shure SB900B Rechargeable Li-Ion or LR6 AA batteries 1.5 V
• Battery Runtime @ 10 mW
  • Shure SB900B: >8 hours
  • alkaline: 9 hours
  • See Battery Runtime Chart
• Dimensions
  • VHF V50 and V51: 278 mm x 51 mm (10.9 in. x 2.0 in.) L x Dia.
  • Other frequency bands: 256 mm x 51 mm (10.1 in. x 2.0 in.) L x Dia.
• Weight
  • VHF V50 and V51: 348 g (12.3 oz.), without batteries
  • Other frequency bands: 340 g (12.0 oz.), without batteries
• Housing: Machined aluminum
• Audio Input
  • Configuration: Unbalanced
  • Maximum Input Level: 1 kHz at 1% THD145 dB SPL (SM58), typical Note: Dependent on microphone type
• RF Output
• Antenna Type: Integrated Single Band Helical
• Occupied Bandwidth:
• Modulation Type: Shure proprietary digital
• Power: 1 mW, 10 mW, 20 mW
• See Frequency Range and Output Power table, varies by region
