Product Description

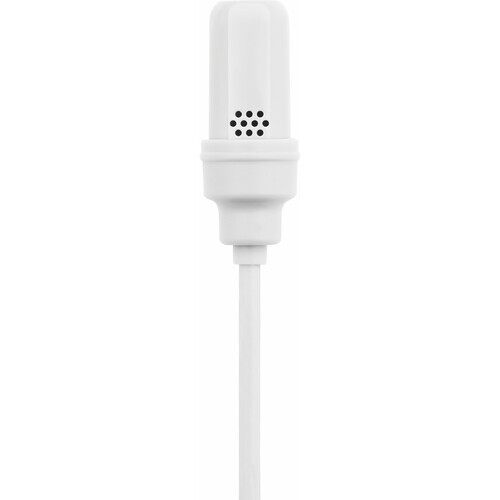

Shure UL4T/C-LM3-A UniPlex Cardioid Subminiature Lavalier Microphone for Bodypack Transmitter
Key Features
- For Speech and Presentation
- Cardioid Polar Pattern
- LEMO Connector for Shure Transmitter
- Unobtrusive 5mm Subminiature Capsule
- 1.6mm Shure Plex Cable
- Snap-Fit Windscreen, Single Tie Clip
- Carrying Case
Overview
This tan Shure UL4 UniPlex is a cardioid subminiature lavalier microphone equipped with a 3-Pin LEMO connector for compatible Shure wireless bodypack transmitters. Tailored specifically for speech, this professional microphone delivers superb directional capture of your voice for presentations, conferences, education, broadcast, and more.
The UL4 UniPlex features a 5mm subminiature capsule for unobtrusive placement on camera. With its directional pickup pattern, the mic offers high gain before feedback, making it well suited for speech at events with loud sound reinforcement. The thin, 1.6mm Shure Plex cable features a dual-redundant ground that serves as secondary shield, giving it added protection against electromagnetic interference (EMI) and unprecedented durability. The fully paintable cable is immune to memory effect and kinks.
Specifications
Sound Field | Mono |
Capsule | MEMS |
Polar Pattern | Cardioid |
Windscreen | Foam (Included) |
Frequency Range | 40 Hz to 20 kHz |
Maximum SPL | 130 dB SPL (1 kHz, 1% THD) |
Sensitivity | -42.5 dBV/Pa |
Dynamic Range | 98 dB (Typical) |
Signal-to-Noise Ratio | 62 dB A-Weighted |
Equivalent Noise Level | 32 dB SPL A-Weighted |
Outputs | 1 x LEMO 3-Pin (Lockable/Waterproof) |
Headphone Connector | None |
Cable Length | 66" / 1.7 m |
Cable Diameter | 0.1" / 1.6 mm |
Operating Voltage | 3.5 to 5 V |
Operating Current Consumption | 530 µA |
Color | Tan |
Mounting | Alligator Clip (Included) |
Construction Material | ABS |
Dimensions | ø: 0.2 x L: 0.7" / ø: 5 x L: 17 mm |
Weight | 0.4 oz / 12.5 g |
