Product Description

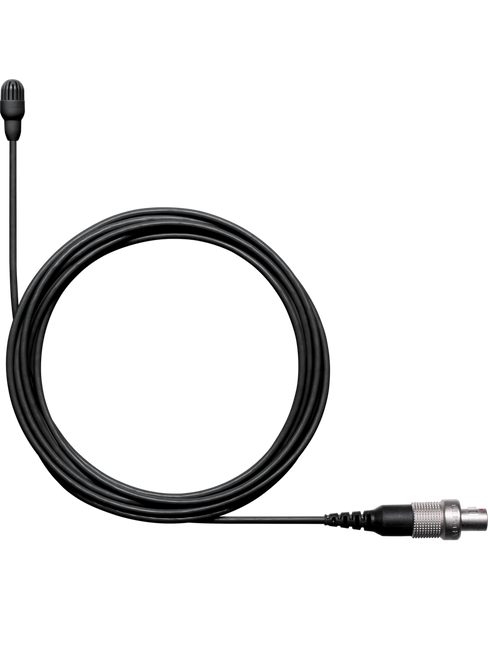

Shure TL46B/O TwinPlex Omnidirectional Subminiature Microphone, Black with LEMO Connector

Overview

Shure's TwinPlex TL46: Superior Performance in Dialogue and Medium SPL Applications
Shure's TwinPlex TL46 is the ideal choice for those seeking the highest quality sound for their dialogue or medium SPL applications. The TL46 boasts an unparalleled signal-to-noise ratio, providing superior natural sound quality and a high sensitivity output.

With an ultra-durable 1.6 mm paintable cable and interchangeable moisture-resistant frequency caps, the TL46 offers both LEMO and TA4F (TQG) connector options. This lavalier is the premium choice when you need to ensure your message is conveyed amidst the noise.

Whether you're delivering a monologue or singing a song, every word counts. Shure TwinPlex is designed to handle even the toughest conditions, ensuring that every word is delivered with clarity and quality. The innovative dual-diaphragm captures the weight of your voice with natural audio at high or low frequency. The capsule design maximizes surface area to create an easy-to-conceal package that suits the performer, not the other way around.

The superhydrophobic coating keeps perspiration from interfering with the sound, meaning no more “sweat-outs.” Medical-grade cable technology makes the TL46 flexible and comfortable for performers, no matter the demands of their schedule.

Choose the TwinPlex TL46 for unmatched signal-to-noise ratio, superior natural sound quality, and a high sensitivity output.

Features

• TwinPlex TL46 offers exceptional signal-to-noise ratio, delivering superior natural sound quality and a highly sensitive output.
• Designed specifically for dialogue and medium SPL applications, the TL46 is perfect for various theater, film, broadcast, and live TV scenarios where additional output (8-10dB) is needed.
• With its patent-pending dual-diaphragm design, the TL46 provides twice the surface area of other subminiature microphones, resulting in pristine, natural response and robust low-frequency reproduction.
• The improved off-axis consistency ensures accurate sound reproduction, regardless of the vocal source's position or movement.
• Boasting best-in-class low self-noise and dynamic range, the TL46 ensures cleaner audio production.
• The TL46 comes with interchangeable sweatand moisture-resistant frequency caps, equipped with an invisible superhydrophobic nanoscopic coating to prevent sweat-outs.
• Its 1.6 mm paintable cable is not only durable but also immune to memory effect and kinks.
• The TL46 features a dual redundant ground in the cable, serving as a secondary shield for enhanced longevity.
• The sound signature of the TL46 is natural, providing an authentic audio experience.
• With its high sensitivity, the TL46 offers increased output of 8-10dB, making it the premium choice when the message needs to cut through the noise.

Specifications

Microphone Capsule
Dual-Diaphragm, Prepolarized Condenser
Polar Pattern
Omnidirectional
Frequency Response
20 Hz to 20 kHz
Sensitivity
TL46
-37.0 dBV (14.1 mV) at 1 kHz <2>
Self-Noise, A-Weighted, Equivalent Acoustical
TL46
24.0 dB SPL-A
Signal-To-Noise Ratio <3>
TL46
70.0 dB
Output Clipping Level
3.0 dBV,1 kHz at 1% THD, typical
Maximum SPL <4>
TL46
134.0 dB SPL,1 kHz at 1% THD, typical
Dynamic Range
TL46
110.0 dB typical
Microphone Current Draw
120 to 240 µA, typical
Bias Voltage
Recommended Operating Voltage
5 V DC
Housing
Molded ABS
Polarity
LEMO, NC, MDOT
Positive pressure on diaphragm produces negative voltage on pin 3 with respect to pin 1.
Cable Diameter
TL46, TL47, TL48
1.6 mm
Cable Length
MTQG, LEMO, MDOT
66 in. (1.67 m)
Net Weight with cable
12.0 g (0.42 oz.)
