Product Description
Shure SLXD24/B58 Wireless Handheld Microphone System with Beta 58A Capsule
Featuring the Beta 58A Supercardioid Dynamic Microphone capsule on top of the SLXD2 handheld wireless transmitter, the SLXD24/B58 provides transparent digital audio and rock-solid RF stability for lecture halls and live performances.
The SLXD24/B58 Wireless System delivers transparent, 24-bit digital audio and rock-solid RF performance for a wide range of applications, from day-long presentations to nighttime performances. Operate up to 32 compatible systems per 44 MHz band, with easy setup and optional rechargeability accessories for wireless excellence, wherever required. Ships with SLXD4 single-channel receiver and SLXD2/B58 handheld transmitters with antenna and rackmount accessories and 2 AA batteries.

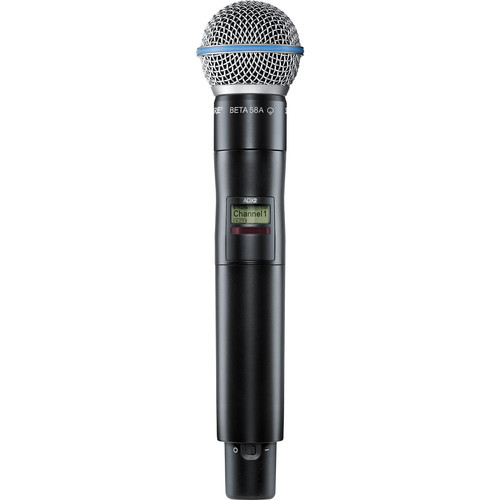

Handheld Transmitter with Beta 58A Dynamic Supercardioid Capsule
- With durable aluminum housing, the SLXD2 handheld transmitter offers a lightweight design that's comfortable to hold, and it features an LCD to show essential information.
- The Beta 58A dynamic microphone capsule is designed for close-up vocals, with brightened midrange and bass roll-off to control proximity effect. The capsule features a supercardioid polar pattern that ensures high gain before feedback, maximum isolation from other sound sources, and minimum off-axis tone coloration.
- The transmitter's interchangeable capsule design allows you to choose the ideal capsule for your application. Shure offers a variety of optional dynamic and condenser mic capsules with varying pickup patterns—capsules include the Beta 87A, SM58, and KSM8.
Transparent Digital Sound, Dependable Performance, and More Mics
- The SLX-D delivers 24-bit digital audio with a fast transient response and over 120 dB of dynamic range—resulting in clear, accurate sound.
- The system operates in the G58: 470 to 514 MHz UHF band with a 44 MHz tuning range and 1760 selectable frequencies, far away from potential Wi-Fi interference in the 2.4 GHz band.
- Digital Predictive Switching Diversity uses a microprocessor to switch between the two antennas for the cleanest signal—before dropouts occur.
- With a low latency of 3.2 ms, the system is ideal for events that require live sound reinforcement.
- The SLX-D's spectrum-efficient digital transmission technology allows for up to 32 mics to be used at once.
- Up to 10 compatible systems per 6 MHz TV band and 12 systems per 8 MHz band are supported.
- Ethernet networking saves you time with coordinated group scanning between multiple receivers from a single location; TCPI command streams from third-party companies such as AMX and Crestron are also supported.
Ready to Rackmount, Easy to Use
- Housed in a tough, half-rack metal chassis with detachable antennas, the SLXD4 receiver is a great fit for A/V installations or as part of a portable rackmount rig—ready to travel to a meeting or event.
- The SLX-D is engineered to provide outstanding sound for small- to medium-sized spaces and facilities—without costly, complicated features required primarily for large venues.
- Intuitive front-panel controls and a high-contrast LCD screen with audio and RF meters makes set up a snap.
- The auto-scan function automatically seeks out the cleanest available frequency for you. The receiver and transmitter then easily link to the same frequency via infrared.
- The receiver offers up to 60 dB of adjustable gain and the display shows you where the ideal level should be.
Optional Rechargeable Battery Management
- Adding the SB903 lithium-ion rechargeable battery, along with an SBC10-903 single charger or an SBC203 dual-docking charger, offers a cost-effective and environmentally friendly alternative to throwing away AA batteries (battery and chargers available separately).
- Using the SB903 battery and SBC203 charger simplifies the task of keeping multiple transmitters charged and ready—you can even recharge the battery while still in the transmitter.
- When powered by an SB903, the transmitter displays the remaining battery life in hours and minutes.
Enhance the Reliability of Your System
- Adding UA874 active antennas or PA805SWB passive antennas increases the range of your system and offers increased protection against interference.
- The UA844+SWB antenna distribution system (available separately) lets you stretch the power of your antenna pairs, giving you more on-air channels in less setup time.
A Variety of Mics and Transmitters
Shure offers a bodypack transmitter with a variety of lavalier and headset microphones to adapt your system as your needs evolve.
- The WL183 (omnidirectional), WL185 (cardioid), and WL184 (supercardioid) lavalier mics offer hands-free presentation options.
- The miniature WL93 and subminiature MX150 mics are smaller, easy-to-conceal lavaliers.
- The discreet MX153 subminiature earset mic provides exceptional clarity in spoken word applications.
- The PGA31 is a comfortable, durable headset microphone for active performance.
Features
- Complete digital wireless system for live performance
- SLXD4 wireless receiver pairs easily with any transmitter
- Beta58 transmitter delivers stage-ready sound
- Transparent 24-bit digital audio provides high-quality signal resolution
- Digital predictive switching diversity keeps your signal strong
- Low-profile design is comfortable to wear for extended periods
- Scan and IR sync provide easy pairing to a transmitter
- Tour tough construction stands up to punishment
- 32 available channels per frequency band (region dependent)
- Up to 10 compatible systems per 6MHz TV band; 12 systems per 8 MHz band
Included
- Wireless Microphone Clip
- 2 x AA batteries
- Rackmount kit
- 2 x 1/4 Wave Antennas
- Shure PS43US Power Supply
Specs
Microphone
| Form Factor | Handheld Capsule |
| Color | Black |
| Sound Field | Mono |
| Capsule | Dynamic |
| Polar Pattern | Supercardioid |
| Frequency Range | 50 Hz to 16 kHz |
| Sensitivity | -51 dBV/Pa |
| CMRR | None |
| Diameter | 2.01" / 51 mm |
Transmitter
