Product Description

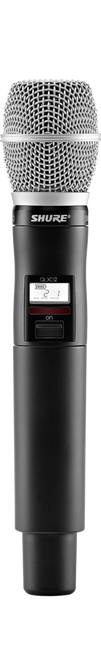

Shure QLXD2/SM87 QLX-D Series Digital Wireless Handheld Transmitter with SM87 Microphone
Featuring transparent 24-bit digital audio quality and incredibly efficient RF spectrum usage, the QLXD2 handheld transmitter is ideal for wireless vocals in presentation spaces, music venues, and houses of worship. Easy to use, the QLXD2 quickly syncs with a wireless receiver over IR at the push of a button and maintains clear, uninterrupted signal over its entire 100 m (330 ft.) range. All metal construction ensures durability, and a wide selection of compatible microphone choices offer legendary Shure sound signatures.
Note: This transmitter is compatible with the Shure QLXD4 Digital Wireless Receiver, which must be purchased separately.
Features
- 20 Hz to 20 kHz frequency range with flat response (actual response is microphone dependent)
- Interchangeable Shure microphone capsules, including the legendary SM58
- AES 256-bit encryption for secure transmission
- Over 120 dB of dynamic range – no transmitter gain adjustment needed
- 1, 10 mW selectable RF output power
- Up to 9 hours continuous use with 2 x AA alkaline batteries
- Optional Shure lithium ion rechargeable battery provides up to 10 hours of continuous use and reports remaining runtime in hours and minutes
- External charging contacts for docked charging
- Backlit LCD with easy to navigate menu and controls
- Selectable display mode showing group/channel, frequency, or battery runtime
- 100 meter (330 ft.) line-of-sight operating range
- Rugged metal construction
- Frequency and power lockout
Included
- QLXD2 Handheld Transmitter with SM87 Cartridge
- (2) AA Batteries
- Battery Contact Cover
- Microphone Clip
- User Guide
Specs
- SM87 Cartridge Polar Pattern: Supercardioid
- Frequency Response: 50 Hz - 20 kHz
- Mic Offset Range: 0 to 21 dB (in 3 dB steps)
- Battery Type: Shure SB900 Rechargeable Li-Ion or AA batteries 1.5 V
- Battery Runtime @ 10 mW:
- Shure SB900: up to 10 hours
- Alkaline: up to 9 hours
- Dimensions (LxDia.): 10.1" x 2.0" (256 mm x 51mm)
- Weight: 12.2 oz. (347 g), without batteries
- Housing: Machined aluminum
- Audio Input:
- Configuration: Unbalanced
- Maximum Input Level (1 kHz at 1% THD): 145 dB SPL (SM58), typical
- Note: Dependent on microphone type
- RF Output:
- Antenna Type: Integrated Single Band Helical
- Occupied Bandwidth: < 200 kHz
- Modulation Type: Shure proprietary digital
- Power: 1 mW or 10 mW
