Product Description

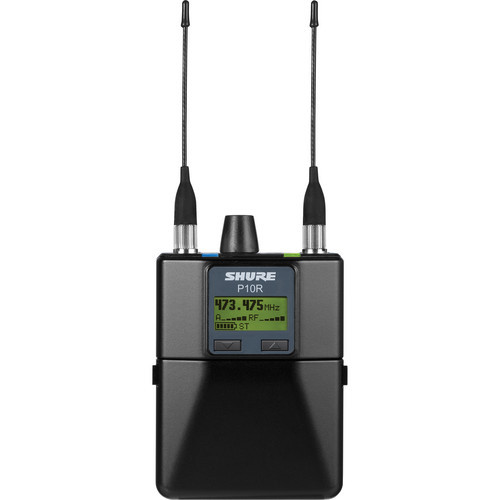

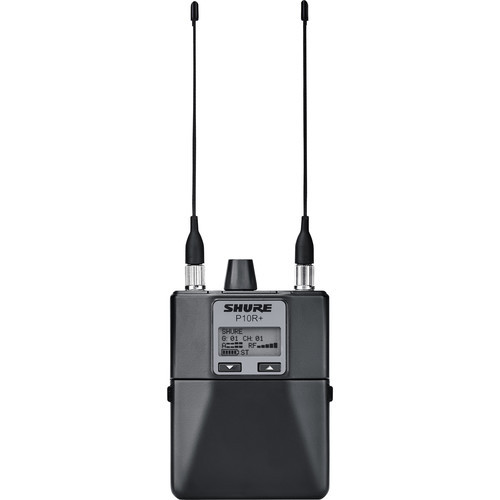

Shure P10R+=-H22 Wireless Bodypack Receiver
(H22: 518 to 584 MHz)
Overview
The P10R+ Wireless Bodypack Receiver from Shure is an updated version of the P10R low profile, diversity bodypack receiver for the PSM 1000 wireless personal monitor system (sold separately). The receiver has a slim and compact extruded aluminum construction for easy placement on a performer and offers improvements like more headroom, better stereo separation, and higher fidelity for robust RF performance and touring-grade features. Featuring full bandwidth RF scan, Front-End RF filtering, and automatic RF gain control, the P10R+ meets the needs of professional audio application of all sizes, including IEM and IFB applications.
The receiver syncs easily to a P10T transmitter over an IR link using the built-in Scan and Sync function. Volume and balance controls are provided for easy customization. A selectable 4-band parametric EQ is also provided. CueMode allows you to monitor different stage mixes, as well as store up to 20 different channels on a single bodypack. The receiver also includes audio and RF status LEDs, as well as audio level and battery life metering. The P10R+ operates on a pair of standard AA batteries for 4-6 hours of continuous use, and it can also be used with Shure Li-ion rechargeable batteries for extended life. The P10R+ has a standard 3.5mm headphone jack and is compatible with all Shure SCL sound isolating earphones, which are designed specifically for use with PSM systems.
Updated Features
- Improved audio quality (without changing sound signature)
- Improved RF performance and reliability
- Improved battery life with alkaline AA batteries (thanks to new headphone amp technology)
- Updated firmware with new features and workflow improvements
- Improved Volume Limiter function (selectable ranges of limiting increased)
- 4-band parametric EQ added
- Power-Save Mode added (like feature on PSM300 series packs)
Touring-Grade Design and Performance
- Twin-antenna diversity bodypack receiver with advanced digital signal processing technology dramatically improve signal reception and increase range
- CueMode allows monitoring of different stage mixes and storing of up to 20 separate channels on one bodypack for quick and easy reference
- MixMode technology combines two separate audio channels for simultaneous listening in both ears, or transmit two independent IFB program feeds
Robust RF Performance and Networked Control
- Precision front-end RF filtering reduces RF interference for a cleaner, stronger RF signal, fewer dropouts, and fewer audible artifacts
- Automatic RF gain control prevents signal distortion due to RF overload before it can affect performance
- Networked frequency coordination simplifies setup for high channel counts
- Full bandwidth scan from the P10R+ bodypack receiver finds clean, compatible frequencies and provides a graphic spectrum plot viewable from the bodypack menu screen
- IR sync enables you to send the identified frequencies and spectrum plot to the P10T transmitter directly
Natural Audio Quality
- Advanced digital signal processing technology in the P10R+ receiver delivers more headroom, improved stereo separation, and higher audio fidelity
- Patented Audio Reference Companding offers natural and transparent sound
Specifications
| RF Filter Range | Tri-Band: -3 dB at 30.5 MHz from the Center Frequency of Each Band |
| RF Gain | Active: 31 dB (Adjusts RF Sensitivity to Provide More RF Dynamic Range) |
| RF Sensitivity | 2.2 μV (20 dB SINAD) |
| Squelch Threshold | 22 dB SINAD (±3 dB), Default Setting |
| Adjacent Channel Rejection | >70 dB |
| Intermodulation Attenuation | >70 dB |
| Blocking | >80 dB |
| Image Rejection | >90 dB |
| Image Rejection | >90 dB |
| Audio Output Power | 100 mW per Output (1 kHz @ <1% Distortion, Peak Power, @ 16 Ohms) |
| Minimum Load Impedance | 4 Ohms |
| Output Impedance | <1 Ohm |
| 4-Band Parametric Equalizer | Low-Shelf Selectable Gain: ±2, ±4, ±6 dB @ 100 Hz Low-Mid Selectable Gain: ±2, ±4, ±6 dB @ 160, 250, 400, 500, 630 Hz Selectable Q: 0.7, 1.4, 2.9, 5.0, 11.5 High-Mid Selectable Gain: ±2, ±4, ±6 dB @ 1, 1.6, 2.5, 4, 6.3 kHz Selectable Q: 0.7, 1.4, 2.9, 5.0, 11.5 High-Shelf Selectable Gain: ±2, ±4, ±6 dB @ 10 kHz |
| Volume Limiter | Selectable: 0 to -48 dB in 3 dB Steps |
| Volume Lock | Selectable: 0 to -70 dB Limits Volume Adjustment Knob Selected Value Analogous to Volume Knob Increment |
| Battery Life | 4-6 Hours (Continuous Use) with AA Batteries |
| Dimensions | 3.9 x 2.6 x 0.9" / 9.9 x 6.6 x 2.3 cm |
| Weight | 5.6 oz / 158.0 g without Batteries |
