Product Description

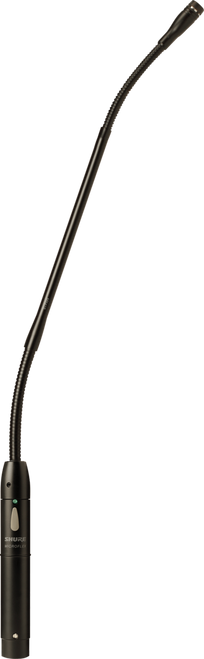

Shure MX424/S 24" Microflex Supercardioid Gooseneck Condenser Microphone with Preamp
Key Features
- Clear Voice Reproduction
- Supercardioid Cuts Background & Feedback
- Adjustable 24" Gooseneck for Positioning
- Mounts to Table, Podium, or Lectern
- Easy to Mount with Included Hardware
- Includes Surface-Mount Preamp
- XLR Connector
- Requires 11 to 52V Phantom Power
Overview
The Shure MX424 is a 24" gooseneck condenser microphone designed for panels, conferences, and public-address applications and engineered to deliver accurate and detailed voice reproduction for demanding professionals. The longer adjustable gooseneck length allows for optimal positioning for a wide variety of speakers and presenters and is well suited mounting on deep tables and large surfaces.
At home on conference tables, pulpits, or lecterns, the mic features an electret-condenser capsule with a 50 Hz to 17 kHz frequency response that's tailored for crisp, clear speech and vocals. The Microflex series' modular design allows you to easily swap out mic capsules depending on the application and the acoustic properties of the environment. This version includes a capsule with a supercardioid pick-up pattern that focuses audio capture very narrowly on the subject in front of the mic for substantially less background sound and markedly reduced feedback problems from PA systems and loudspeakers.
The supplied snap-fit windscreen clicks into place on the mic to ensure secure attachment and helps reduce plosives and breath noise by up to 30 dB for clearer, more intelligible audio. The included shockmount installation flange provides over 20 dB of isolation from surface vibration noise. Additional hardware is provided for quick and easy mounting to surfaces.
- Microflex microphone cartridges are tailored specifically to capture the human voice, so the presenter always comes through clearly
- Wide dynamic range and frequency response provide accurate sound reproduction
- Interchangeable cartridges provide an optimal polar pattern choice for each application
- Shure Commshield filtering is built into Microflex to reject RF interference from ever-present smartphones, keeping the focus on the performance.
- Snap-fit foam windscreen securely attaches to mic and reduces breath noise or plosives
- Shockmount provides over 20 dB of isolation from surface vibration noise
- Included mounting accessories make the MX424 easy to install on a table, podium, or lectern in any space
- Surface-mount preamp with XLR connector for use with standard, or a wide variety of, audio mixers and PA systems
- Requires 11 to 52V phantom power for operation
Specifications
Primary Applications | Corporate Presentation, Conferencing |
Form Factor | Boundary/Surface Mount / Gooseneck |
Intended Sound Sources | Vocals, Speech/Voice Over |
Sound Field | Mono |
Capsule | 1 x Electret Condenser |
Polar Pattern | Supercardioid |
Orientation | End Address |
High-Pass Filter | None |
Tone Adjustment | None |
Gain Adjustment | None |
Windscreen | Built-In (Included) |
Frequency Range | 50 Hz to 17 kHz |
Maximum SPL | 123 dB SPL |
Impedance | 180 Ohms |
Sensitivity | -34 dBV/Pa |
Dynamic Range | 96 dB |
Signal-to-Noise Ratio | 68 dB (1 kHz) |
Equivalent Noise Level | 27 dB |
THD | 1% |
CMRR | 45 dB |
Output Connectors (Analog) | 1 x XLR 3-Pin Male (on Mic) |
Headphone Connector | None |
Operating Voltage | 11 to 52 V (Phantom Power) |
Operating Current Consumption | 2.0 mA |
Mounting | Shockmount, Surface-Mount, Tabletop (with Included Hardware) |
Included Case | None |
Included Filters | None |
Operating Temperature | 0 to 135°F / -17.8 to 57.2°C |
Operating Humidity | 0 to 95% |
Storage Temperature | -20 to 165°F / -28 to 73°C |
Certifications | CE *as per Manufacturer |
Dimensions | ø: 0.8H: 28.3" / ø: 20.1H: 717.6 mm (Base, Gooseneck, Microphone) |
