Product Description
Shure MX202W-A/MS Microflex Overhead Mini-Shotgun Microphone with Stand Mount Adapter and XLR Connector (White)
Key Features
- Updated RF Immune Connector
- 4" Gooseneck
- Wide Dynamic Range & Frequency Response
- Balanced Transformerless Output
- Increased Immunity to Noise
- Interchangeable, Optional Cartridges
- XLR Connector
- Suitable for Portable Applications
- Includes Stand-Mount Adapter
Overview
The white MX202W-A/MS Microflex Overhead Mini-Shotgun Microphone with Stand Mount Adapter and XLR Connector from Shure is designed to capture high-quality audio in a compact adjustable package for applications such as miking a choir, distance learning in a classroom, and for live stage and theater environments with performance groups.

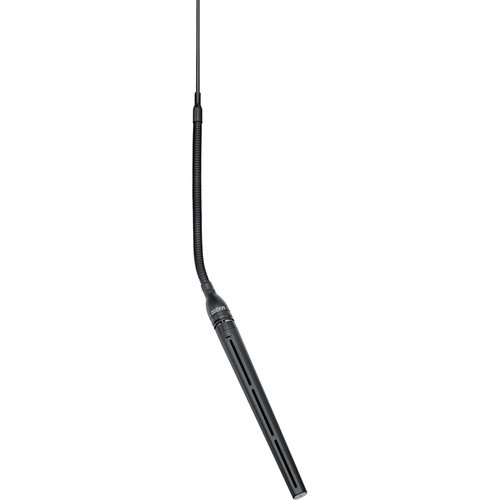

The MX202W-A/MS overhead uses a modular design with interchangeable mic cartridges; this model features a mini-shotgun capsule attached to a flexible 4" gooseneck and a 30' cable. All of the mic capsules offer a wide dynamic range and a 50 Hz to 17 kHz frequency response.
Other features include a balanced, transformerless output for increased immunity to noise and an updated RF Immune TA4F connector (connection to the preamp) now made of metal instead of plastic, which provides additional shielding.
Specifications
| Form Factor | Gooseneck / Stand/Boom Mount |
| Sound Field | Mono |
| Operating Principle | Pressure Gradient |
| Capsule | 1 x Condenser |
| Polar Pattern | Lobar |
| Orientation | End Address |
| Circuitry | Solid-State |
| Pad | None |
| High-Pass Filter | None |
| Tone Adjustment | None |
| Indicators | None |
| On-Board Controls | None |
| Windscreen | Foam (Included) |
| Frequency Range | 50 Hz to 17 kHz |
| Maximum SPL | 121 dB SPL Peak |
| Impedance | 180 Ohms |
| Sensitivity | -33 dB at 1 kHz |
| Dynamic Range | 96.2 dB A-Weighted |
| Signal-to-Noise Ratio | 68 dB A-Weighted |
| Equivalent Noise Level | 26 dB A-Weighted |
| CMRR | 45 dB |
| Output Connectors (Analog) | 1 x XLR 3-Pin Male (on Preamp) |
| Cable Length | 30' / 9.14 m |
| Operating Voltage | 11 to 52 V |
| Operating Current Consumption | 2.0 mA |
| Color | White |
| Mounting | Mic Clip/Stand Adapter (with Included Hardware) |
| Operating Temperature | 0 to 135°F / -17.8 to 57.2°C |
| Operating Humidity | 0 to 95% |
| Storage Temperature | -20 to 165°F / -28 to 73°C |
| Dimensions | ø: 0.46 x L: 5.69" / ø: 11.68 x L: 144.53 mm |
| Weight | 17.8 oz / 504.63 g |
