Product Description

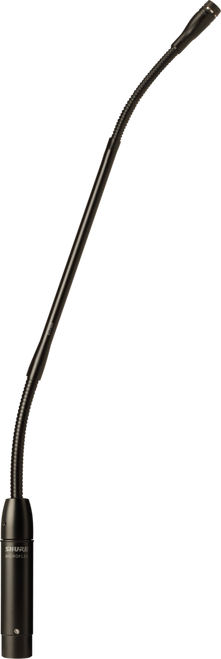

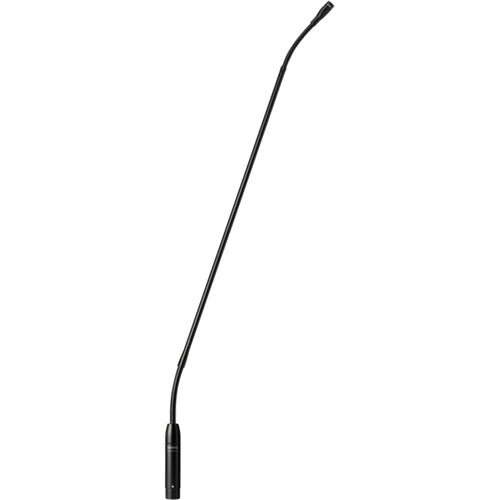

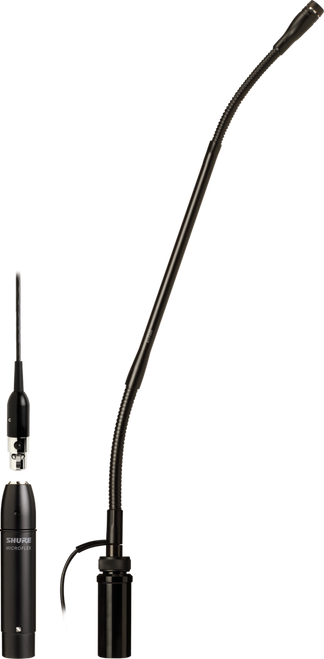

Shure CVG12-B/C Centraverse Cardioid Condenser Microphone
he Shure Centraverse CVG12-B/C professional gooseneck electret condenser microphone is designed for use in general installed sound reinforcement applications. Designed with dual gooseneck sections for full articulation, the CVG12 and CVG18 provide scalable, best-in-class performance in a wide variety of locations, including podiums and desktops.
Shure Centraverse Installed Sound Microphones deliver high quality, reliable audio no matter what the application. From meeting rooms to houses of worship, podiums to desktops, Centraverse microphones come complete with all you need to ensure a quick and efficient sound solution, every time.
All Centraverse models are equipped with Commshield RF Filtering Technology.
Features
- Cardioid polar pattern with tailored response for speech
- CommShield Technology that guards against unwanted RF interference from portable wireless devices (smartphones, etc.) and offers high resistance to intense nearby radio signals
- Frequency response ideal for capturing fast transients in a wide variety of locations, including podiums and desktops
- Superior Shure design and rugged, dependable construction
Included
- 1 - 95A16670 Windscreen (black)
- 1 - RPM640 Mounting Flange
Specs
- Polar Pattern: Cardioid
- Cartridge Type: Electret Condenser
- Frequency Response: 70 Hz – 16 kHz
- Output Impedance: 180 Ohms
- Sensitivity open circuit voltage, @ 1 kHz, typical: –33 dBV/Pa[1] (22 mV)
- Maximum SPL 1 kHz, at 1% THD: 120 dB SPL
- Signal-to-Noise Ratio Ref. 94 dB SPL at 1 kHz: 67 dB
- Dynamic Range: 93 dB
- Self Noise equivalent SPL, A-weighted, typical: 27 dB SPL
- Preamplifier Output Clipping Level (@ 1 kHz, at 1% THD): -7 dBV
- Common Mode Rejection 10 Hz to 100 kHz: > 45 dB
- Operating Temperature: –18 to 57°C (0 to 135°F)
- Power Requirements: 11–52 V DC, 2.0 mA
- Operating Temperature: –18 to 57°C (0 to 135°F)
- Weight: 6.3 oz
