Product Description

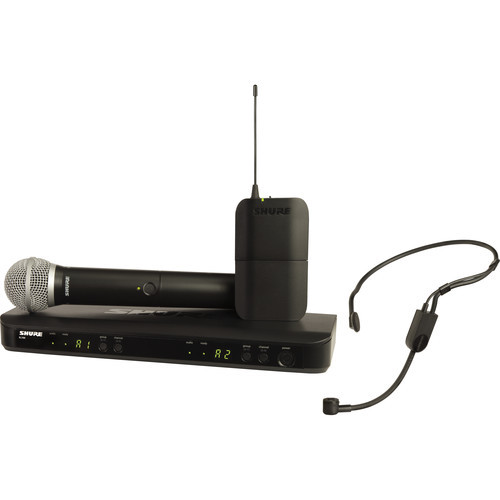

Shure BLX1288/P31-H10 Dual-Channel Wireless Combo Headset & Handheld Microphone System (H10: 542 - 572 MHz)
Key Features
- For Two Presenters or Performers
- PGA31 Cardioid Headset Mic
- Lightweight Bodypack Transmitter
- PG58 Cardioid Mic/Transmitter
- Dual-Channel Tabletop Receiver
- 123 Auto-Scan Frequencies
- Internal Antenna Diversity
- 14-Hr AA Batteries
- Expandable to 12 Mic Channels/300' Range
Overview
The Shure BLX1288/PGA31 is a cost-effective wireless headset and handheld combo microphone system for two presenters, performers, teachers, or lecturers which offers quality sound, simple setup, and dependable performance right out of the box. It features the compact and lightweight BLX88 dual-channel tabletop receiver with internal antennas, ideal for portable use.
This BLX1288/PGA31 combo offers a flexible solution by including a bodypack transmitter, a PGA31 cardioid headset mic, and a handheld transmitter equipped with an integrated PG58 dynamic cardioid microphone capsule. The headset offers a comfortable and secure fit for hands-free operation, while the handheld mic is ideal in situations where it's not convenient to wear a headset mic or you need to quickly pass the mic between several people.
The receiver features one-touch QuickScan frequency selection to quickly search 123 available frequencies and locate a clean RF channel in case of interference. The system provides up to 14 hours of continuous use with four AA batteries, at a range up to 300'. Up to 12 mic channels can operate simultaneously in each frequency band.
This streamlined wireless system is well suited for presentations and performances in small venues, wedding halls, and houses of worship, as well as conference, educational, and corporate facilities.
Comfortable Headset Mic & PG58 Mic Capsule Optimized for Speech
The PG58 dynamic capsule features a cardioid polar pattern that minimizes background noise and feedback. The built-in spherical wind and pop filter reduces plosives for clear vocals.
Lightweight Bodypack & Handheld Transmitters
The lightweight handheld transmitter is comfortable to hold and is equipped with an on/off button and a black identification cap. The WA621 Color ID Caps kit containing assorted colored caps is available as an optional accessory.
Both transmitters offer adjustable gain control, along with group and channel selection buttons for quick and simple frequency matching with the receiver.
Easy-to-Use Dual-Channel Tabletop Receiver for Quality Audio
Specifications
| Wireless Technology | Analog UHF |
| Number of RF Channel Frequencies | 123 |
| Included Transmitters | 1 x Bodypack 1 x Handheld |
| Diversity | Antenna Diversity |
| RF Frequency Band | H10: 542 to 572 MHz |
| RF Bandwidth | 24 MHz |
| RF Channel Scanning | Auto-Scan |
| Max Operating Range | 300' / 91.4 m (Line of Sight) |
| Max Transmitters per Band | 12 |
| Dynamic Range | 100 dBA |
| Receiver Type | Tabletop |
| Antenna | 2 x Internal, Fixed |
| Number of Audio Channels | 2 |
| Audio I/O | 2 x XLR 3-Pin Male Balanced Output 2 x 1/4" TS Female Unbalanced Output |
| Audio Output Level | XLR Outputs: -27 dBV (Mic Level) 1/4" Outputs: -13 dBV (Instrument Level) |
| Frequency Response | 50 Hz to 15 kHz (Dependent on Mic) |
| Impedance | XLR Outputs: 200 Ohms (Balanced) 1/4" Outputs: 50 Ohms (Unbalanced) |
| Approximate RF Sensitivity | -105 dBm |
| Power Requirements | AC/DC Power Adapter |
| AC/DC Power Adapter | 12 to 15 VDC at 160 mA, Center-Positive (Included) |
| Display & Indicators | 1 x Multi-Segment LED (Channel, Group) 2 x LED (AF Level, Sync) |
| Housing | ABS |
| Operating Temperature | 0 to 135°F / -17 to 57°C |
| Dimensions | 15.3 x 1.6 x 4.6" / 388 x 40 x 116 mm |
| Weight | 15.1 oz / 429 g |
| Transmitter Type | Bodypack |
| RF Output Power | 10 mW |
| Audio I/O | 1 x TA4/Mini XLR 4-Pin Male Input (Lockable) |
| Muting | Off/On Switch |
| Auto-Level Control | No |
| Gain Range | -16 to +10 dB |
| Sync Method | Manual |
| Antenna | 1 x Flexible Whip, Fixed (Beltpack) |
| Power Requirements | Battery |
| Battery Type | 2 x AA (Included) |
| Approx. Battery Life | 14 Hours (Alkaline) |
| Display & Indicators | 1 x Multi-Segment LED (Channel, Group) 1 x LED (Battery Status, Power) |
| Housing | ABS |
| Dimensions | 2.5 x 4.3 x 0.8" / 64 x 110 x 21 mm |
| Weight | 2.6 oz / 75 g (without Batteries) |
| Microphone Type | Headset |
| Sound Field | Mono |
| Capsule | Electret Condenser |
| Polar Pattern | Cardioid |
| Frequency Range | 60 Hz to 20 kHz |
| SNR | 66 dB |
| Equivalent Noise Level | 28 dB |
| Maximum SPL | 145 dB SPL |
| Impedance | 600 Ohms |
| Dynamic Range | 117 dB |
| Outputs | 1 x TA4/Mini XLR 4-Pin Female (Lockable) |
| Cable Length | 4.27' / 1.3 m |
| Operating Voltage | 5 V |
| Weight | 1.59 oz / 45 g |
| Transmitter Type | Handheld |
| RF Output Power | 10 mW |
| Audio I/O | None |
| Muting | Off/On Switch |
| Auto-Level Control | No |
| Gain Range | -20 to -10 dB |
| Sync Method | Manual |
| Antenna | 1 x Internal (Handheld) |
| Power Requirements | Battery |
| Battery Type | 2 x AA (Included) |
| Approx. Battery Life | 14 Hours (Alkaline) |
| Display & Indicators | 1 x Multi-Segment LED (Channel, Group) 1 x LED (Battery Status, Power) |
| Housing | ABS |
| Dimensions | 2.5 x 4.3 x 0.8" / 64 x 110 x 21 mm |
| Weight | 7.7 oz / 218 g (without Batteries) |
| Microphone Type | Handheld Capsule |
| Sound Field | Mono |
| Capsule | Dynamic |
| Polar Pattern | Cardioid |
| Frequency Range | 50 Hz to 16 kHz |
| Sensitivity | -55 dBV/Pa |
