Product Description

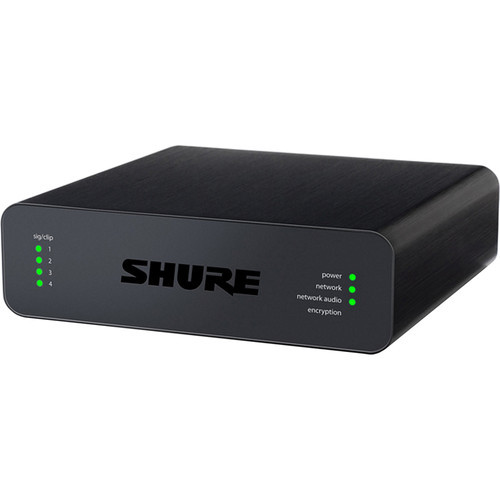

Shure ANI4IN-XLR Microflex Advance 4-Channel Dante Mic/Line Audio Network Interface Unit
Overview
The 1/3 RU Microflex Advance Dante Mic/Line Audio Network Interface Unit from Shure is an interface unit with four 3-pin XLR input ports that convert four line or microphone analog signals onto a Dante network for audio routing and browser-based control. It features a single Ethernet port, customizable EQ settings, channel summing, and LEDs that indicate the device status and audio signal. It is compatible with third party control systems.
Features
- Single Ethernet port carries Dante audio, power (PoE - class 0)
- Control strings for third-party preset controllers including Crestron and AMX
- Four band C/S PEQ on every channel
- Provides channel summing to combine input signals and send them over a single Dante channel
- Browser-based software control for all device parameters, per input channel for preamp gain, phantom power, mute control, digital gain, and polarity control
Specifications
Rack Units | 1/3 RU wide |
Connectors | 4 x 3-pin XLR analog ports, input 1 x PoE port (class 0) |
Dimensions | 9.00 x 6.25 x 3.00" / 22.86 x 15.88 x 7.62 cm |
Weight | 2.16 lb / 0.98 kg |
