Product Description

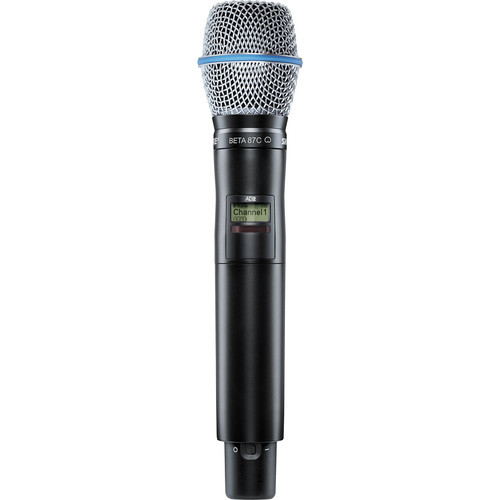

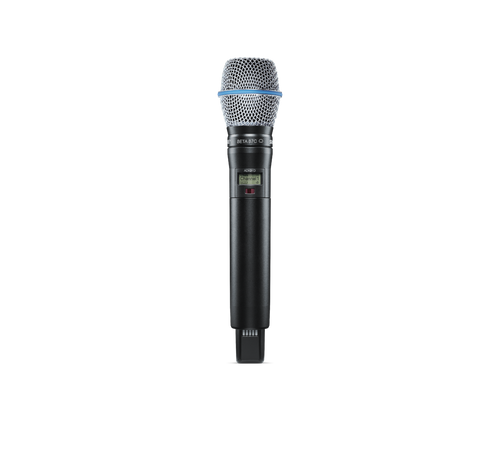

Shure ADX2/B87C Digital Handheld Wireless Microphone Transmitter with Beta 87C Capsule
The Shure ADX2/B87C is a digital handheld wireless microphone transmitter compatible with Axient Digital series receivers. It is ShowLink-enabled for automatic interference avoidance and real-time remote control of parameters.
The ADX2/B87C comes equipped with the Beta 87C condenser capsule designed to deliver an extremely smooth frequency response with extended high end for vocal performers and presenters. The capsule features a cardioid pick-up pattern that reduces rear- and off-axis background noise, helping to control feedback.
The transmitter operates in a single 146 MHz ultra-wide UHF bandwidth. It provides up to 9 hours of operation on an SB920 rechargeable battery, with a transmission range up to 330' and a selectable 2/10/40mW RF output power.
With a durable, moisture-resistant, lightweight aluminum case, the ADX2/B87C transmitter delivers pristine audio quality, mission-critical RF performance, AES 256-bit encryption for secure transmission, and advanced rechargeability options, making it ideal for high-profile, sound-reinforcement applications.
Features
- Durable, moisture-resistant, lightweight metal case in black finish
- Up to 9 hours of runtime with SB920 rechargeable battery
- External contacts for docked charging with optional fully covered radome
- Diversity ShowLink enabled for remote transmitter control and automatic interference avoidance
- Two transmission modes: Standard for optimal coverage and new High Density for maximum system channel count and robust coverage
- Encryption-enabled, secure transmission
Included
- 2 x Shure SB920 Rechargeable Lithium-Ion Battery
- Zipper Bag
- Threaded Adapter
- Swivel Adapter
Specs
System
|
Wireless Transmission |
Digital UHF |
|
RF Frequency Band |
417 to 616 MHz |
|
RF Bandwidth |
146 MHz |
|
Frequency Step Size |
25 kHz |
|
Max Operating Range |
328.1' / 100 m (Line of Sight) |
|
Latency |
2 to 2.9 ms (Selectable) |
|
Encryption |
AES 256 |
|
Modulation |
Proprietary |
Transmitter
|
Form Factor |
Handheld |
|
RF Output Power |
2 / 10 / 40 mW |
|
Audio I/O |
None |
|
Pad |
12 dB |
|
Muting |
Mute Switch |
|
Audio Input Level |
145 dB |
|
Gain Range |
-12 to +21 dB (3 dB Steps) |
|
Sync Method |
IR |
|
Antenna |
1 x Internal (Handheld) |
|
Power Requirements |
Battery |
|
Battery Type |
1 x Rechargeable (Included, Replaceable) |
|
Approx. Battery Life |
Med.: |
|
Display & Indicators |
1 x LCD (Battery Status, Channel, Group, Signal Strength) |
|
Housing |
Aluminum |
|
Operating Temperature |
0 to 122°F / -17 to 50°C |
|
Storage Temperature |
-20 to 165°F / -28 to 73°C |
|
Dimensions |
2 x 10" / 51 x 254 mm |
|
Weight |
11.9 oz / 338 g (without Batteries) |
Microphone
|
Form Factor |
Handheld Capsule |
|
Sound Field |
Mono |
|
Capsule |
Condenser |
|
Polar Pattern |
Cardioid |
|
Frequency Range |
50 Hz to 20 kHz |
|
Maximum SPL |
139 dB SPL |
|
Sensitivity |
-51 dBV/Pa |
|
Dynamic Range |
117 dB |
