Product Description
Samson SWC88XBGT, Concert 88x Wireless Guitar System
Pro Performance. Simple Setup.
Taking the complexity out of going wireless, Samson Concert 88x combines professional-grade audio clarity, reliable operation in the UHF band with extremely easy setup. The Samson Concert 88x Guitar system frees you to move around the stage, among the crowd, and interact with your audience as never before.
Simplicity and performance are at the core of the Concert 88x wireless systems. One-touch scanning analyzes all available channels, selecting the clearest channel for your performance space. An infrared signal then locks the transmitter and receiver together on the selected channel. With 100 frequencies and a wide 25 MHz bandwidth, there are plenty of available channels for your event/application.
The True-diversity design minimizes dropouts to provide loud and clear wireless reception for up to a 300' performance range. Tone-key and auto-mute circuitry ensure that only the audio signal from the CB88 beltpack transmitter reaches the receiver, automatically muting the system when the transmitter is out of range to prevent unwanted noise from entering the signal path.
The rear panel provides both balanced (XLR) and unbalanced (1/4") connections to an amplifier, sound system, or recording desk. The half-rack format and included rackmount kit allow the single or multiple CR88x receivers to be installed in a portable audio rack or in a permanent venue.
The Samson CB88 transmitter fits securely on nearly any guitar strap; the included cable connects the transmitter directly to the instrument’s output. An adjustable gain control allows for optimal gain staging for your instrument's output. Enjoy up to eight hours of continuous operation from a pair of AA batteries.
Concert 88x Guitar System
- High-performance professional UHF wireless system

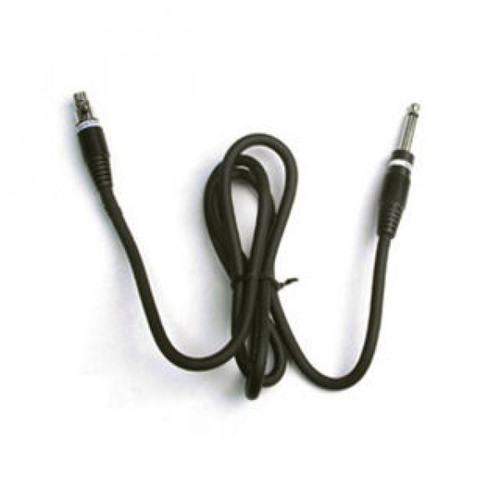

- Includes 1/4" to mini-XLR instrument cable
- 100 operating channels across 25 MHz bandwidth
- Up to 8 systems can be used simultaneously per frequency band (region dependent)
- 300' operating range (line-of-site)
- Rackmount kit included
CR88x Wireless Receiver
- One-touch automatic frequency scan finds the best operating channel
- Two digit LED display
- Infrared link locks the receiver and transmitter to the same channel
- True diversity design minimizes dropouts
- Tone key and auto mute prevents unwanted noise when transmitter is off or out of range
- Balanced XLR and unbalanced 1/4" outputs
CB88 Beltpack Transmitter
- Adjustable input gain
- Silent mute button
- Power/Mute status indicator
- Metal belt clip
- Up to eight hours of continuous use from two AA batteries
Consumer Alert
Most users do not need a license to operate this wireless microphone system. Nevertheless, operating this microphone system without a license is subject to certain restrictions: the system may not cause harmful interference; it must operate at a low power level (not in excess of 50 milliwatts); and it has no protection from interference received from any other device. Purchasers should also be aware that the FCC is currently evaluating use of wireless microphone systems, and these rules are subject to change. For more information, call the FCC at 1-888-CALL-FCC (TTY: 1-888-TELL-FCC) or visit the FCC's wireless microphone website at www.fcc.gov/cgb/wirelessmicrophones.
