Product Description

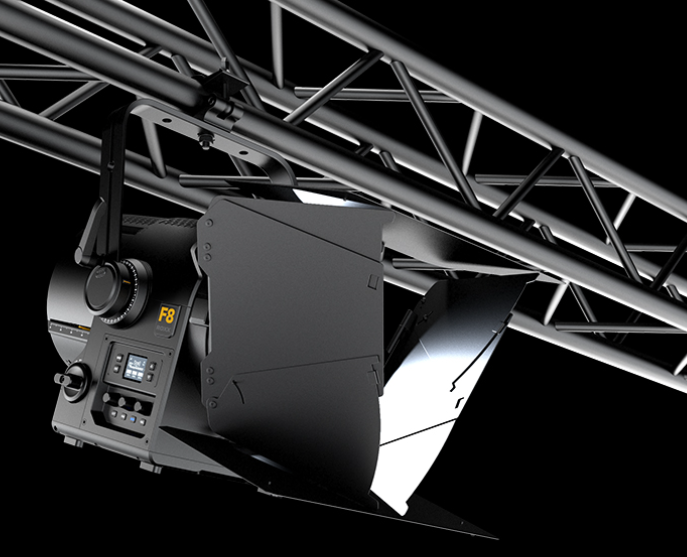

Roxx 15208001 ICON F8 True 2K Replacement
Overview
ICON F8 True 2K Replacement
Features
- 800W 6-in-1 LED delivers enormous luminous flux of up to 20.000 lumens
- ROXX ChromaSix LED engine (RGBALC) delivers powerful, saturated to pastel colors
- CRI/Ra up to 98 / TLCI up to 99, TM-30 Rf of 95
- 8” Fresnel lens, delivers authentic Fresnel characteristic
- 10°-55° manual zoom with integrated zoom indicator for precise and repeatable setups
- Fixed front lens for stable balance and compact design
- integrated reflector
- 18-bit dimming with ultra-smooth fades and tremendous color fidelity
- IP65-rated housing with specially capsuled optical lens system to minimize maintenance
- Quick-release yoke system for tool-free switching between Standard- and PO yoke
- User-friendly TFT display with direct access to all key control modes
- KLSTR technology ready – unique time-saving workflows during device set-up
Includes
- 8-Way Barndoor
- 2m Power Cable
Specifications
Photometrics
| LED expected lifetime | 50.000 hours |
| Lightsource | 10x 60W RGBL |
| Type of optical system | TIR lens |
| LED PWM Frequency | selectable 800Hz, 1.200Hz, 2.000Hz, 3.600Hz, 12kHz, 25kHz |
| Beam angles @ Full (50%) | 9° (native) |
| Maximum Field angles @ Full (10%) | 16° (native) |
| Color temperature range | 2000-10.000K |
| CRI/Ra @ 5600K | 85 |
| TLCI @ 5600K | 74 |
| Luminous flux @ Full (RAW) | 20.681 lm (677,6W) |
| Luminous flux @ 5600K (Normal CRI) | 20.210lm (533,1W) |
| Luminous flux @ 5600K (High CRI) | 14.699lm (299,8 W) |
| illuminance Lux @ 5m / 16,4ft (@ Full) | 22.739lx |
| illuminance Lux @ 5m / 16,4ft (@ 5600K Normal CRI) | 22.297lx |
| illuminance Lux @ 5m / 16,4ft (@ 5600K High CRI) | 15.863lx |
| Efficancy @ Full (max) | 49 lm/W |
Dimensions & Weight
| IP class | IP65 |
| IK class | IP08 |
| Body material | Aluminum, Nylon |
| Lens material | Plastic |
| Net dimensions incl.Yoke mm (w x h x d) | 380 x 460 x 397 x mm |
| Net dimensions incl. Yoke inches (w x h x d) | 14,96 x 18,11 x 15,63 inch |
| Net dimensions without Yoke mm (w x h x d) | 297 x 333 x 397 mm |
| Net dimensions without. Yoke inches (w x h x d) | 11,69 x 13,11 x 15,63 inch |
| Net weight without Barndoors) | 13 kg / 28,66 lbs |
| Net weight (incl. Barndoors) | 14,75 kg / 32,52 lbs |
Electrical Data
| Operating Voltage | 100 – 240V 50/60Hz |
| Electrical protection | Overload protection with automatic recover |
| Power Max. Out | 594W @ 230V / 623W @ 100V |
| Power Linking | 5 units @ 230V / 2 units @ 100V |
| Power Factor | Pf 1,0 @ 100V / Pf 0,98 @ 230V |
| Standby Power | 13W |
| Power Thru max. @ 100V | 5A (ETL) / 8A |
| Power Thru max. @ 230V | 9A (ETL) / 12A |
| Power Supply Unit | Inbuilt auto-ranging electronic switch-mode |
Operation & Controller
| DMX channels | 4CH CCT, 7CH CCT, 6CH RGB, 10CH RGB, 18CH RGB, 12CH DIRECT, 14CH DIRECT, 21CH DIRECT, 6CH HSI, 12CH HSI |
| DMX modes | 10 |
| Protocol | USITT DMX512A RDM ANSI E1.20 optional: CRMX, W-DMX™ G2, W-DMX™ G3, W-DMX™ G4, W-DMX™ G4S optional Bluetooth (Low Energy) KLSTR technology ready |
| Setting and addressing | TFTdisplay RDM ANSI E1.20 Near Field Control (NFC) |
| Standalone mode | Auto Program, Color Macro, Quick Color, Tunable White, User Color |
| Wireless DMX | optional: Lumen Radio transmitt & receive function (CRMX) |
| indicator | TFT display |
| controls | 8 backlighted controls |
| Strobe | 0-30Hz |
| DMX I/O | IP65 XLR 5-pin male/female |
| Power I/O | TRUE1 compatible input & link-thru sockets |
| USB Firmware Update | IP65 USB socket |
Installation
| Orientation | Any |
| Rigging possibilities | hanging direct |
| Safety features | 1x safety eye |
| Minimum distance from flammable materials | 0,3 meters (11,8 inch) |
Thermal Characteristics
| Cooling | Active, Heatpipe-System, Temperature-regulated |
| Humidity (max.) | 95% |
| Temperature range, AC Operating | -40°C to 45°C |
| Temperature range, Start-Up AC Operating | -20° to 45°C |
| Temperature range, Storage AC only | -40°C to 80°C |
| Temperature range, Battery Operating | -20° to 40°C |
| Temperature range, Start-Up Battery Operating | -20° to 40°C |
| Temperature range, Storage Battery | -10°C to 25°C |
| Temperature range, Charging | 0°C to 40°C |
| Thermal Protection | Automatic overtemperature protection |
