Product Description

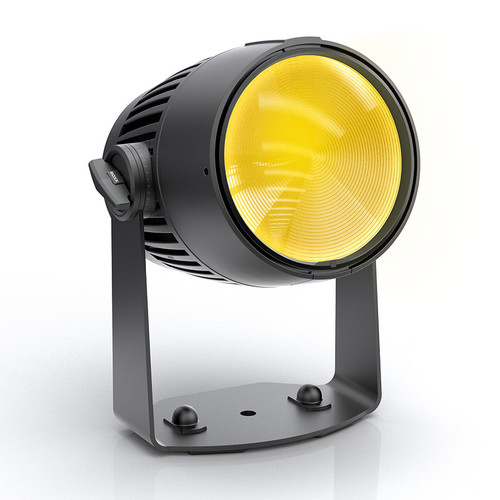

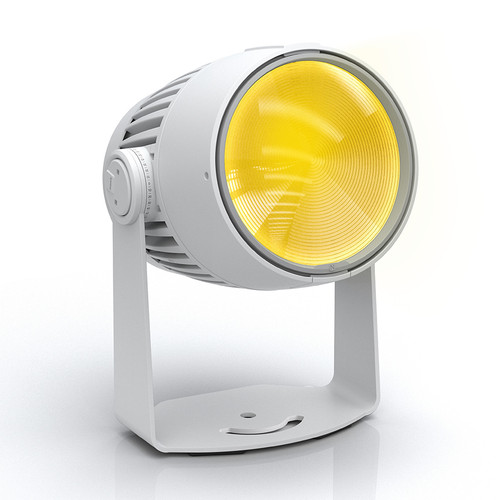

Roxx 11401101 B.SHOW Mini FC
Halfsized but packed with power
With the SHOW mini series, ROXX® continues to fulfill the demand for very high performance, weatherproof lighting fixtures for entertainment and architectural applications, in addition to a major new addition, a battery version. The flexibility and variety of options previously offered in terms of light quality, size and accessories is now even more pronounced, giving customers that special extra bit of freedom of choice.
SHOW mini, the little brother of the SHOW Series.
1 Lithium-ion battery powered
Say goodbye to cable chaos with the new standard battery fixture for ultimate flexible usage without compromise. The powerful lithium-ion battery ensures reliable operation and a runtime of up to 24 hours. The integrated battery management system protects against deep discharge and overcharging.
2 The Fixture
FC Version
Whether on stage, at trade fairs or corporate events, the B.SHOW mini FC is convincing in every area of application with a very balanced, luminous light without color shadows, strong and saturated colors as well as high white light quality.
Color Range
Adding Lime closes the gap between RGB, extends the color spectrum and improves the white light quality. Therefore, the B.SHOW mini FC enables a great CRI/Ra and ensures a natural color reproduction.
ROXX Color Calibration
Whether on stage, at a trade fair or at corporate events, the B.SHOW mini FC convinces in every area of application with a very balanced, luminous light without colour shadows, with strong and saturated colours as well as a high white light quality (CCT 2,000-10,000 Kelvin).
SPECIFICATIONS
Photometrics
| LED expected lifetime | 50.000 hours |
| Lightsource | 1x 60W RGBL |
| Type of optical system | Reflector + interchangeable lens plate |
| LED PWM Frequency | selectable 800Hz, 1.200Hz, 2.000Hz, 3.600Hz, 12kHz, 25kHz |
| Beam angles (50%) | 14° (with VN lens) |
| 23° (with N lens) | |
| 35° (with M lens) | |
| 52° (with W lens) | |
| 30° x 15° (with EN lens) | |
| 46° x 17,5° (with EW lens) | |
| Maximum Field angles (10%) | 25° (with VN lens) |
| 43° (with N lens) | |
| 69° (with M lens) | |
| 86° (with W lens) | |
| 58° x 34° (with EN lens) | |
| 73,5° x 40° (with EW lens) | |
| Color temperature range | 2.000-10.000K |
| CRI/Ra | 80 |
| Efficancy (max) | 43,56 lm/W |
| Luminous flux | 2.831 lm |
| illuminance Lux @ 3m (with VN lens) | 2710lx |
| illuminance Lux @ 3m (with N lens) | 1550lx |
| illuminance Lux @ 3m (with M lens) | 550lx |
| illuminance Lux @ 3m (with W lens) | 305lx |
| illuminance Lux @ 3m (with EN lens) | 930lx |
| illuminance Lux @ 3m (with EW lens) | 640lx |
Dimensions & Weight
| IP class | IP65 |
| Body material | Aluminum, Nylon |
| Lens material | Tempered glass front |
| Net dimensions (w x h x d) | 170 x 273 x 230mm |
| Net dimensions inches | 6,69 x 10,75 x 9,06 inches |
| Physical Head Straight Up Height | 310mm (12,20 inches) |
| Net weight (incl. Yoke) | 4,85 kg (10,69lbs) |
| Tilt | 360° |
| Tilt Locking System | Locking system with angle indicator |
Electrical Data
| AC Power, max | 90 – 285V 50/60Hz |
| AC Power, nominal | 100 – 240V 50/60Hz |
| Electrical protection | Overload protection with automatic recover |
| Max Inrush Current | 1,102A |
| Max power consumption | 110W |
| Standby power | 5,5W |
| Max Power thru @ 100 V | 11A |
| Max power thru @ 230 V | 11A |
| Power Factor | 0.853 PF (230V) / 0.988 PF (120V) |
| Power Supply Unit | Inbuilt auto-ranging electronic switch-mode |
| Power Linking | 12 units @ 120 V; 22 units @ 230 V |
| Battery | 217Wh / Lithium-Ionen including BMS |
| Lifetime | 70% after 300 cycles |
| Battery Run Time | up to 24 hours |
| Charging Time (nominal) | 5h |
Operator & Controller
| DMX Functions | Dimmer, Dimmer Fine, Shutter, Duration, Hue, Saturation, Red, Red Fine, Green, Green Fine, Blue, Blue Fine, Lime, Lime Fine, CCT, Tint, Color Macro, Color Macro Crossfade, Device Settings |
| DMX channels | 3CH CCT, 3CH RGB, 6CH RGB, 9CH RGB, 11CH RGB, 14CH RGB, 4CH DIRECT, 8CH DIRECT, 11CH DIRECT, 16CH DIRECT, 3CH HSI, 10CH HSI |
| DMX modes | 12 |
| Protocol | CRMX, W-DMX™ G2, W-DMX™ G3, W-DMX™ G4, W-DMX™ G4S |
| USITT DMX512A | |
| RDM ANSI E1.20 | |
| Bluetooth Low Energy (BLE) | |
| Setting and addressing | OLED graphical display / 4 controls |
| RDM ANSI E1.20 | |
| Standalone mode | Auto Program, Editor, Color Macro, Quick Color, Tunable White, User Color, Timer |
| Wireless DMX | Lumenradio with RDM (CRMX) |
| Indicator | OLED graphical display |
| Controls | 4 touch sensitive, backlighted controls |
| Strobe | 0-20Hz |
| DMX I/O | IP65 XLR 5-pin male/female |
| Power In | TRUE1 compatible input & link-thru sockets |
Installation
| Mounting point on fixture | 1 x two quarter-turn locking points for optional Omega Bracket, centric hole 13mm (1/2″), 2x extra holes for TV Spigot |
| Orientation | Any |
| Rigging possibilities | Hanging or ceiling / pendant mount (Pendant blind caps included) |
| Safety features | rear mount for safety wire |
| Minimum distance from flammable materials | 0,3 meters (11,8 inch) |
Thermal Characteristics
| Cooling | convection cooling |
| Humidity (max.) | 95% |
| Temperature range, Operating on Battery | -20°C to 40°C |
| Temperature range, Start-Up on Battery | -20°C to 40°C |
| Temperature range, Operating on AC Power Supply | 0°C to 40°C |
| Temperature range, Start-Up on AC Power Supply | 0°C to 40°C |
| Temperature range, Storage | -10°C to 25°C |
| Temperature range, Charging | 0°C to 40°C |
| Thermal Protection | Automatic overtemperature protection |
Compliance
| CE – 2014/30/EU: EMC Directive |
| EN 55103-2 |
| EN 55015 |
| EN 61547 |
| EN 61000-3-2 |
| EN 61000-3-3 |
| EN 55032 |
| CE – 2014/35/EU: Low Voltage Directive |
| EN 60598-1 |
| EN 60598-2-17 |
| EN 62471 |
| EN 60529 |
| RoHS2 Directive |
| 2011/65/EU |
| ETL C/US |
| FCC |
| UKCA |
