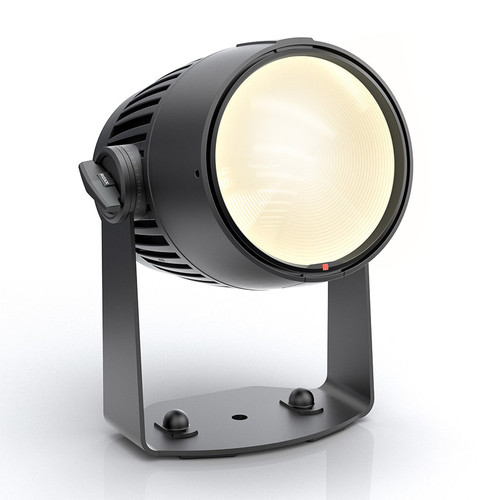

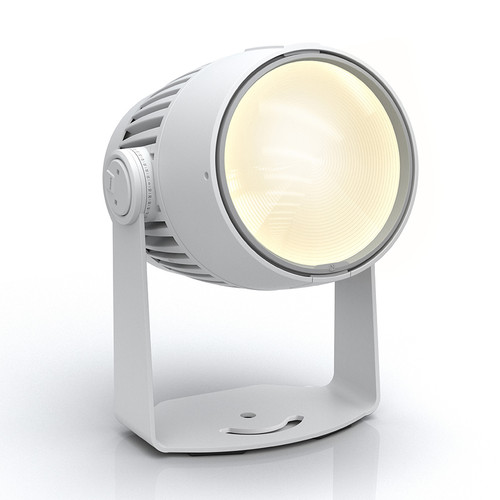

Roxx 11401001 B.SHOW Mini TW+
Halfsized but packed with power
With the SHOW mini series, ROXX® continues to fulfill the demand for very high performance, weatherproof lighting fixtures for entertainment and architectural applications, in addition to a major new addition, a battery version. The flexibility and variety of options previously offered in terms of light quality, size and accessories is now even more pronounced, giving customers that special extra bit of freedom of choice.
SHOW mini, the little brother of the SHOW Series.
1 Lithium-ion battery powered
Say goodbye to cable chaos with the new standard battery fixture for ultimate flexible usage without compromise. The powerful lithium-ion battery ensures reliable operation and a runtime of up to 24 hours. The integrated battery management system protects against deep discharge and overcharging.
2 The Fixture
TW+ Version
Whether stage, trade fair, corporate, theatre, broadcast or film, the B.SHOW mini TW+ convinces in every sort of application with excellent whites and a wide color range. The central, bundled 6 color LED, which was specially developed for this application, produces a very balanced and luminous light without color shadows.
Perfect Tunable White
With colors red, green, blue, amber, lime and cyan the ROXX® 6 color LED engine produces a massive light luminosity with very high color rendering for up to 97 CRI/Ra and 98 TLCI. This excellent reproduction quality is available across the entire white spectrum of 2.000-10.000 Kelvin, ensuring perfectly natural colors. The color temperature can be easily adjusted via +/- green function and magentashift.
Color Range
The additional use of amber, lime and cyan extends the color spectrum by 15%, thus significantly increasing the color variety of the ROXX® B.SHOW mini TW+.
ROXX Color Calibration
ROXX® Color Calibration ensures excellent white tones (CCT 2.000-10.000K), precisely on the black body curve. It also performs color matching over the entire range, ensuring uniform colors across all ROXX® fixtures. The special ROXX® algorithm enables a user-friendly control of the 6 color LED via only three channels, both in RGB or HSI mode.
SPECIFICATIONS
Photometrics
| LED expected lifetime | 50.000 hours |
| Lightsource | 1x 60W RGBALC |
| Type of optical system | Reflector + interchangeable lens plate |
| LED PWM Frequency | selectable 800Hz, 1.200Hz, 2.000Hz, 3.600Hz, 12kHz, 25kHz |
| Beam angles (50%) | 14° (with VN lens) |
| 23° (with N lens) | |
| 35° (with M lens) | |
| 52° (with W lens) | |
| 30° x 15° (with EN lens) | |
| 46° x 17,5° (with EW lens) | |
| Maximum Field angles (10%) | 25° (with VN lens) |
| 43° (with N lens) | |
| 69° (with M lens) | |
| 86° (with W lens) | |
| 58° x 34° (with EN lens) | |
| 73,5° x 40° (with EW lens) | |
| Color temperature range | 2.000-10.000K |
| CRI/Ra | 93 |
| TLCI | 96 |
| Efficancy (max) | 41,88 lm/W |
| Luminous flux | 2868lm |
| illuminance Lux @ 3m (with VN lens) | 2960lx |
| illuminance Lux @ 3m (with N lens) | 1798lx |
| illuminance Lux @ 3m (with M lens) | 603lx |
| illuminance Lux @ 3m (with W lens) | 320lx |
| illuminance Lux @ 3m (with EN lens) | 1056lx |
| illuminance Lux @ 3m (with EW lens) | 736lx |
Dimensions & Weight
| IP class | IP65 |
| Body material | Aluminum, Nylon |
| Lens material | Tempered glass front |
| Net dimensions (w x h x d) | 170 x 273 x 230mm |
| Net dimensions inches | 6,69 x 10,75 x 9,06 inches |
| Physical Head Straight Up Height | 310mm (12,20 inches) |
| Net weight (incl. Yoke) | 4,85 kg (10,69lbs) |
| Tilt | 360° |
| Tilt Locking System | Locking system with angle indicator |
Electrical Data
| AC Power, max | 90 – 285V 50/60Hz |
| AC Power, nominal | 100 – 240V 50/60Hz |
| Electrical protection | Overload protection with automatic recover |
| Max Inrush Current | 1,102A |
| Max power consumption | 110W |
| Standby power | 5,5W |
| Max Power thru @ 100 V | 11A |
| Max power thru @ 230 V | 11A |
| Power Factor | 0.853 PF (230V) / 0.988 PF (120V) |
| Power Supply Unit | Inbuilt auto-ranging electronic switch-mode |
| Power Linking | 12 units @ 120 V; 22 units @ 230 V |
| Battery | 217Wh / Lithium-Ionen including BMS |
| Lifetime | 70% after 300 cycles |
| Battery Run Time | up to 24 hours |
| Charging Time (nominal) | 5h |
Operator & Controller
| DMX Functions | Dimmer, Dimmer Fine, Shutter, Duration, Hue, Saturation, Red, Red Fine, Green, Green Fine, Blue, Blue Fine, Lime, Lime Fine, CCT, Tint, Color Macro, Color Macro Crossfade, Device Settings |
| DMX channels | 3CH CCT, 3CH RGB, 6CH RGB, 9CH RGB, 11CH RGB, 14CH RGB, 6CH DIRECT, 12CH DIRECT, 13CH DIRECT, 20CH DIRECT, <3CH HSI, 10CH HSI |
| DMX modes | 12 |
| Protocol | CRMX, W-DMX™ G2, W-DMX™ G3, W-DMX™ G4, W-DMX™ G4S |
| USITT DMX512A | |
| RDM ANSI E1.20 | |
| Bluetooth Low Energy (BLE) | |
| Setting and addressing | OLED graphical display / 4 controls |
| RDM ANSI E1.20 | |
| Standalone mode | Auto Program, Editor, Color Macro, Quick Color, Tunable White, User Color, Timer |
| Wireless DMX | Lumenradio with RDM (CRMX) |
| Indicator | OLED graphical display |
| Controls | 4 touch sensitive, backlighted controls |
| Strobe | 0-20Hz |
| DMX I/O | IP65 XLR 5-pin male/female |
| Power In | TRUE1 compatible input & link-thru sockets |
Installation
| Mounting point on fixture | 1 x two quarter-turn locking points for optional Omega Bracket, centric hole 13mm (1/2″), 2x extra holes for TV Spigot |
| Orientation | Any |
| Rigging possibilities | Hanging or ceiling / pendant mount (Pendant blind caps included) |
| Safety features | rear mount for safety wire |
| Minimum distance from flammable materials | 0,3 meters (11,8 inch) |
Thermal Characteristics
| Cooling | convection cooling |
| Humidity (max.) | 95% |
| Temperature range, Operating on Battery | -20°C to 40°C |
| Temperature range, Start-Up on Battery | -20°C to 40°C |
| Temperature range, Operating on AC Power Supply | 0°C to 40°C |
| Temperature range, Start-Up on AC Power Supply | 0°C to 40°C |
| Temperature range, Storage | -10°C to 25°C |
| Temperature range, Charging | 0°C to 40°C |
| Thermal Protection | Automatic overtemperature protection |
Compliance
| CE – 2014/30/EU: EMC Directive |
| EN 55103-2 |
| EN 55015 |
| EN 61547 |
| EN 61000-3-2 |
| EN 61000-3-3 |
| EN 55032 |
| CE – 2014/35/EU: Low Voltage Directive |
| EN 60598-1 |
| EN 60598-2-17 |
| EN 62471 |
| EN 60529 |
| RoHS2 Directive |
| 2011/65/EU |
| ETL C/US |
| FCC |
| UKCA |
