Product Description

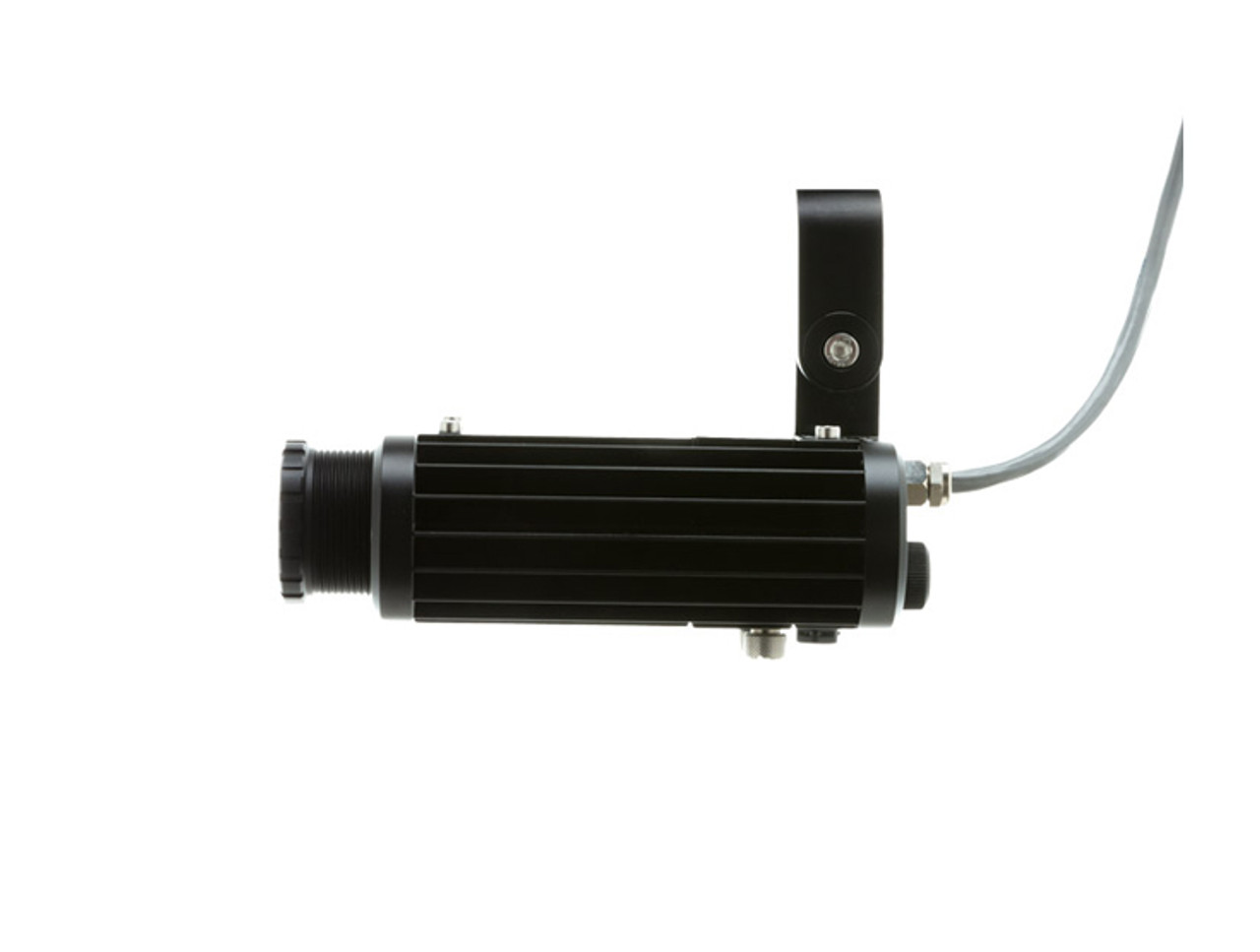

Rosco Image Spot Mini 5500K Track Adaptor, DMX, Black, No Lens; Part #2962010T5503
Overview
Don’t let its diminutive size fool you, the Image Spot Mini produces an impressive amount of light! This ultra-compact gobo projector provides almost twice as much output as fixtures twice its size.
Featuring a single, brilliant LED and highly efficient optics, the Image Spot Mini is capable of producing brilliant gobo projection up to 26 feet (8m) away!
The Image Spot Mini is IP65-rated, enabling it to be used indoors and outdoors, and it’s available in 3000K warm white, 5500K cool white, and track-mounted models.
Please note that the Image Spot Mini requires an external power supply for operation and does not ship with a lens.
What’s In The Box:
- Image Spot Mini LED gobo projector
- User Guide
- Image Spot Welcome Pack
- 4mm Hex Driver
Specifications
Input Voltage: 14VDC , 1.0A
Power Consumption: 14 Watts at maximum output
Color Temperature Options: 5500K or 3000K
Output:
- 5500K Model: 400 lumens
- 3000K Model: 300 lumens
CRI:
- 3000K Model: 98+
- 5500K Model: 75+
Lumen Maintenance: 90,000 hours at 50°C (LM80)
Power/Data Connection: 6 ft. (2m) Insulated Cable/Gland (IP65), unterminated (connector not included)
Dimensions: 4.7in x 3.4in x 1.9in (119mm x 84.2mm x 48mm) excluding yoke
Weight: 2.2 lbs (1.0 kg)
Operating Temperature: -13° F to 113° F (-25° C to 45° C)
IP Rating: IP65
Humidity: 0 - 95% non-condensing
Housing: Anodized Aluminum Extrusion
Approvals:
- ETL / UL Standards #2108:2015
- cETL / CSA C22.2#250.0:2018 Ed.4
- CE
