Product Description
RF Venue D-OMNID9 DISTRO9 HDR Antenna Distribution System and Diversity Omni Antenna Bundle
Overview

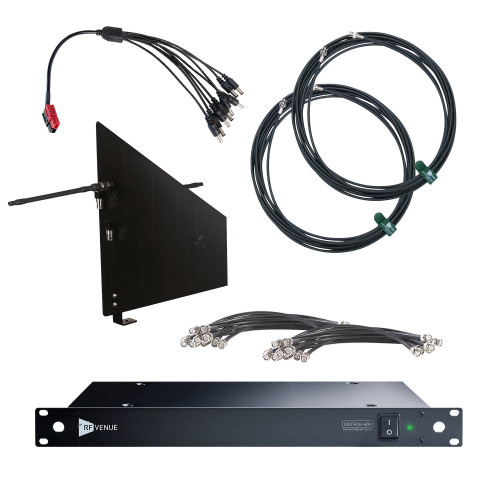

This RF Venue bundle includes one DISTRO9 HDR 9-channel antenna distribution system, one D-OMNI Diversity Omni antenna for wireless microphones, two RG8X25 25-foot coaxial cables with BNC (male) connectors, two RG8X1.5-10 10-pack of 1.5-foot interconnect cables, and one DC-KIT-D9 DC power distribution cable kit for DISTRO9 HDR.
Features
DISTRO9 HDR Antenna Distribution System
- Highest-quality RF signal distribution for wireless microphones
- Nine low-noise channels of diversity wireless
- Low-noise figure amplifiers and superior gain structure provide over 60 dB of dynamic range across the spectrum
- Any output can be cascaded to a second DISTRO9 HDR for up to 17 wireless microphone channels in just two units of rack space
- Two zones of antenna coverage
- Superior gain flatness and stability across VHF low, VHF high, T-Band, UHF, and 900 MHz ranges
- Dedicated DC power port for receivers and accessories
D-OMNI Diversity Omni Antenna
- Designed for omnidirectional coverage of wireless microphones
- Features two antennas on a single stand to capture both horizontally and vertically polarized signals
- Ideal for multizone projects where wireless microphones may move between rooms, or outdoors where wide areas of coverage are needed
- Allows receivers to pick up a constant signal regardless of the microphone’s orientation to the antenna
- Requires no external power
- Works with all wireless brands, analog and digital, between 470 and 616 MHz
RG8X25 25-Foot Coaxial Cable
- Premium low-loss RG8X coaxial cable with BNC (male) connectors
- Double-shielded (braid over foil) design
- 25' (7.6 m)
RG8X1.5-10 Premium BNC Interconnect Cable 10-Pack
- RF Venue Certified Interconnect Cable offers improved system performance
- RG8X1.5-10: 1.5' (0.5 m) long cable
- Tough, crush- and kink-resistant jacket
- 100% braid-over-foil shield
- Very low loss
- May be used in transmit or receive applications
