Product Description

RF Venue COMB8CP-ARC CP Architectural Antenna and COMBINE8

Overview

Run up to eight channels of rock-solid IEM transmission that delivers superior audio and an aesthetic to fit any space with COMB8CP-ARC. The bundle includes an 8-channel transmitter combiner, an architectural antenna, and a 25-foot coaxial cable. The RF Venue CP Architectural Antenna is a high-performance solution for permanent installation in-ear monitor systems (IEMs) that offers an ideal combination of aesthetics and rock-solid signal coverage. Its slim profile design allows for easy installation on walls or ceilings, with the option to paint it to match any interior style. Featuring a unique circularly polarized design, the CP-ARC provides excellent coverage and eliminates common signal dropout issues while reducing noise and interference from other sources. Installation takes only minutes, thanks to the pre-drilled mounting hole on the rear plate and standard BNC connection to your existing installed coaxial cable. Plus, its sleek industrial design enclosure fits any interior design. The COMBINE8 IEM Transmitter Combiner makes it easy to streamline your multi-channel system by combining up to eight in-ear monitor signals into a single rear panel-mounted antenna connector. It's compatible with any brand or type of IEM and also provides DC power to reduce cable clutter and eliminate wall warts. The maximum input power of 100mW ensures optimal performance while the unit mitigates potential issues caused by intermodulation issues arising from multiple adjacent antennas interfering with one another.

Features

• Combines up to 8 channels of wireless IEM
• Blends into any background
• Doesn't Drop Out
• Designed specifically for IEMs
• Circularly polarized performance in a sleek package

Includes

• CP-ARC
• Combine8

Specifications

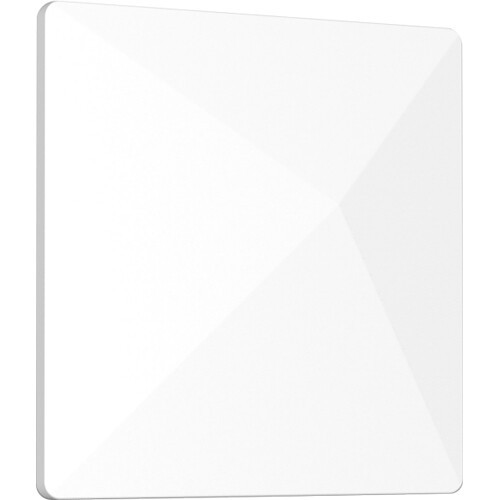

• CP-ARC
  • Operating frequency: 400–800 MHz
  • Bandwidth: 400 MHz
  • Average return loss: 10 dB
  • Impedance: 50Ω
  • Pattern type: Flood
  • Polarization: RHCP
  • Beam width: 120°
  • Gain @ 500MHz: 2.5dBi
  • Dimensions: 280X280X50mm / 11” X 11” X 2”
  • Weight: 0.9 kg / 2 lbs
  • Mount location: wall or ceiling
  • Operating temperature: -10–40°C / 14–104°F
  • Color: White
  • Connector(s): BNC female
• Combine8
  • Frequency Range: 470-608 MHz
  • Input Connectors: 8x BNC
  • Full System Gain: 0 dB (+_2 dB)
  • Max RF Input Power: +18 dBM (60mW)
  • LED Indicator (input signal threshold) >+5 dBM (threshold power)
  • Power Consumption: 36W
  • Input AC Voltage: 100-240 VAC, 50/60 Hz, Max 1.5A
  • Dimensions (WxHxD): 18.90" x 1.77" x 10.24" (480 x 45 x 260 mm)
  • Weight: 8.16 lbs (3.7 Kgs)
