Product Description
RF Venue COMB4CPB COMBINE4 4-Channel Antenna Combiner with CP Beam Antenna and Cable Bundle
Key Features
- 4-Channel Antenna Combiner
- CP Beam Antenna
- For Multi-Channel Wireless IEMs
- RF and DC Power for 4 IEM Transmitters
- Includes BNC Cables and DC Jumpers
- Internal Power Supply
Overview
The COMBINE4 4-Channel Antenna Combiner with CP Beam Antenna and Cable Bundle from RFvenue is an antenna combiner that was developed for cross-brand flexibility for IEM (In-Ear Monitor) systems. The four-channel Radio Frequency (RF) combiner receives four incoming IEM transmitter RF signals and combines them to a single convenient front-panel mounted output connection. The combiner features a high-quality internal power supply and includes DC and RF jumper cables required for four-channel IEM system operation.
The CP Beam Antenna provides high gain for wireless microphones and IEMs in a lightweight, portable package. Unlike other bulky helical antennas which require heavy flight cases, the CP Beam is quickly deployed and stowed, fitting in a 2RU rack drawer and weighing just 2.5 pounds while delivering 9 dBd of gain.
RF Venue COMBINE4 - 4-Channel Antenna Combiner
The COMBINE4 from RFvenue is an antenna combiner that was developed for cross-brand flexibility for IEM (In-Ear Monitor) systems. The four-channel Radio Frequency (RF) combiner receives four incoming IEM transmitter RF signals and combines them to a single convenient front-panel mounted output connection.
The unit features a high-quality internal power supply and includes DC and RF jumper cables required for four-channel IEM system operation.

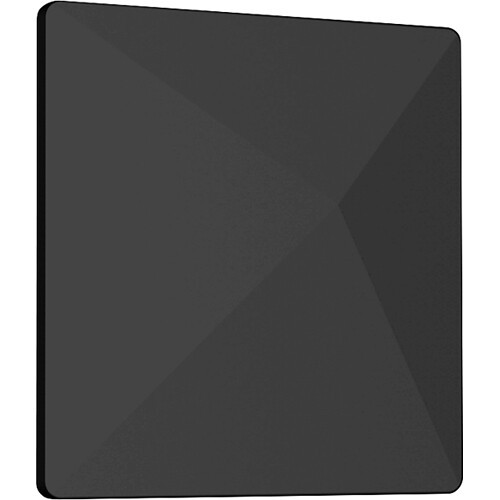

RF Venue CP Beam Antenna
The CP Beam Antenna by RF Venue is a uniquely designed, long-range antenna for wireless microphones and IEM (In Ear Monitoring) systems. Featuring a circularly polarized yet lightweight design, the CP Beam delivers optimal RF performance in a package that folds flat for easy storage and transport. The CP Beam Antenna operates on a wide frequency range of 470 to 698 MHz.
The antenna weighs just 2.5 lb and provides 9 dB of gain making it useful for long-range applications. Widely used on concert tours, it's ideal for outdoor applications. The CP Beam can be connected to any brand of IEM, wireless mic, or UHF intercom.
Specification
| Operating Frequency | 470 to 698 MHz |
| Bandwidth | 228 MHz |
| Average Return Loss | -13.15 dB |
| Impedance (Ohms) | 50 Ohms |
| Pattern Type | Beam |
| Polarization | RHCP |
| Horizontal Axis | Beam Width 63° F/B Ratio -10 dB F/S Ratio -12 dB |
| Vertical Axis | Beam Width 70° F/B Ratio -9 dB F/S Ratio -12 dB Squint < 2 dB Gain 9 dBd |
| Dimensions | 13.9 x 13.9" / 355 x 355 mm |
| Weight | 2.4 lb / 1.1 kg |
| Mount Thread Size | 1/4-20", 3/8-16", 5/8-27" |
| Operating Temperature | -9.4 to 129.2°F / -23 to 54°C |
| Color | Black |
| Connectors | N Female (BNC Supplied) |
