RDL RCX-5C Five Zone Audio Controller for RDL RCX Series Room Combining System
Overview

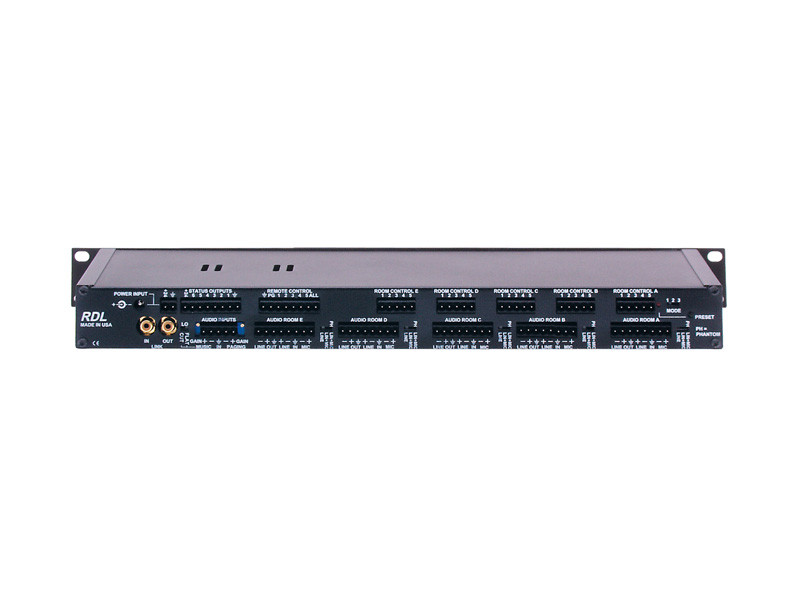

The RDL RCX-5C Controller is a single space, 19-inch rackmounted unit that is designed to route and control audio for up to five separate zones. The RCX-5C is the centralized controller in the RCX room combining system and is a straightforward means of routing audio in commercial office spaces, retail stores, restaurants, bars, medical offices, etc. The front panel features five push-button switches for routing line and microphone audio to and from combined or separate rooms. Five level controls are provided for adjusting audio level in individual rooms. The rear panel features terminal-post input and output connections for line audio, dynamic and condenser microphones.
- Controls audio sources and amplifier inputs for up to 5 rooms
- Music input may be selected from a non-combined room
- Paging input can override normal operation if required
- Simple, straightforward programming and operation
- Programmable to accommodate a wide range of room layouts
- Connects to wall mounted remote input panels
- Mic and/or Line input for each room
- Front-panel volume adjustment per room
- RDL® Dual-LED VU metering for each source
- All electronic switching and gain control with memory
- Two controllers may be linked in larger systems
Power supply must be purchased separately.
The recommended power supply (not included) is the PS-24V3A for the USA and the PS-24V3 for outside of the USA.
Make sure to purchase your US power supply here: https://goknight.com/rdl-ps-24v3a-24-vdc-switching-power-supply-with-dc-plug-no-cord/
Five Room Control
Separate and Combined Audio Routing
Provisions for Dynamic and Condenser Microphones
Specifications
Inputs | 12 Total: 2 Per Room (1 Mic and 1 Line) 1 Background Music 1 Paging (line-level) |
Output | Not Specified By Manufacturer |
Impedance | Line Input: 10k ohms Priority Input: 511 / 14.5k ohms |
Maximum Input Gain | Line: Off to 18dB Line: Off to 25dB Mic: Off to 65dB |
Maximum Output Gain | Outputs: 22 min dBu |
Frequency Response | Line: 15Hz to 20kHz (+/- 0.5dB) Mic: 120Hz to 20kHz (+/- 0.75dB; integral low-cut filter) Music: 10Hz to 18kHz Paging: 20Hz to 7.5kHz |
Hum & Noise | < -80dB (line input, local mode, uncombined) |
Total Harmonic Distortion (THD) | < 0.025% |
Phantom Power | 24VDC selectable on each input |
Power | 24VDC @ 2A |
Dimensions | 19-inch Rackmount |
