Phase Technology CS-6R POINT Point In-Ceiling "Tilt" Speaker
Overview

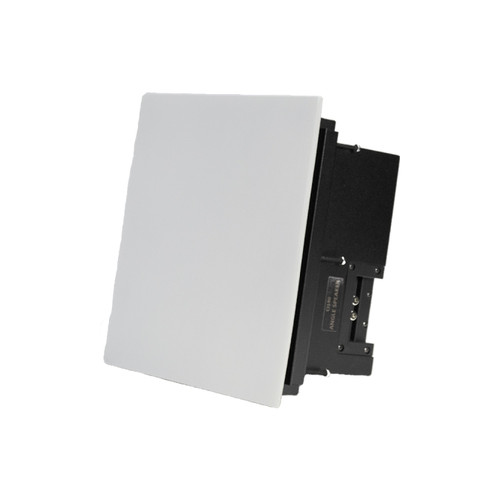

The industry-leading performance and aesthetic design of Phase Technology®'s entry-level CS speakers just got a little more ambitious. The CS-6R Point is an in-ceiling tilt speaker, designed to give you the amiability and performance that a traditional in-room speaker would provide. Featuring a 15°, angled tilt design in a recessed flange, the CS-6R point will provide great sound precisely where you need it while saving you wall space. All CS speakers feature a micro-flange, magnetic grille.
Specifications
| UPC | 748252177278 |
|---|---|
| Manufacturer | Phase Technology |
| Manufacturer's Category | CS Professional Series |
| Depth | 3.4 in / 86.4 mm |
| Width/Diameter | 9.1 in / 231.1 mm |
| Shipping Weight | 4.4 lbs / 2 kg |
| Carton Height | 6 in / 152.4 mm |
| Carton Length | 10.75 in / 273.05 mm |
| Carton Width | 10.75 in / 273.05 mm |
| Enclosure Properties | Infinite Baffle |
| Included Accessories | Grille, Hole Template |
| Optional Accessories | Pre-Construction Bracket (RB21) |
| Source Inputs | Metal Push Binding Posts |
| Cutout Width/Diameter | 8.06 in / 204.8 mm |
| Frequency Response (± 3 dB) | 50 Hz - 20 kHz |
| Grille Properties | Flangeless, Magnetic, Powder-Coated, White, Paintable |
| Mounting Depth | 2.87 in / 73 mm |
| Nominal Impedance (Ω Ohms) | 8 Ω |
| Tweeter Driver | .75" Variable Axis Soft Dome |
| Woofer Driver | 6.5" Coaxial Polypropylene w/ NBR Surround |
| Recommended Power | 5-100 W |
| Sensitivity dB @ 2.83V/1M | 87 dB |
